BEFARD XGR 800

Assembly robot on a tracked chassis for installing windows. Maximum capacity: 800 kg.

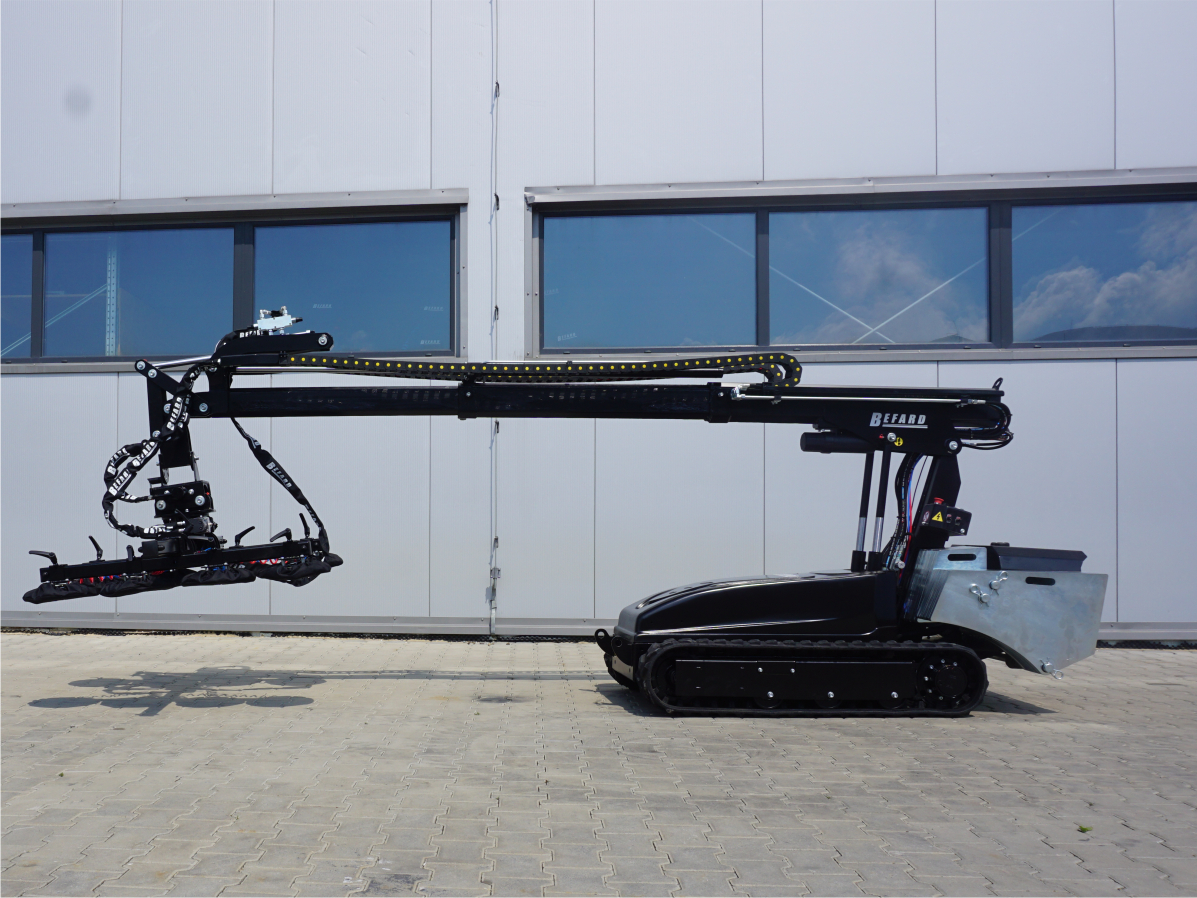

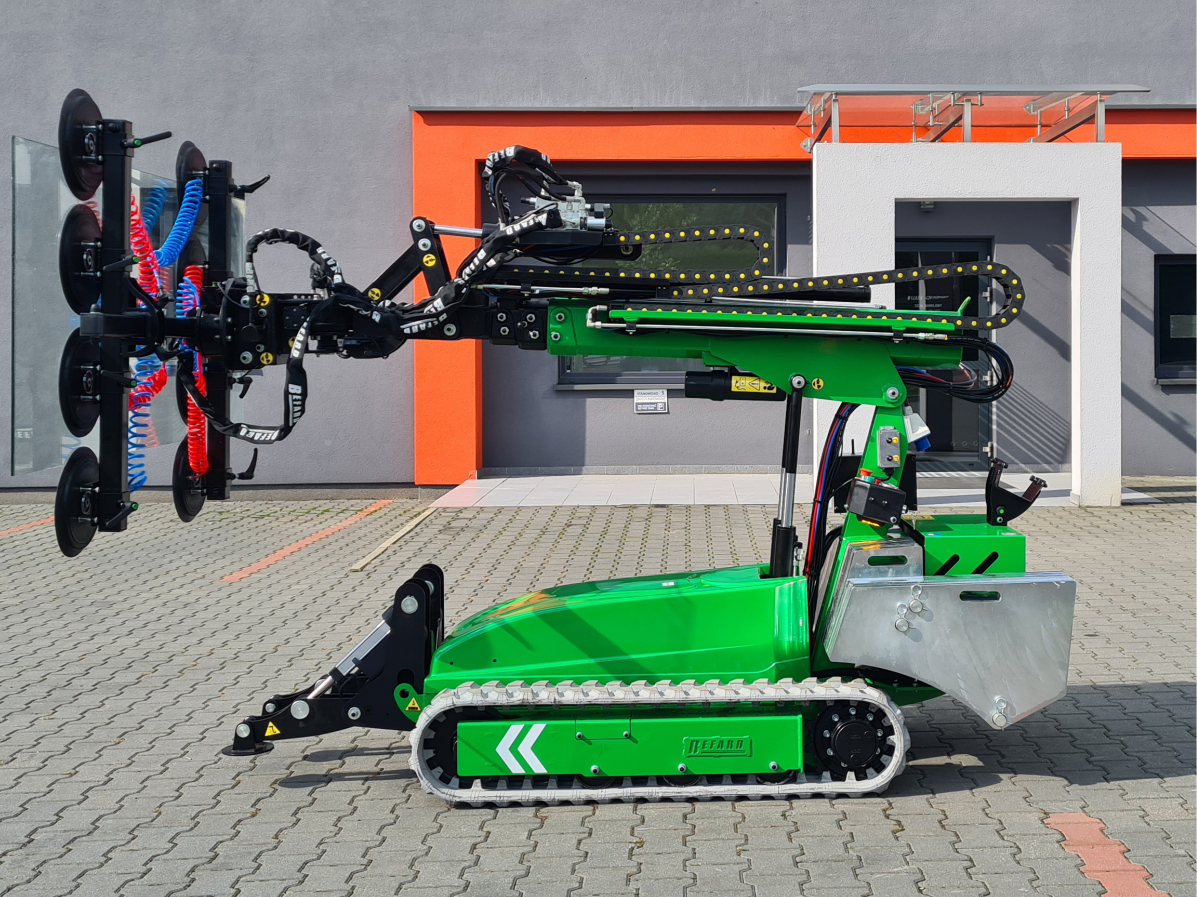

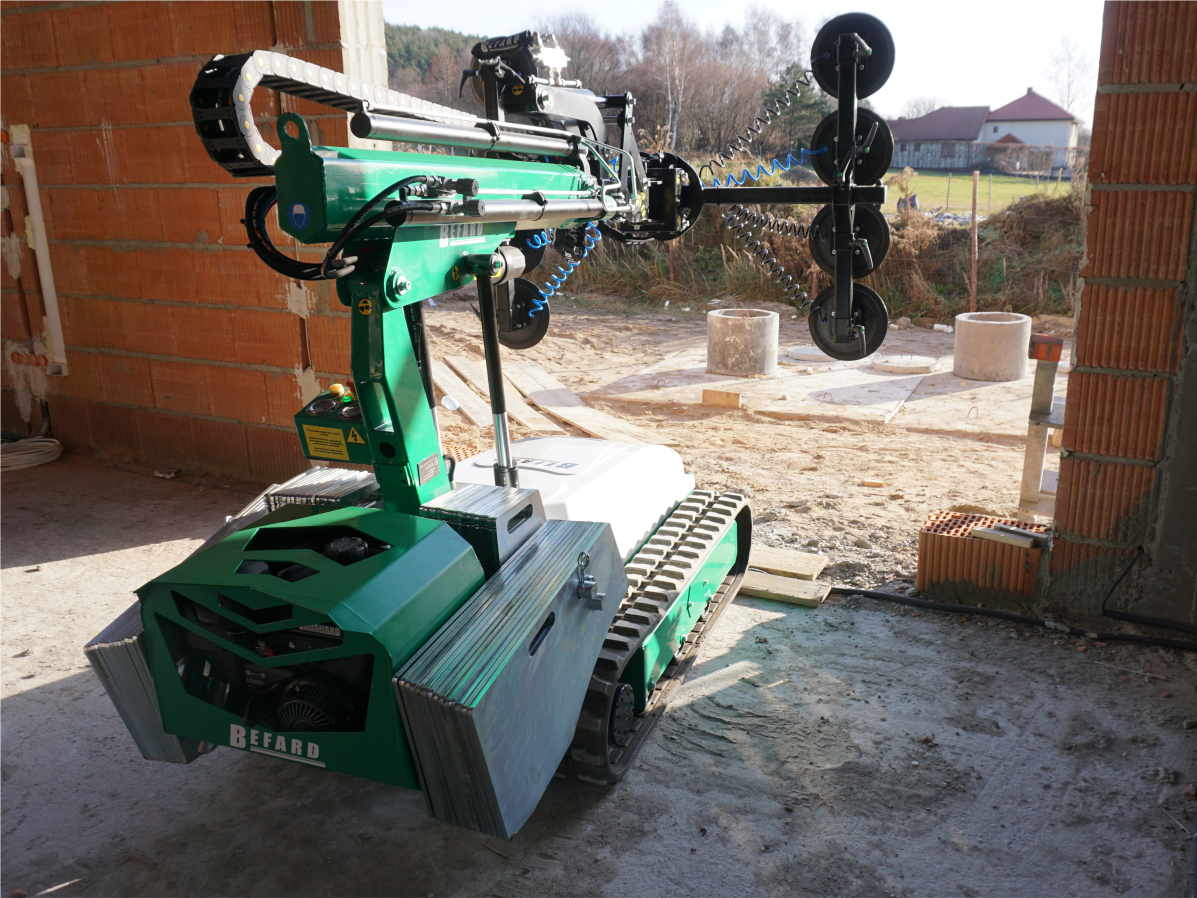

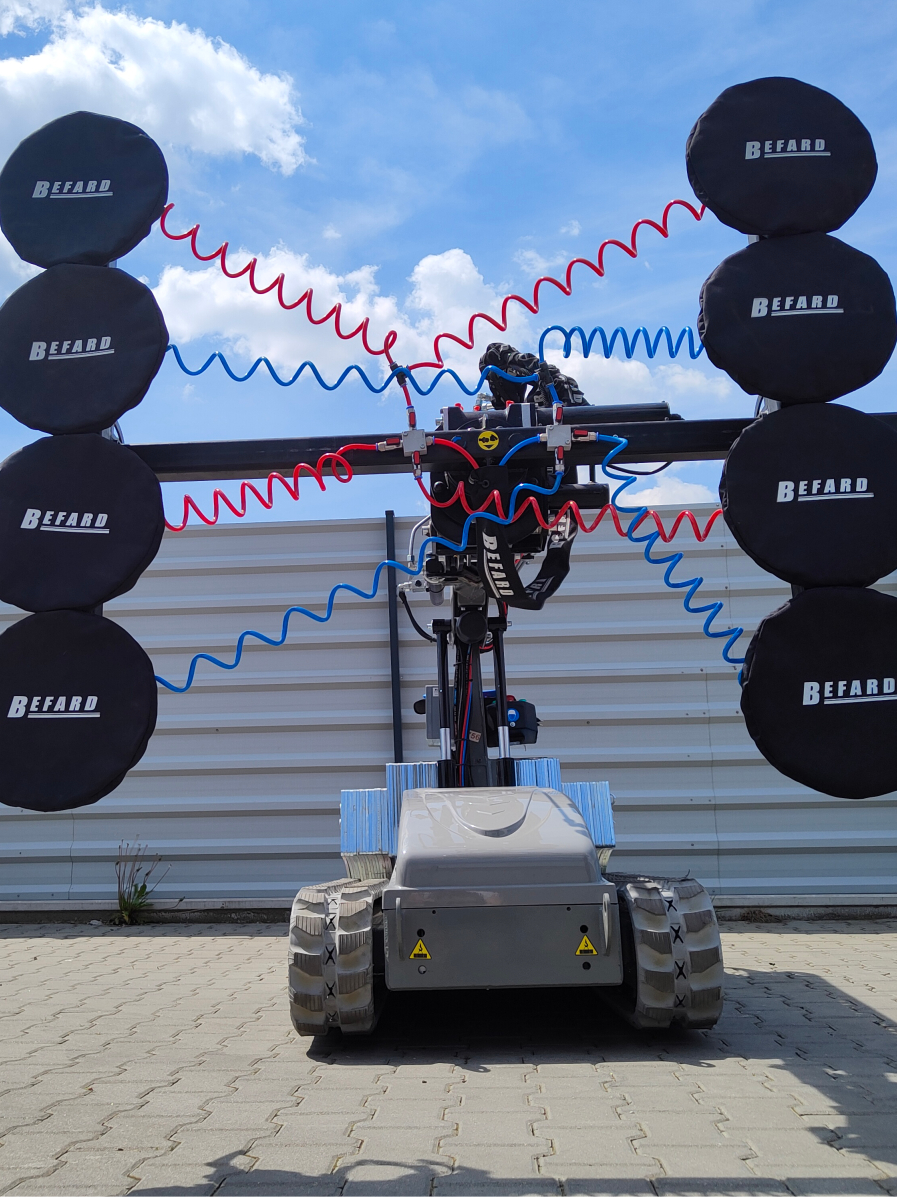

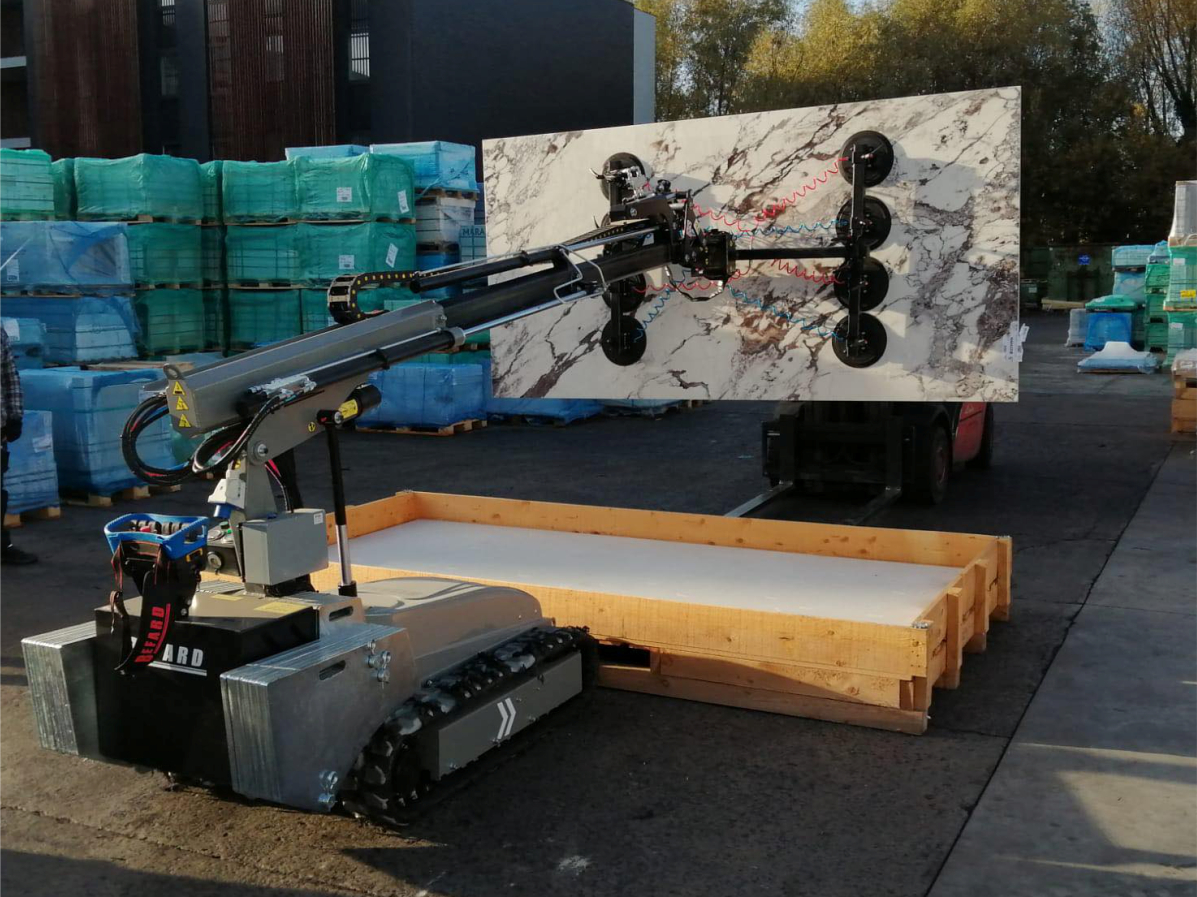

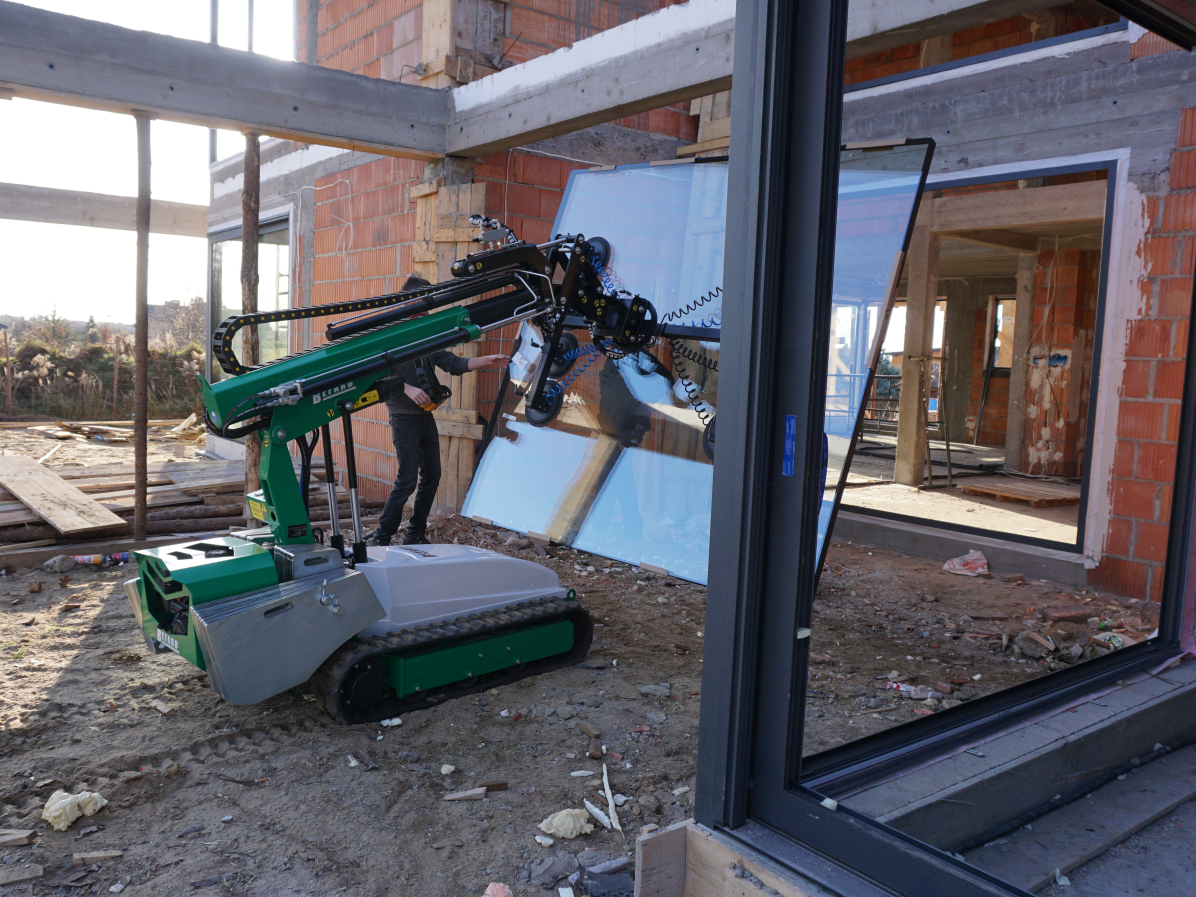

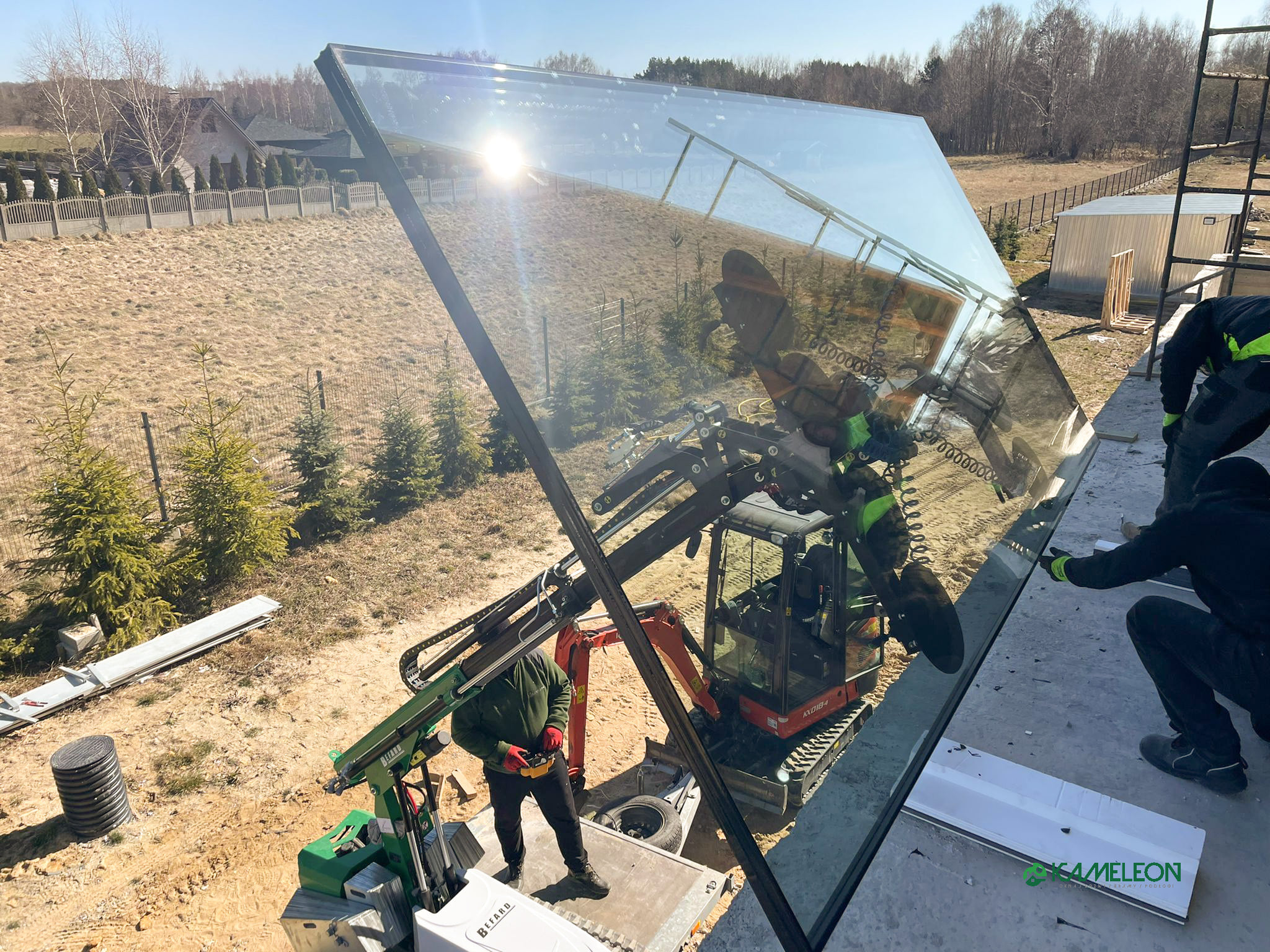

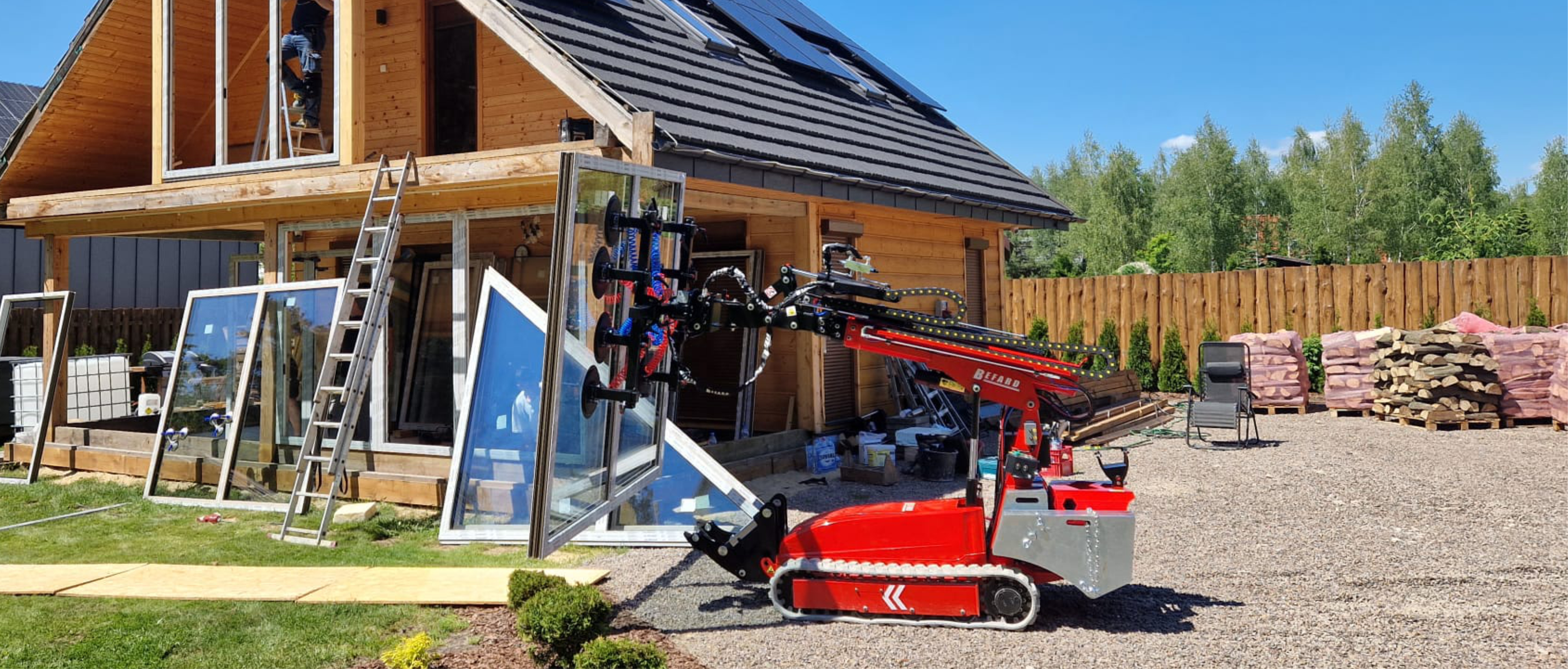

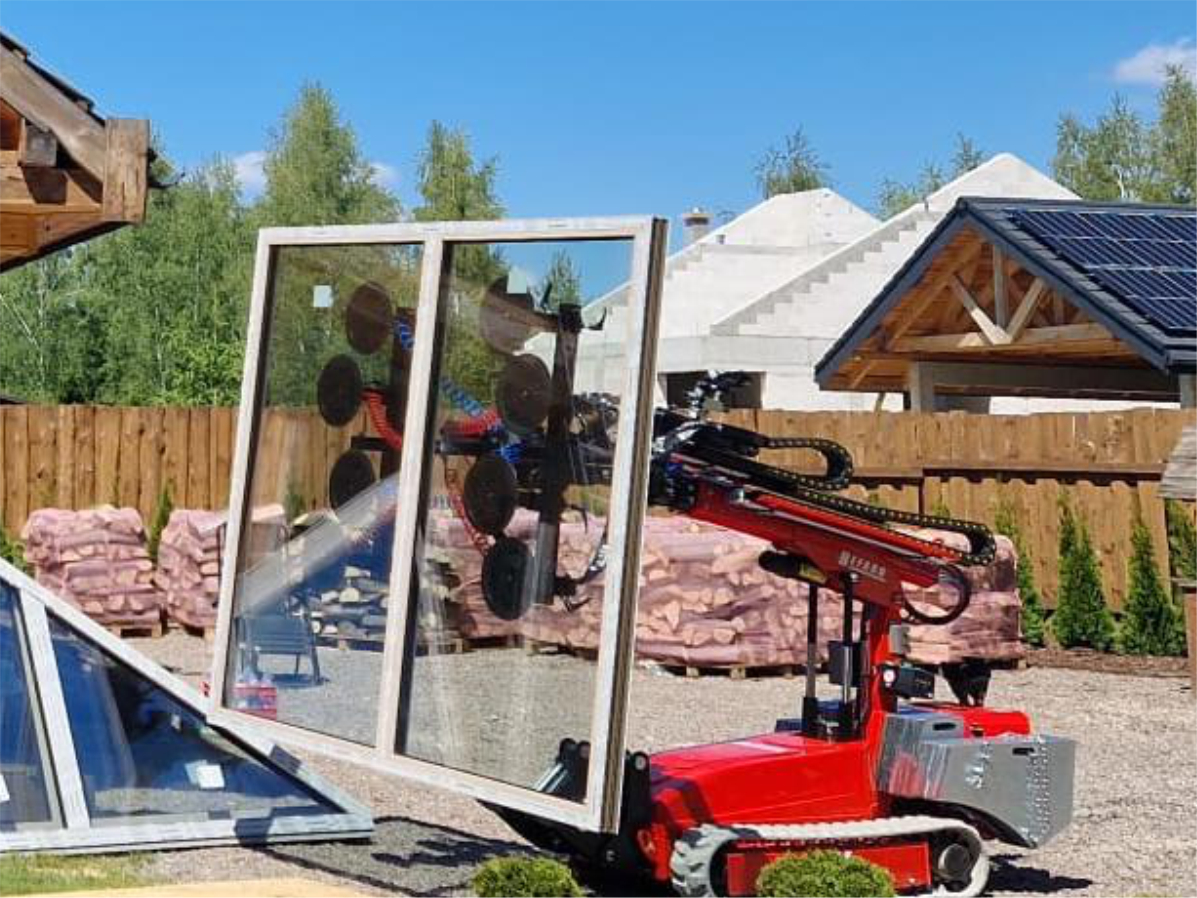

The glass assembly robot BEFARD XGR and XGRe is a manipulator on caterpillars used to assemble heavy glass and windows. It can be equipped with extensions with a range of up to 5.55 m. As standard, it is equipped with radio control - supporting both driving and machine operation.

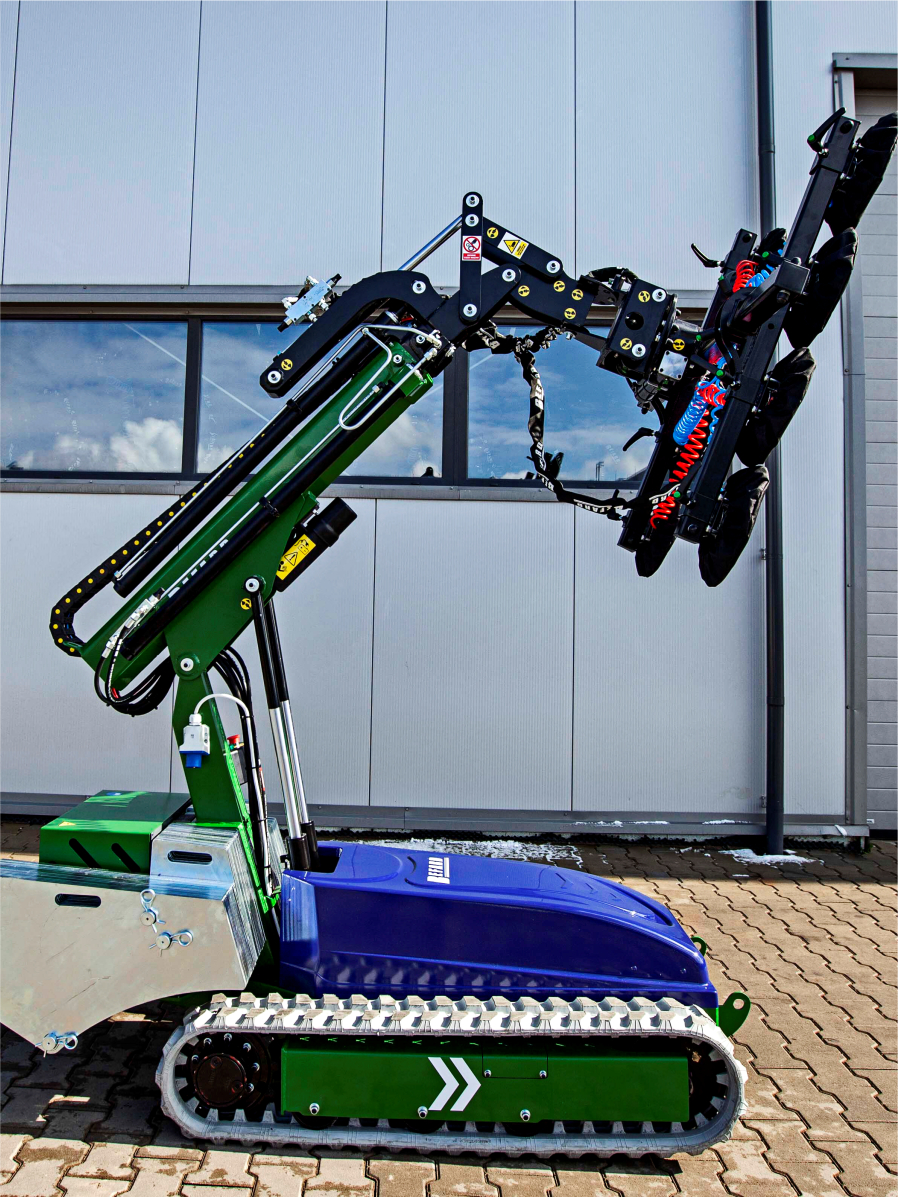

The use of tracked chassis enables operation in difficult construction conditions.

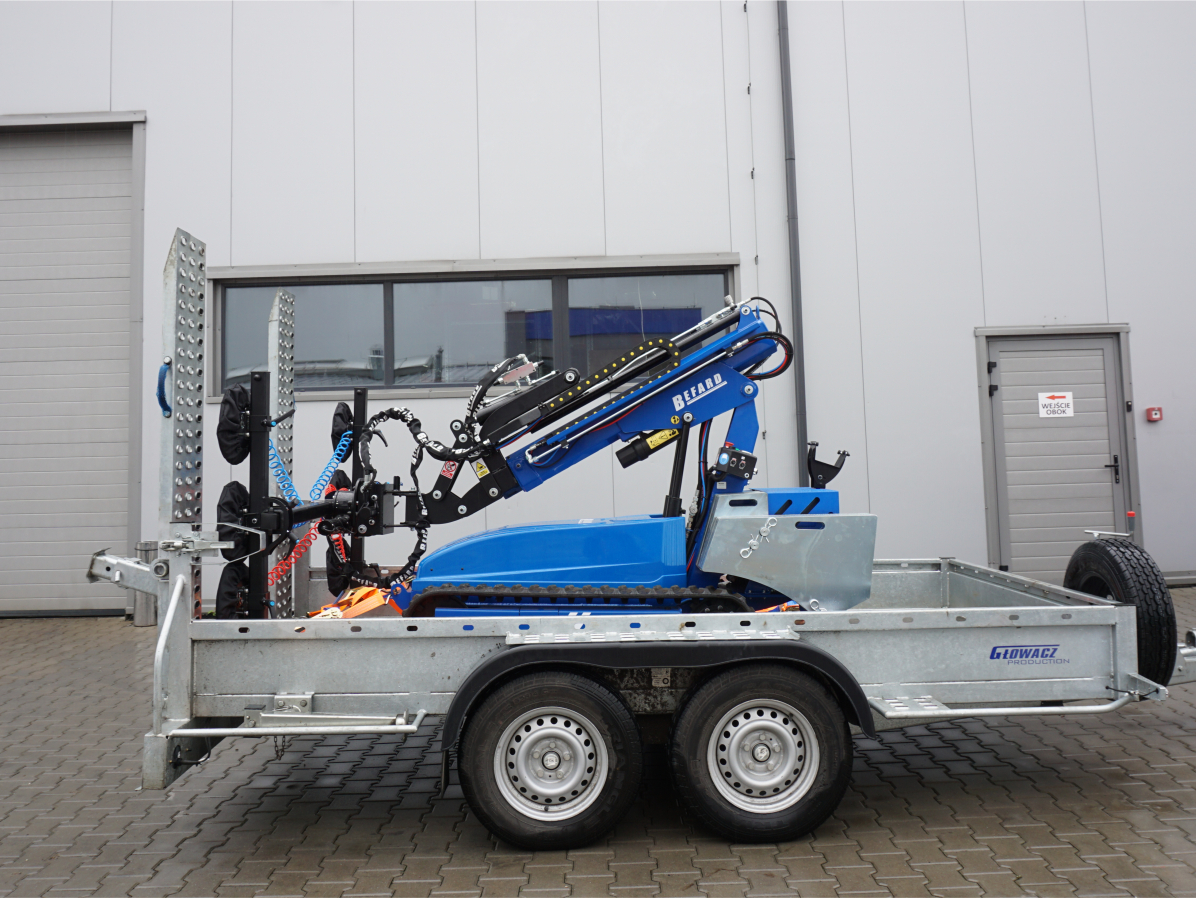

The BEFARD XGR/XGRe vacuum manipulator is available in two versions:
BEFARD XGR - powered by a combustion engine (+ optionally 230V)
BEFARD XGRe - lithium-ion (Li-ion) battery power supply

Download the device data sheet:

pdfBEFARD_XGR-XGRe_ENG.pdf2.95 MB



Specification:

BEFARD XGR800.1800.2800.3
Hydraulic extension x1 x2 x3

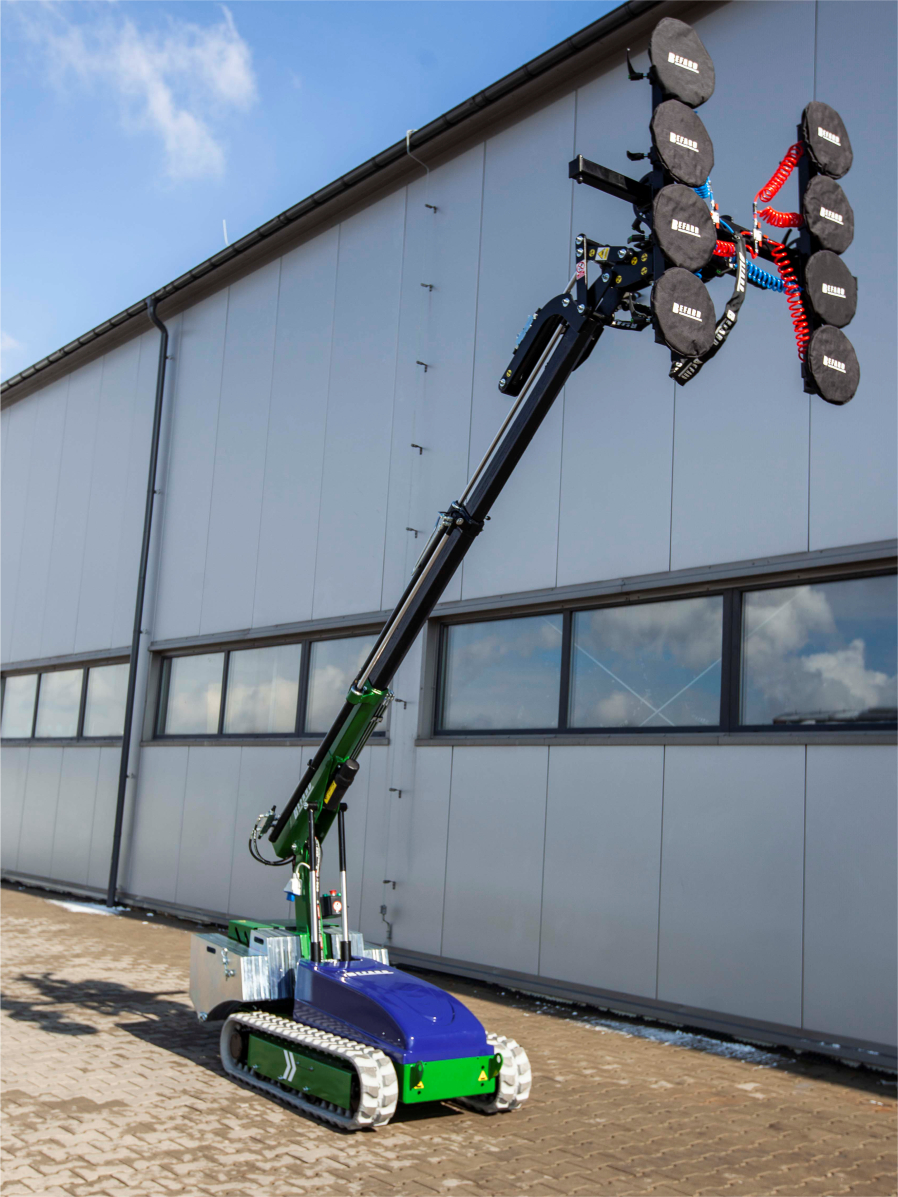

Outreach 3,95m 4,75m 5,55m
Number of suction cups x8 x8 x8

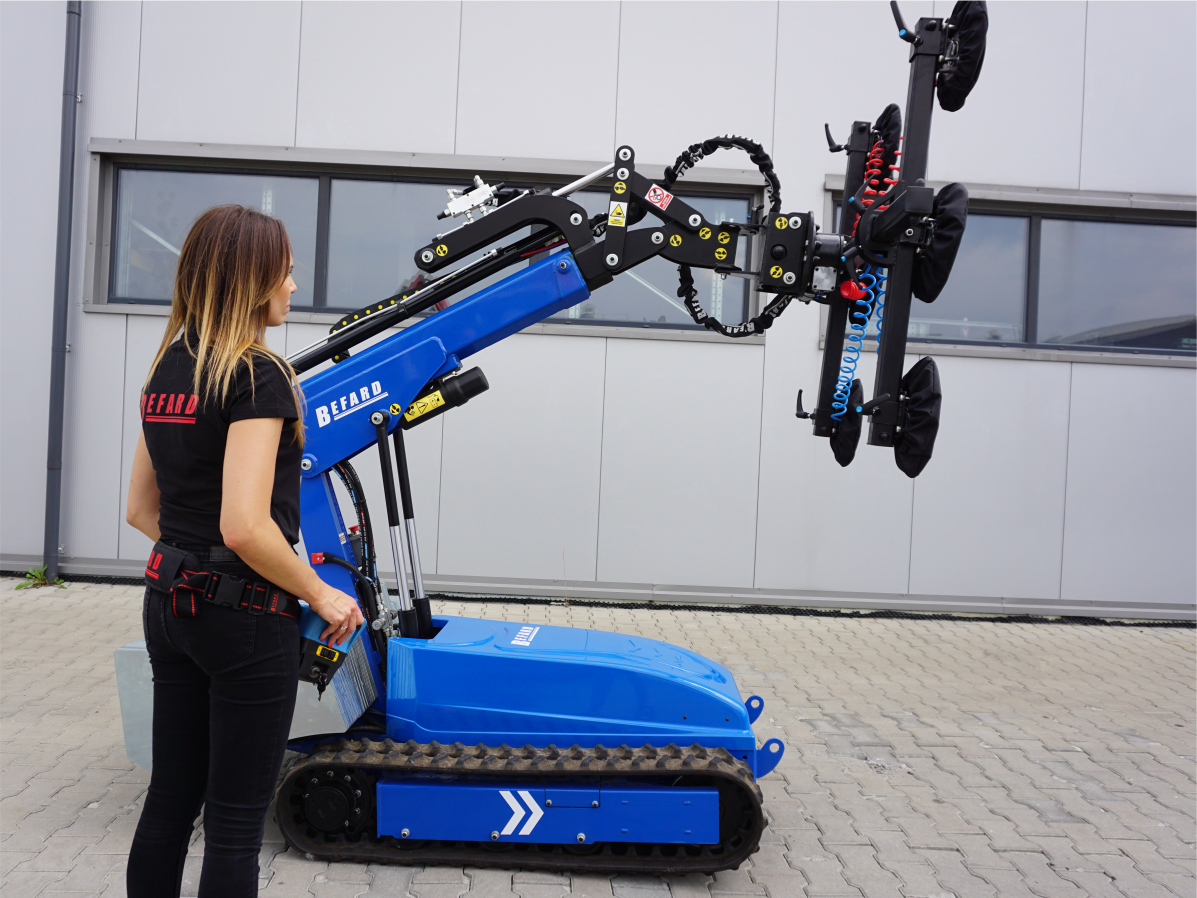

Radio control of the entire device yes yes yes
Two-circuit vacuum system yes yes yes
Maximum hoist capacity 800 kg 800 kg 800 kg
Colour optional optional optional
Swivel frame with suction cups controlled by a remote control controlled by a remote control controlled by a remote control
Suction cup frame lateral movement – hydraulic right/ left - 10cm right/ left - 10cm right/ left - 10cm
Lateral tilting of the suction cups - manually, optionally hydraulically relative to the device relative to the device relative to the device
Tilted frame with suction cups (can lift items from horizontal plane and position them in vertical plane) hydraulic hydraulic hydraulic
Spacers for mounting HS glazing optional optional optional
Power supply 230V (from the socket) for the combustion version optional optional optional
Ability to drive and work on wire (when connected to the network) yes yes yes

The device meets the requirements of the Machinery Directive 2006/42/EC and Directive 2014/30/EU

All BEFARD devices are covered by a 12-month warranty.

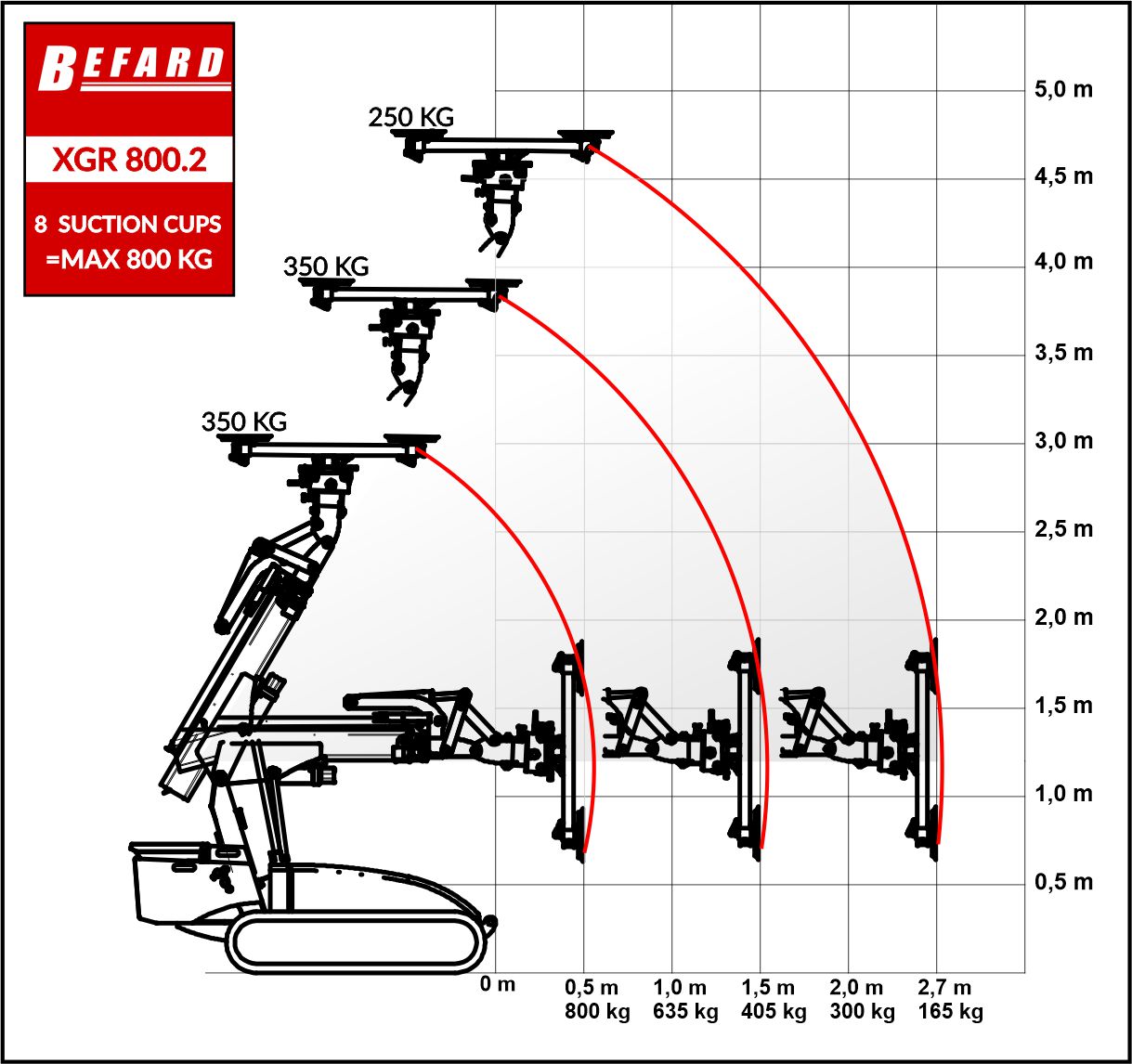

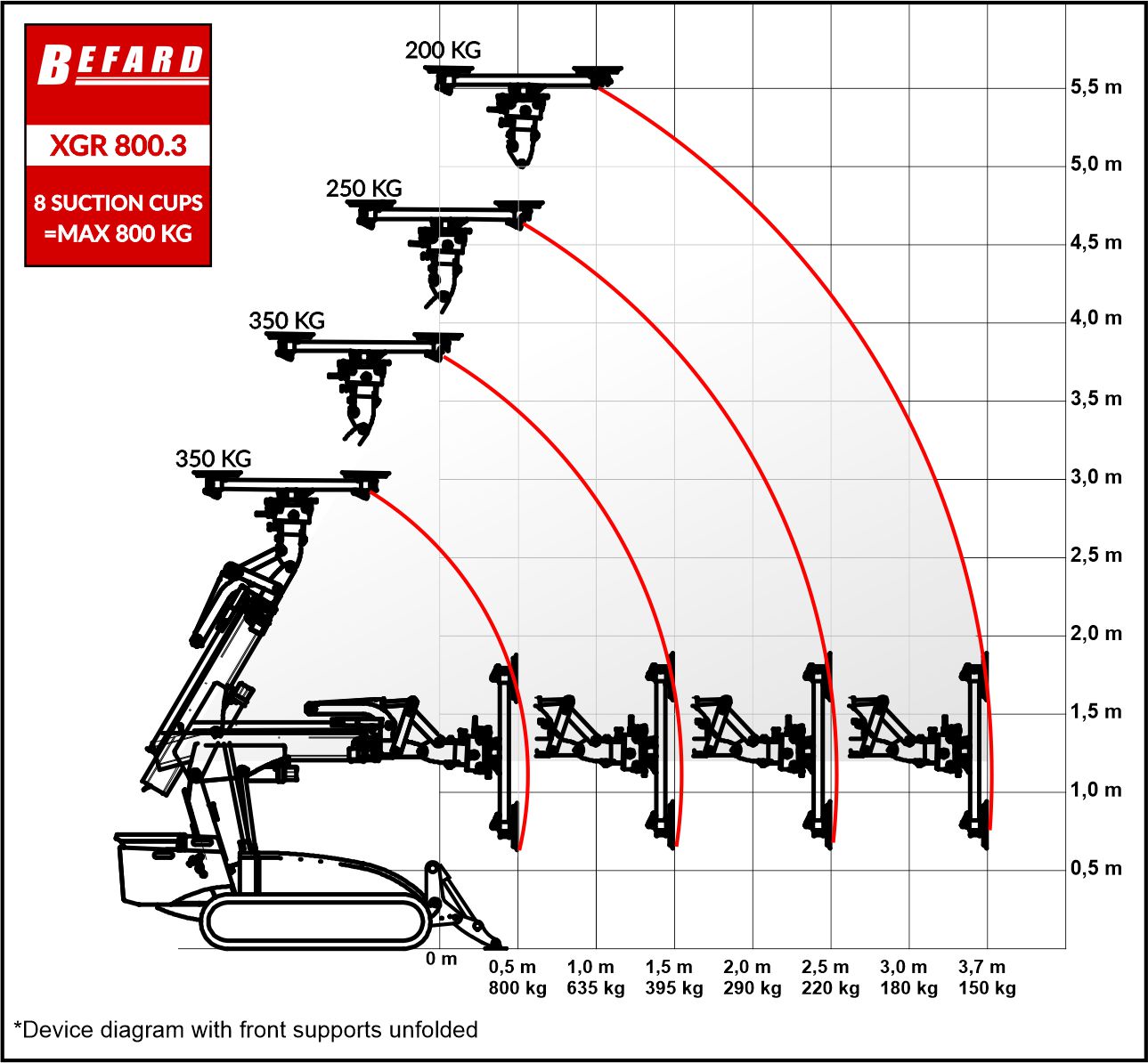

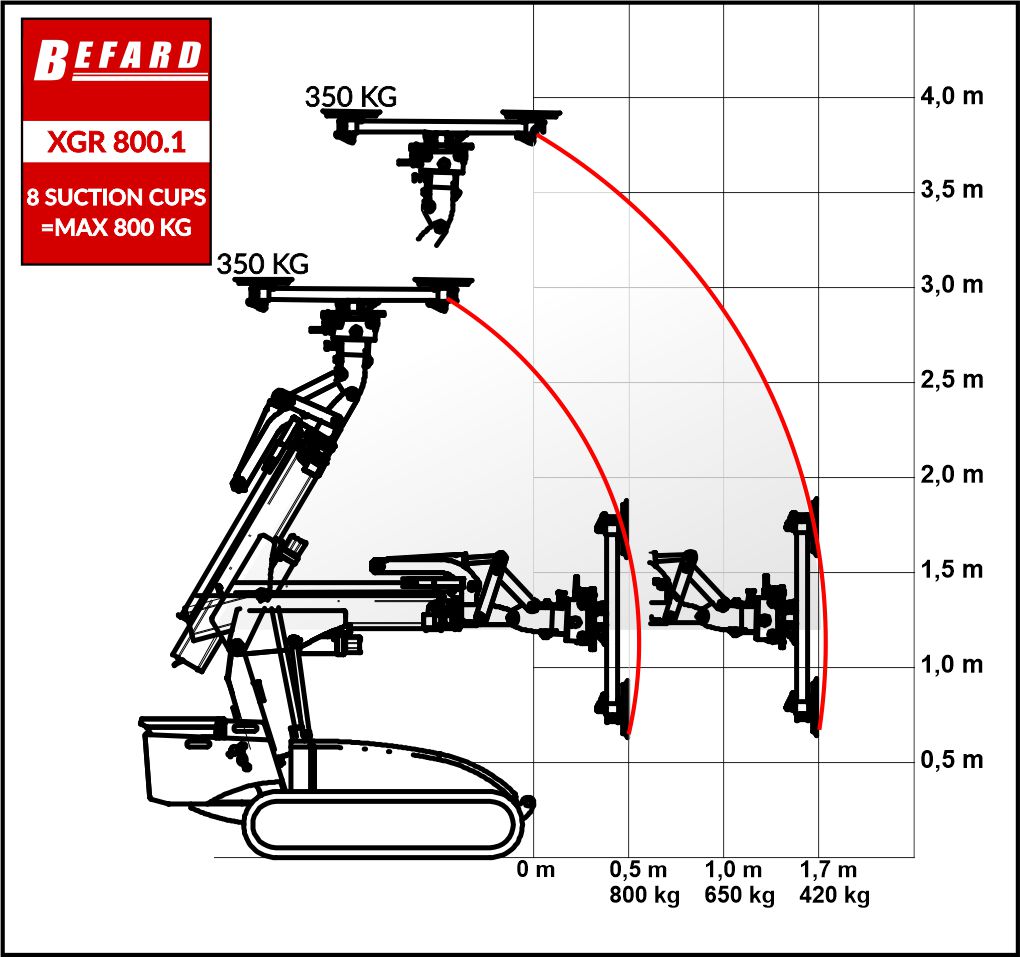

XGR 800.1 nowy silownikXGR 800.2 nowy silownikXGR 800.3 nowy silownik
