BEFARD DG

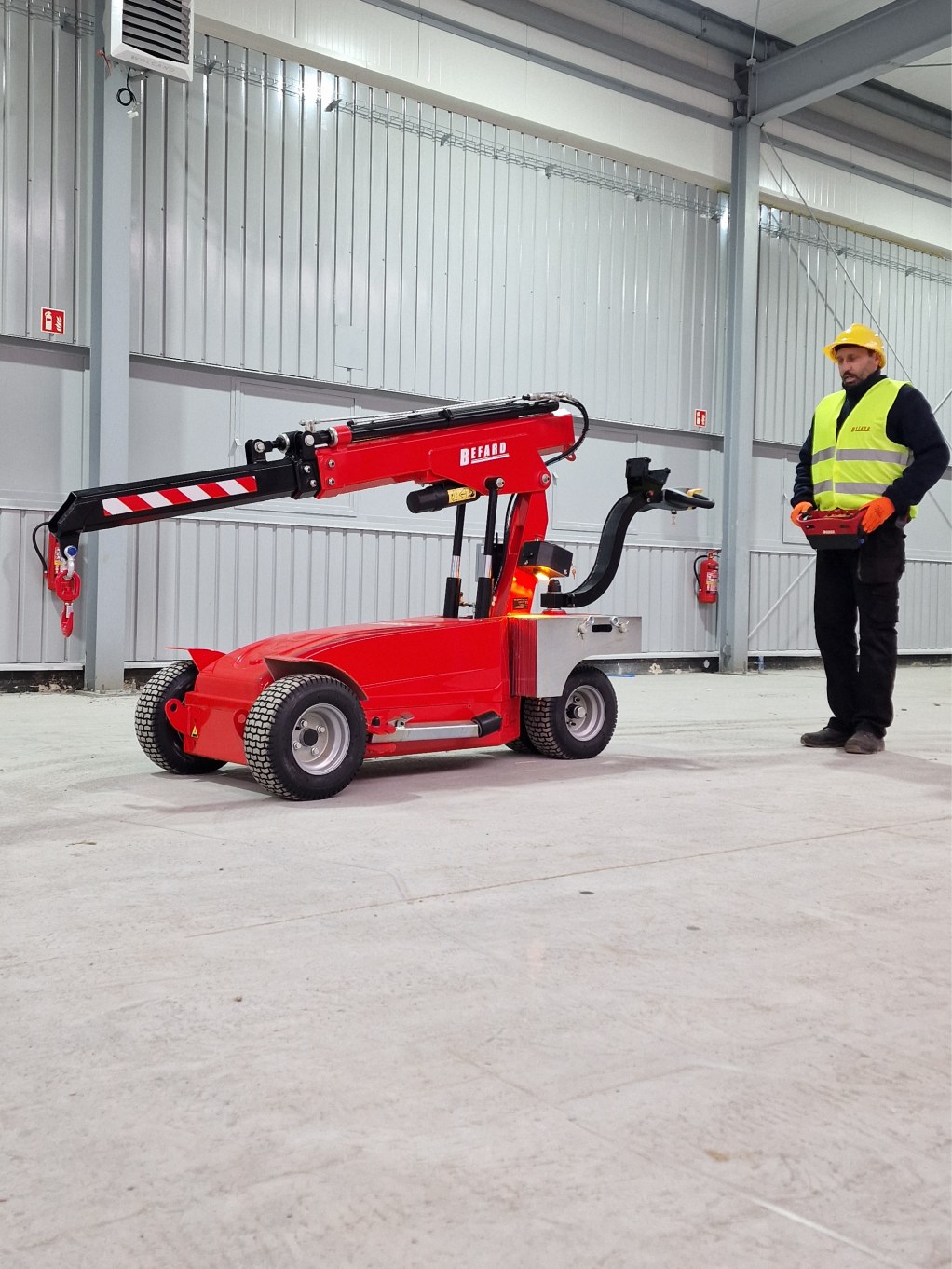

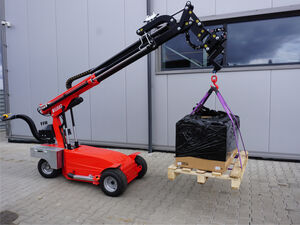

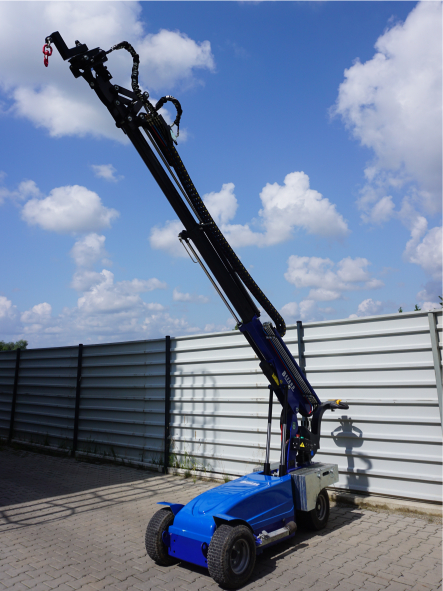

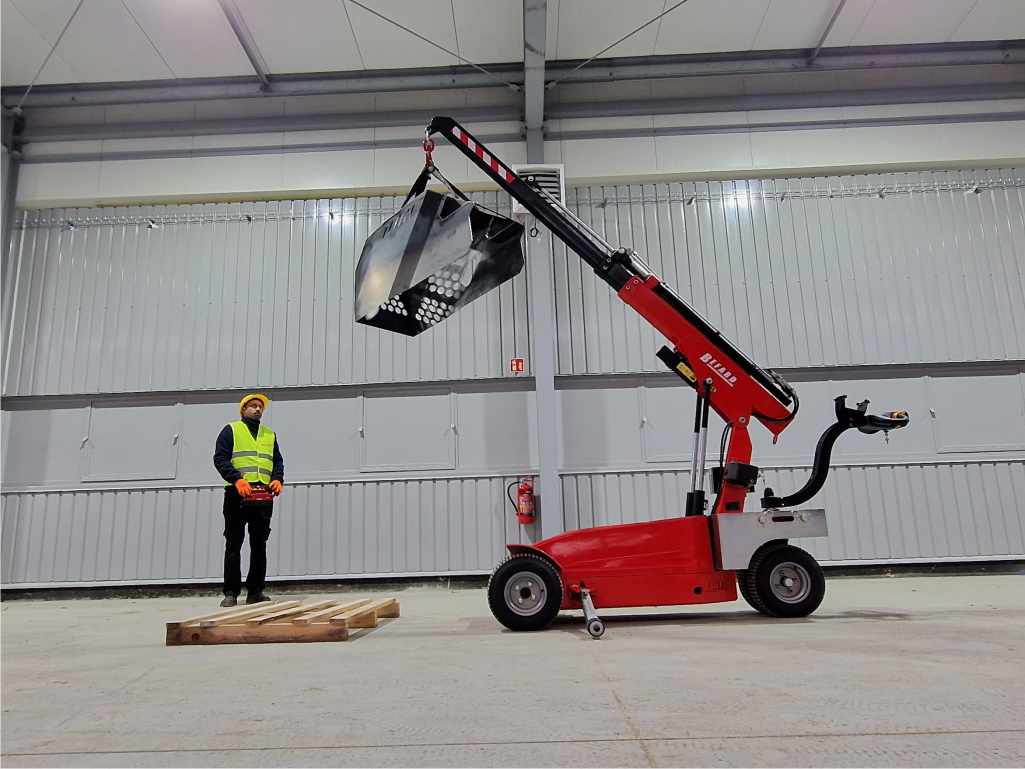

Mini pick and carry crane for transporting heavy loads. Lift capacity up to 820kg.

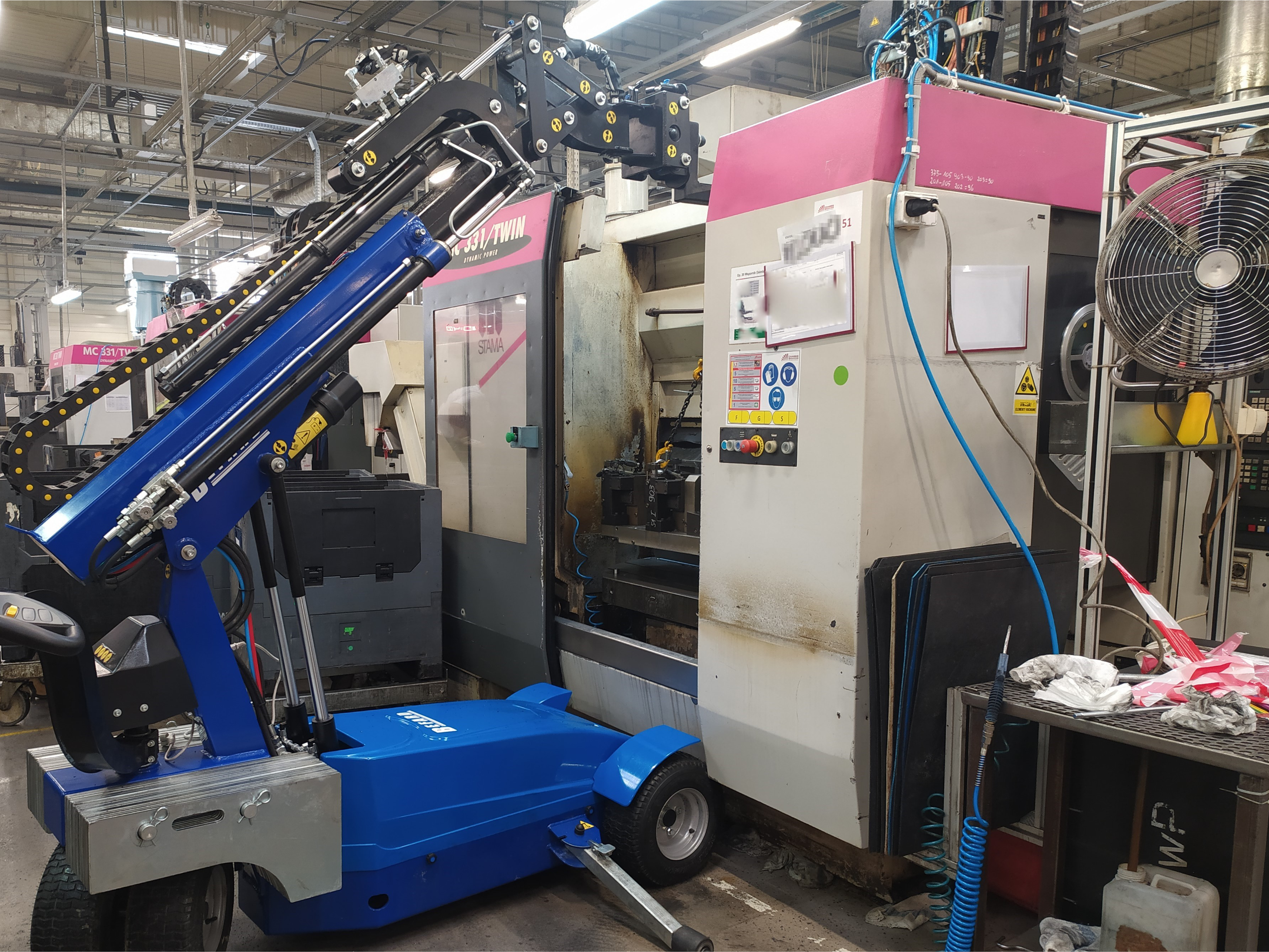

Mini wheel crane BEFARD DG 620 and DG 820 with electric drive for transporting injection molds, foundry molds and other heavy loads in tight spaces. The hydraulic control of the column allows you to transport heavy forms while maintaining work safety. The electric drive allows you to work inside halls and production rooms.

Range up to 3.75m / 4.7m / 5.5m

Download the device data sheet:

pdfDG_karta_ENG.pdf1.94 MB

Specification:

BEFARD DG620.1620.2820.1820.2820.3
Hydraulic extension x1 x2 x1 x2 x3
Vertical reach 3,75m 4,70m 3,75m 4,70m 5,50m
Boom radio control optional optional optional optional optional
Maximum capacity 620kg 620kg 820kg 820kg 820kg
Color Possibility to choose Possibility to choose Possibility to choose Possibility to choose Possibility to choose
Anti-overload system yes yes yes yes yes
Head with hydralic side shift and tilt optional optional optional optional optional
Non-marking wheels optional optional optional optional optional

Sensors for correct distribution of side supports optional optional optional optional optional
Hydraulic winch optional optional optional optional optional

The device meets the requirements of the Machinery Directive 2006/42/EC and Directive 2014/30/EU

All BEFARD devices are covered by a 12-month warranty.

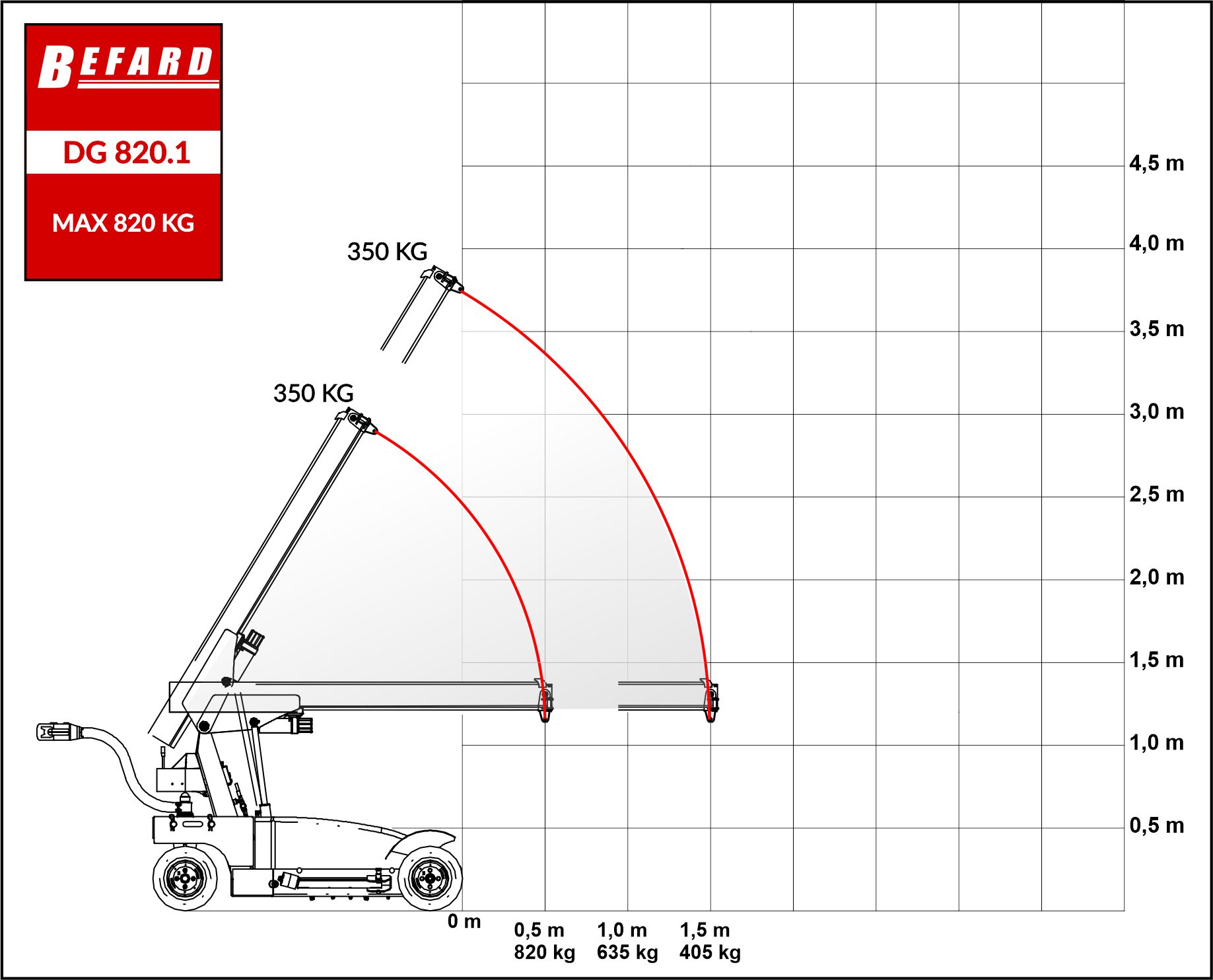

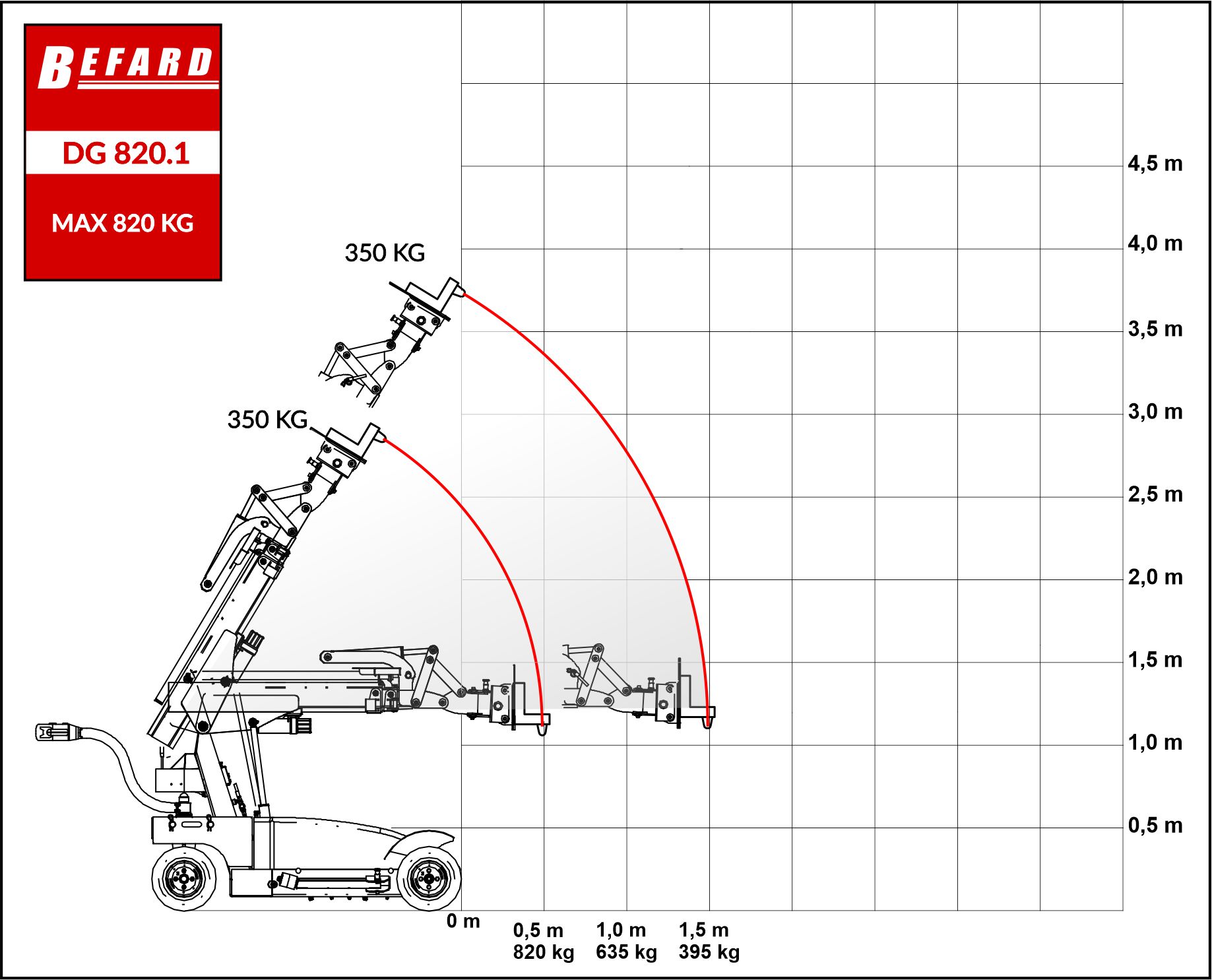

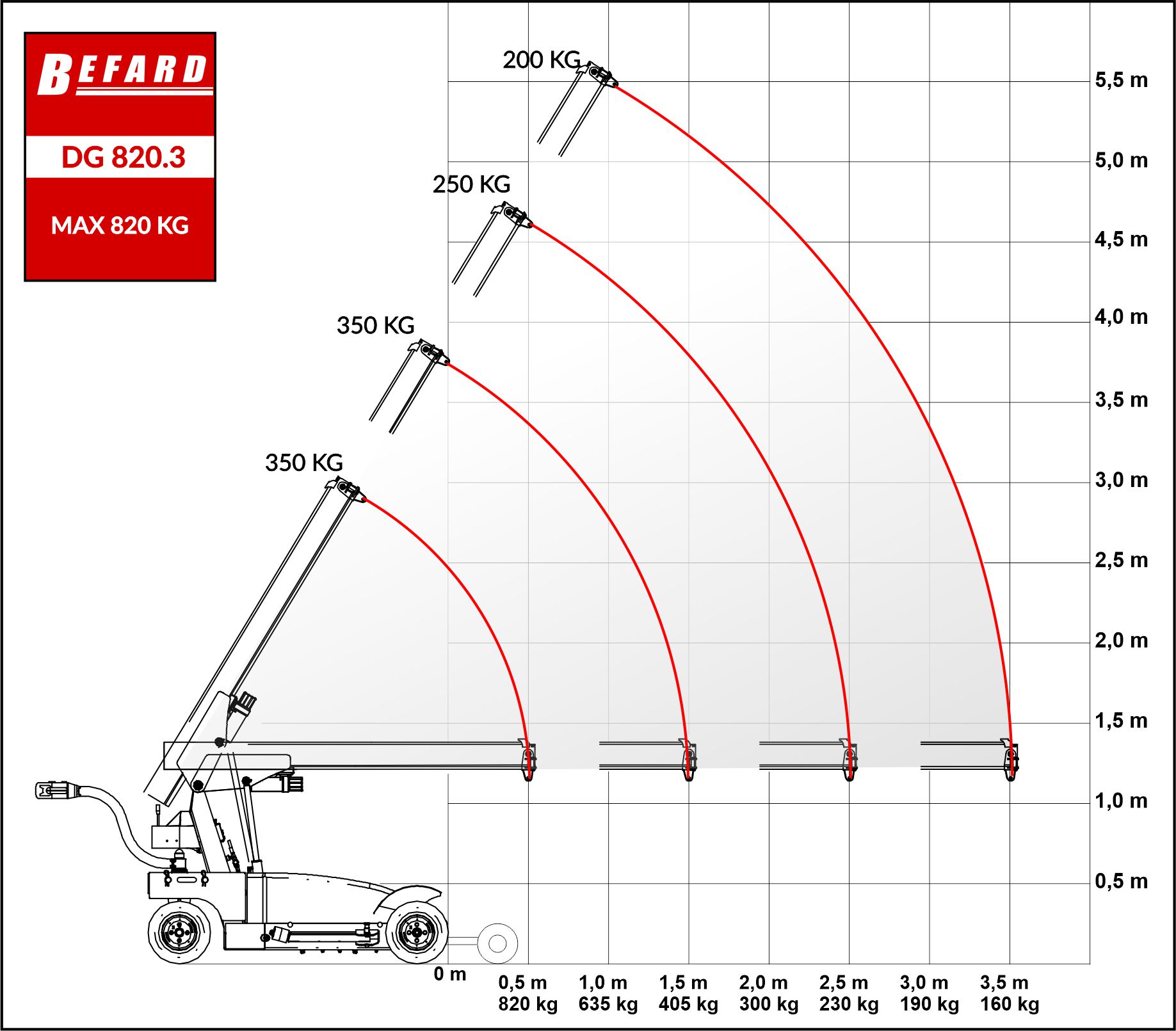

DG 820 - lifting capacity max. 820kg, reach max. up to 5.5m

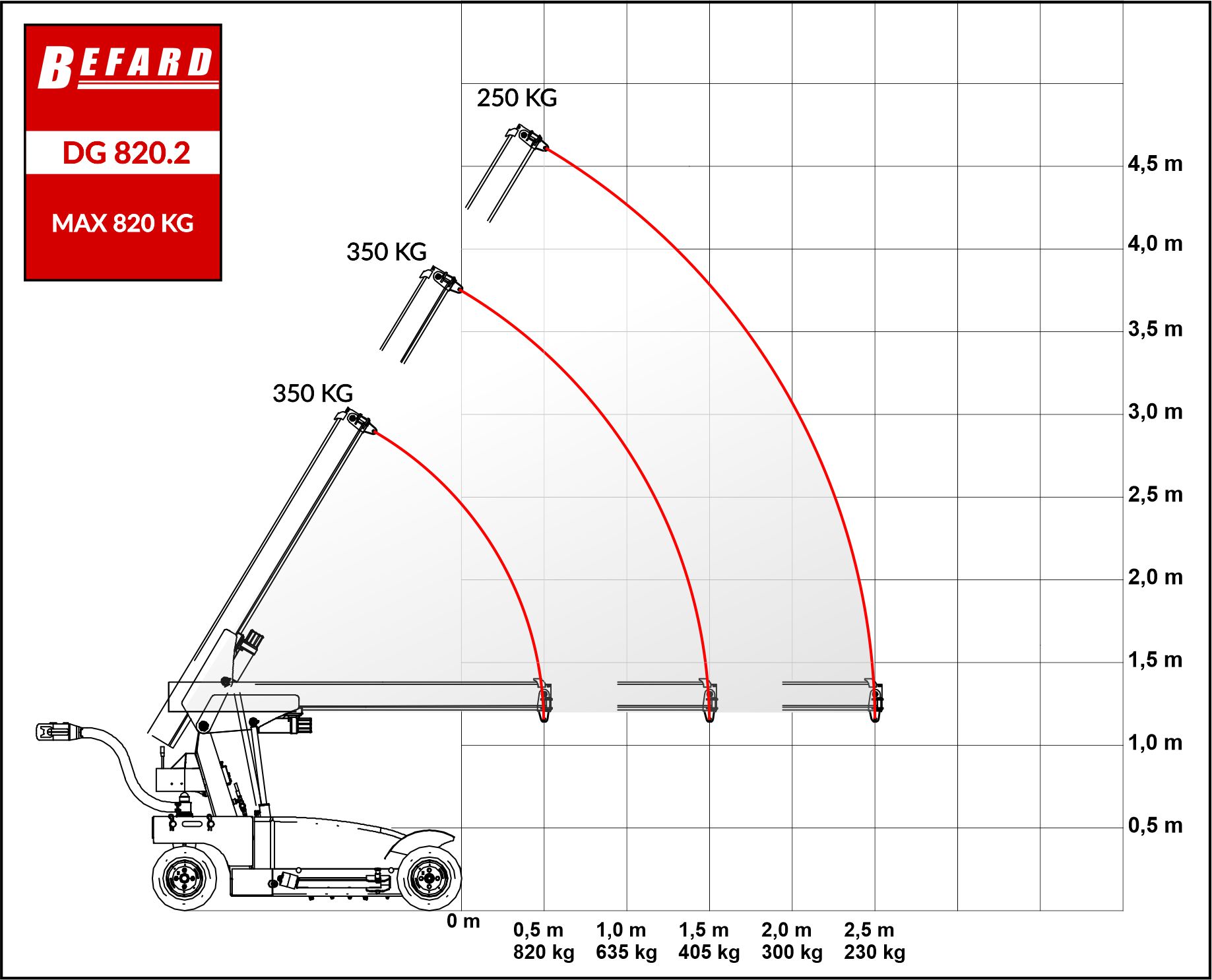

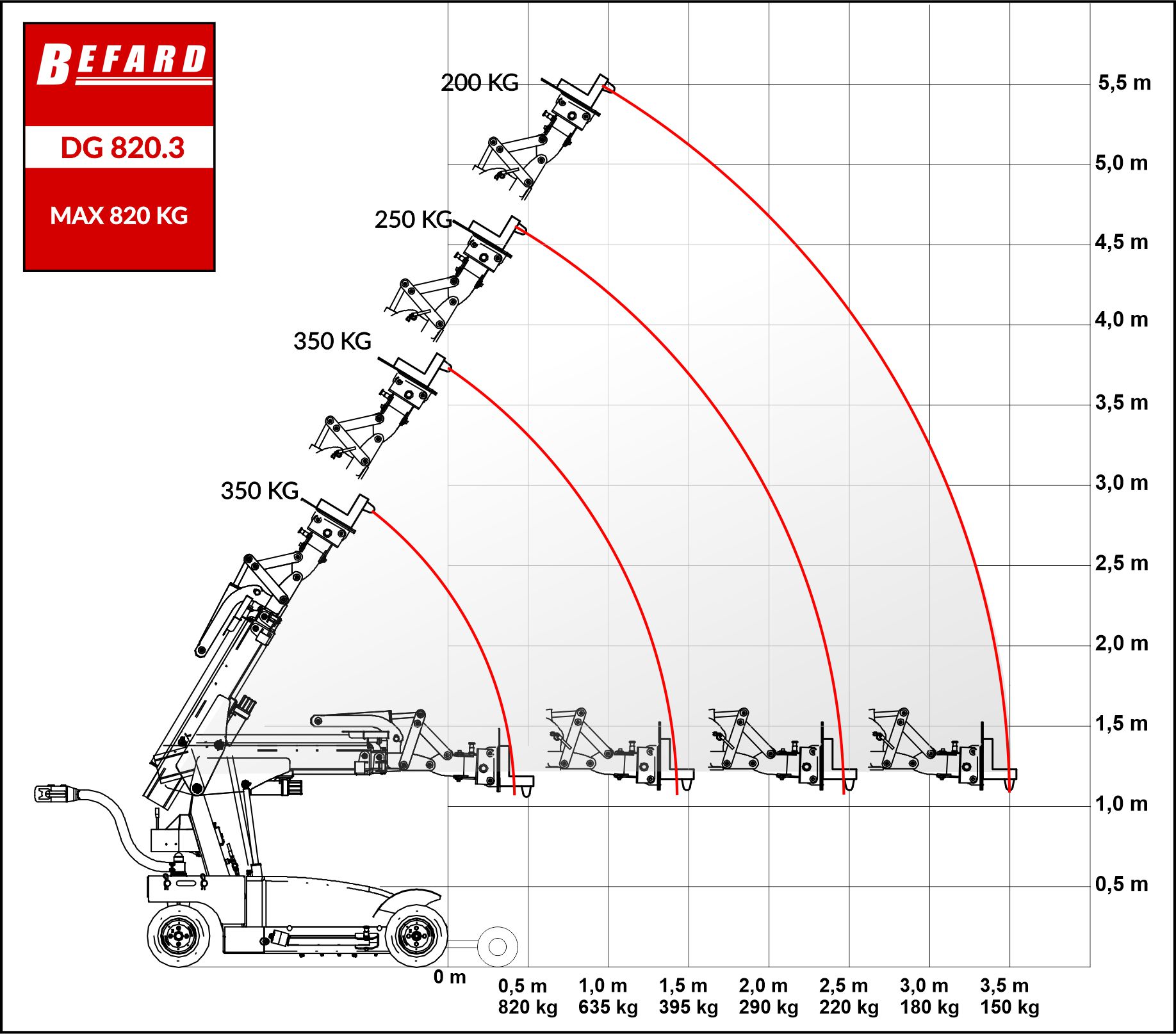

DG 820.3 funkcje nowy silownikDG 820.3 bez funkcji nowy silownikDG 820.2 funkcje nowy silownikDG 820.2 bez funkcji nowy silownikDG 820.1 funkcje nowy silownikDG 820.1 bez funkcji nowy silownik

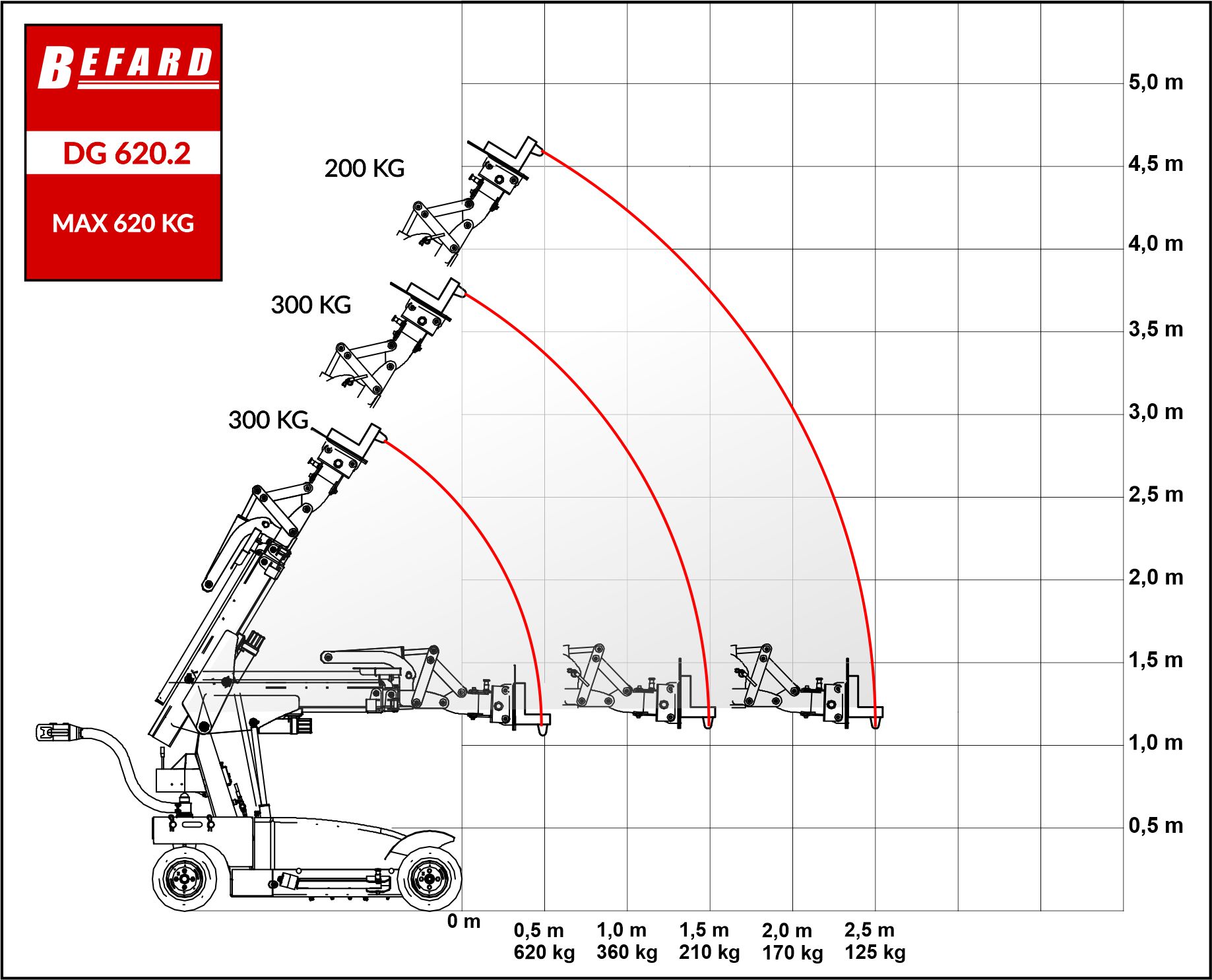

DG 620 - lifting capacity max. 620kg, reach max. up to 4.7m

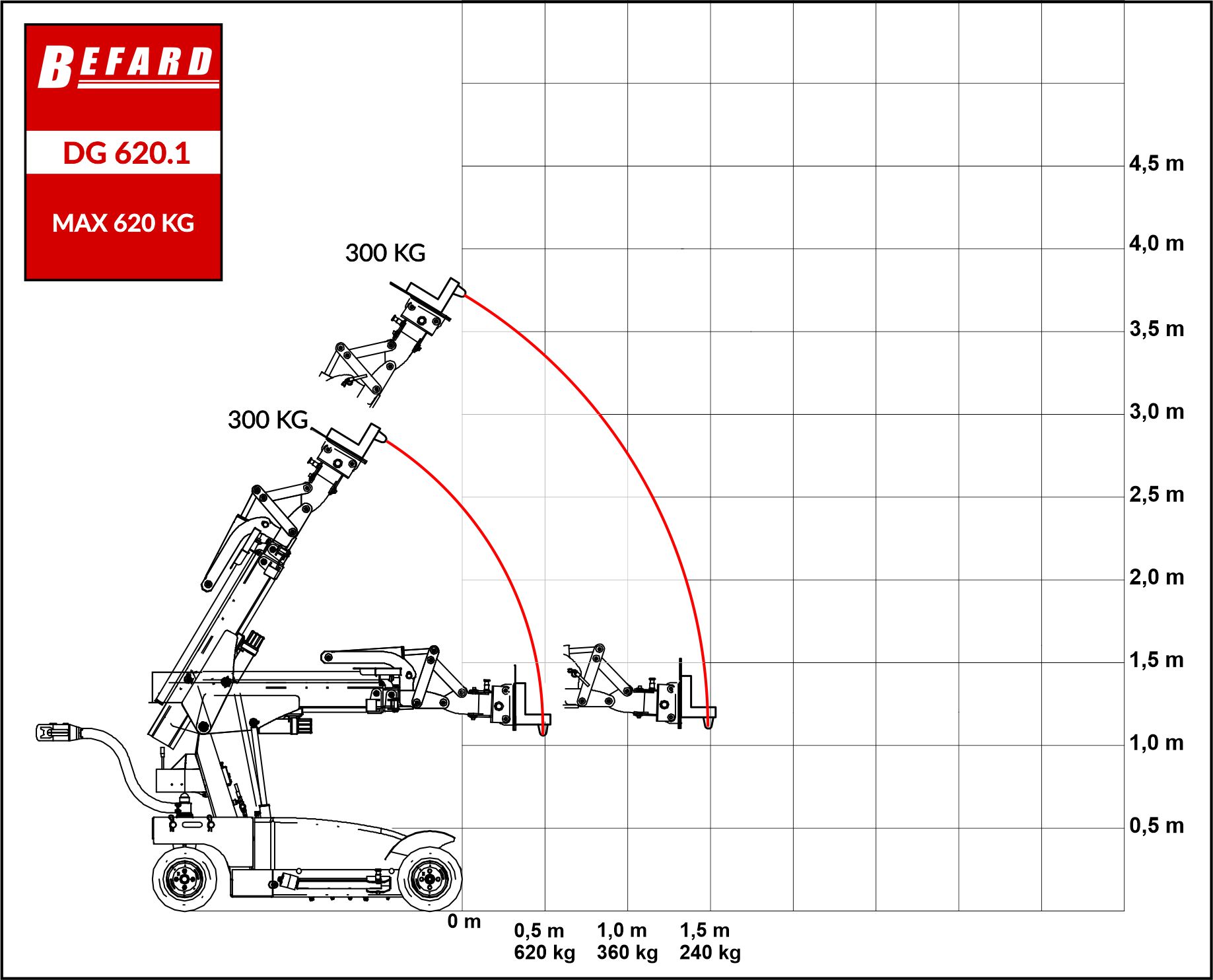

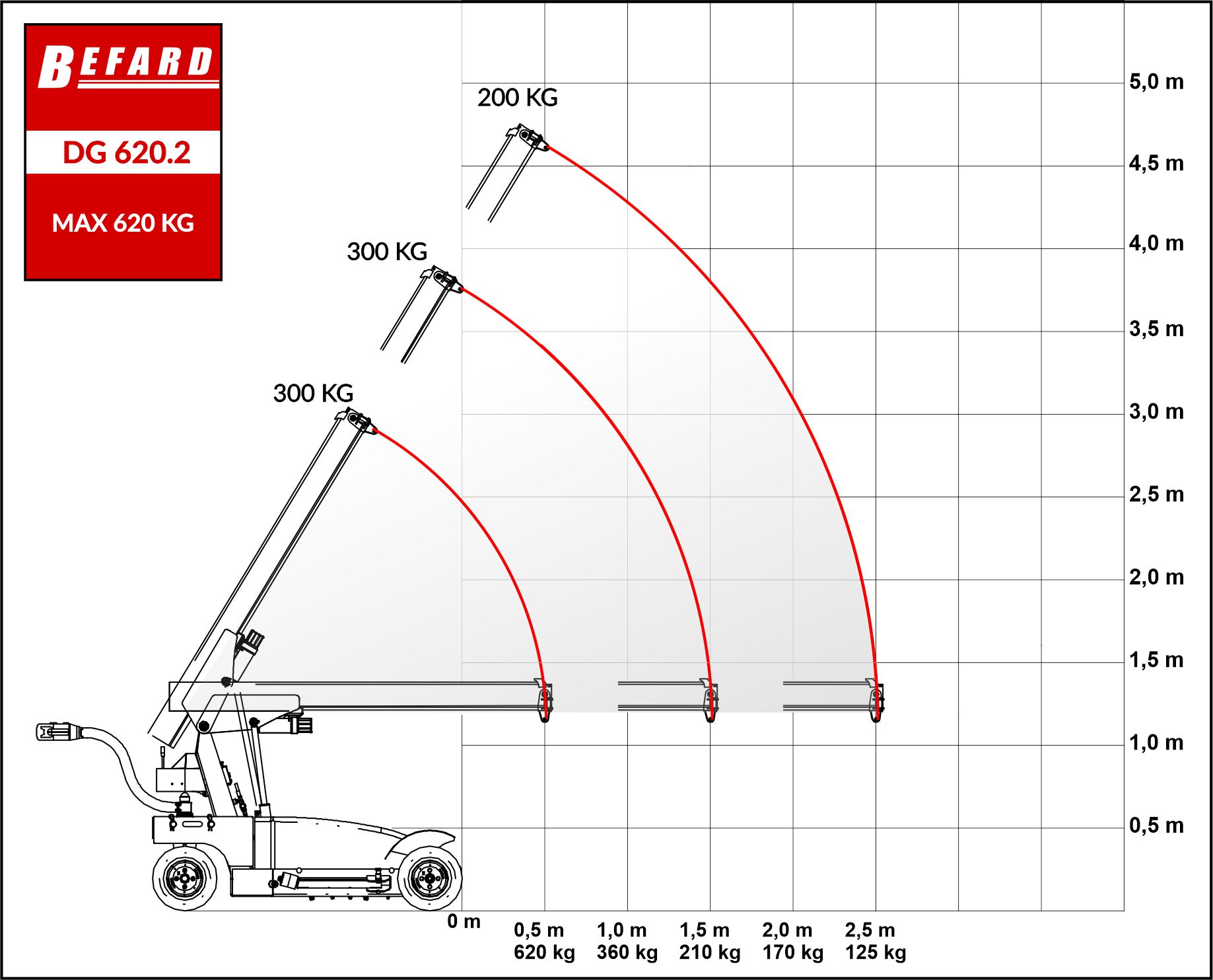

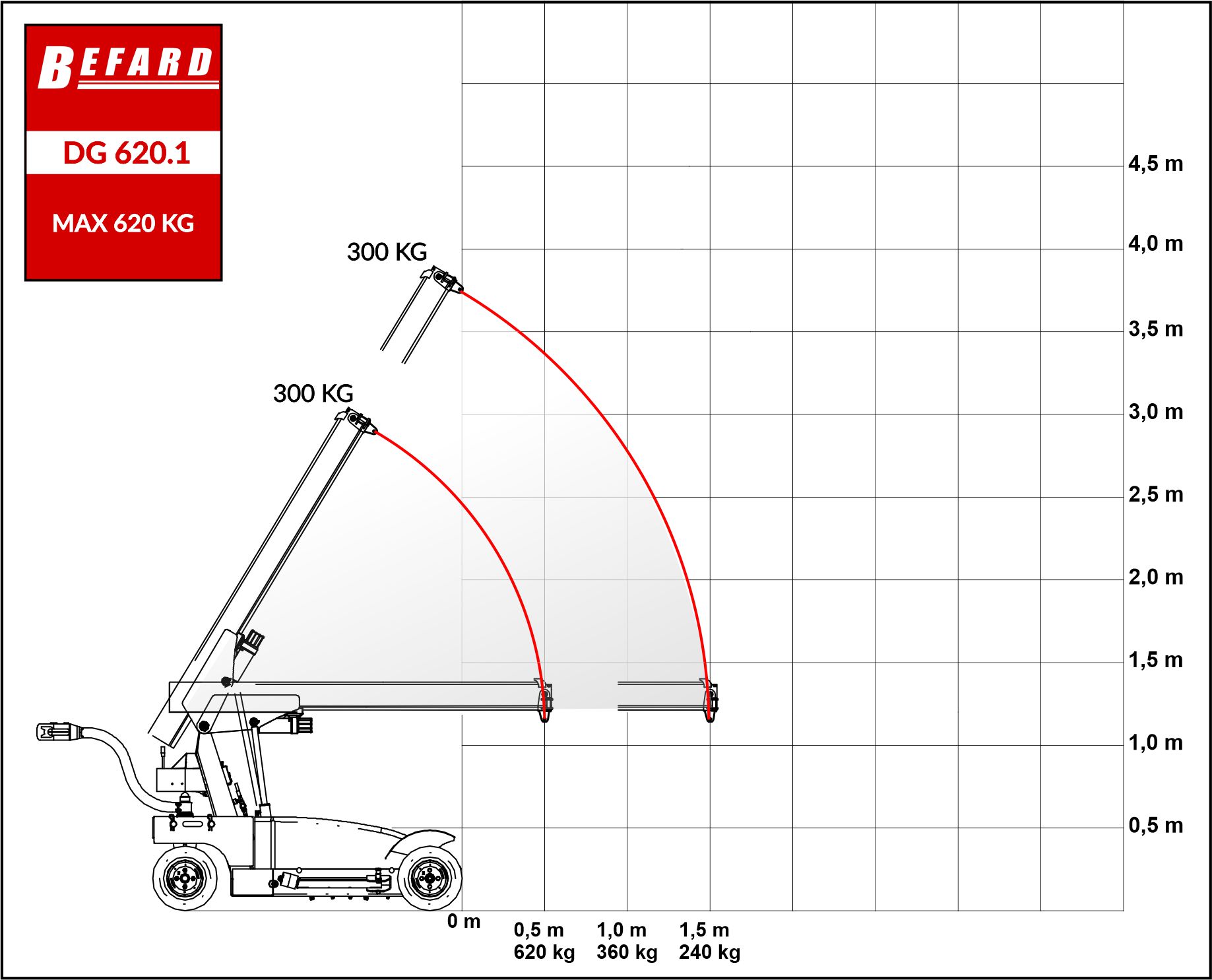

DG 620.2 funkcje nowy silownikDG 620.2 bez funkcji nowy silownikDG 620.1 funkcje nowy silownikDG 620.1 bez funkcji nowy silownik
