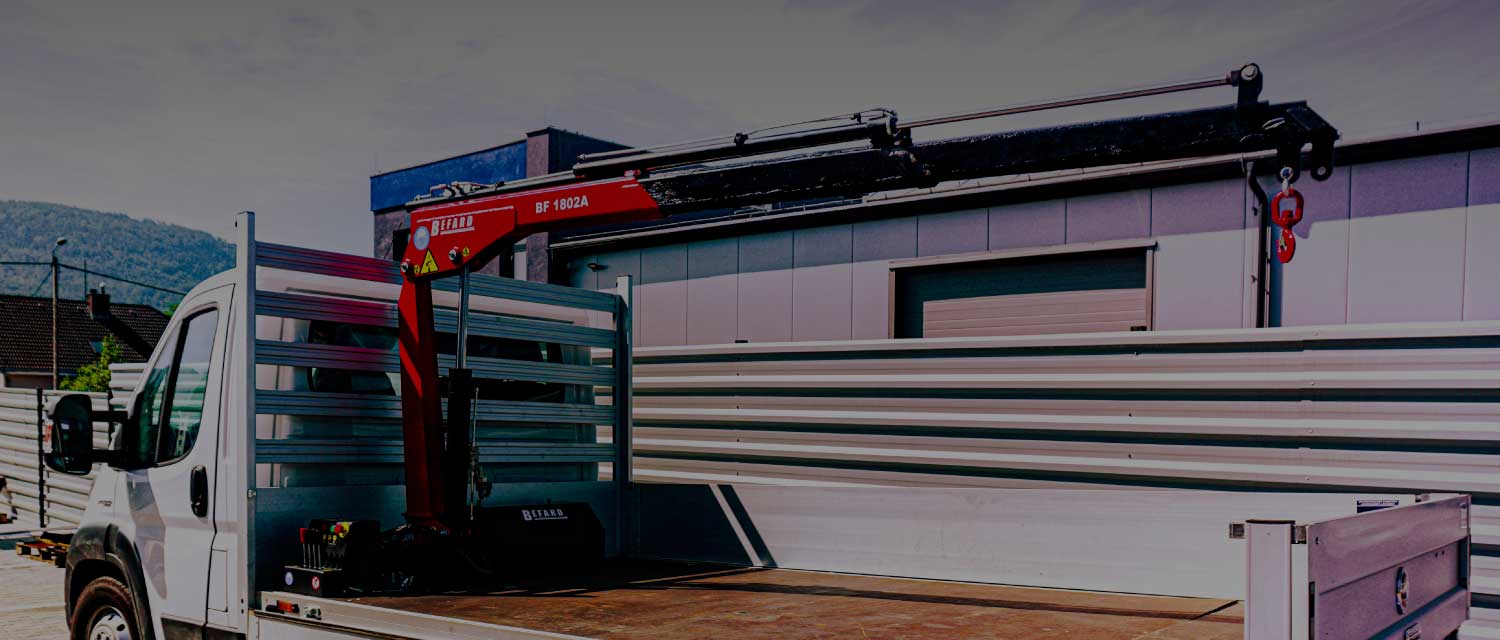

BEFARD BF 1802

Maximum hoist capacity: 1800 kg. Maximum reach with manual extension: 4200 mm.

Single- boom, compact HDS loader crane mounted on light trucks and the smallest HGV trucks. The crane is constructed on the basis of top-class components, including proportional distributors and reinforced hydraulic hoses, supplied by leading European and American manufacturers.

The machine is equipped with extension cylinder double-action locks and spring locks that protect support beams against uncontrolled sliding out.

Each BEFARD BF crane can be retrofitted with a wide range of different working accessories, such as:

  • bulk material grab buckets,
  • hydraulic and electric winches,
  • hydraulic rotators,
  • digging buckets,
  • multi-purpose buckets,
  • crane grab buckets,
  • multi-purpose grabs and grippers.
The CE version meets the essential requirements of the Machinery Directive 2006/42/CE and Directive 2014/30/EU
STOP safety switch
Double-action locks for extension cylinders
Reinforced hydraulic hoses
Manual support, optionally lowered (up-down) hydraulically
Spring protections to protect the support beams against uncontrolled sliding out
1,12 t hook
Radio control

Specification:

 BEFARD BF 1802BEFARD BF 1802 ABEFARD BF 1802 B
Lifting torque 20 kNm 20 kNm 20 kNm
Maximum hoist capacity 1800 kg 1700 kg 1600 kg
Hydraulic extension 2200 mm 3200 mm 4200 mm
Maximum reach with manual extension 4200 mm 5200 mm 5200 mm
Height of the crane 1600 mm 1600 mm 1600 mm
Transport width 1900 mm 1900 mm 1900 mm
Foot extension 3300 mm 3300 mm 3300 mm
Slewing angle 210-360° 210-360° 210-360°
Swivel torque 3,5 kNm (18 MPa) 3,5 kNm (18 MPa) 3,5 kNm (18 MPa)
Extension upward elevation angle 63° 63° 63°
Downward drop angle 60° 60° 60°
Working pressure 185 bar 185 bar 185 bar
Pump operating pressure 280 bar
recommended
280 bar
recommended
280 bar
recommended
Flow pump 13 l/min
recommended
13 l/min
recommended
13 l/min
recommended
Weight 255 kg 274 kg 286 kg

The recommended pump flow may vary depending on the power supply and the specifications of the equipment to be mounted to the crane. In standard applications, this is the maximum value.

The device meets the requirements of the Machinery Directive 2006/42/EC and Directive 2014/30/EU

All BEFARD devices are covered by a 12-month warranty.

The warranty will not be valid if the crane uses a power supply other than that of the Binotto manufacturer (excluding electric and diesel power units).




BF 1802.12 angBF 1802A.12 angBF 1802B.11 ang
