| Radio remote | Drive + all hydraulics; optional LCD display |
| 3-in-1 power |
Befard XM1200 – Flexible Power Options The XM1200 mini crane can be equipped with three independent power sources – combustion engine, electric (230 V / 400 V / 110 V), and Li-ion battery – providing full operational flexibility in any environment. The machine can feature all three power sources simultaneously (3-in-1 configuration), allowing the operator to easily switch between them based on the worksite and task:
Switching between power modes is quick and uninterrupted, ensuring adaptability without compromising performance or safety. Power specifications:
|
| Fully-electric version available |
The XM1200 is also available as a 100% electric crane, powered solely by Li-ion batteries or mains electricity, with the option to charge the battery while operating on mains power. Specifications for the fully electric version:
|
| Max capacity Pick&Carry | 1,200 kg |

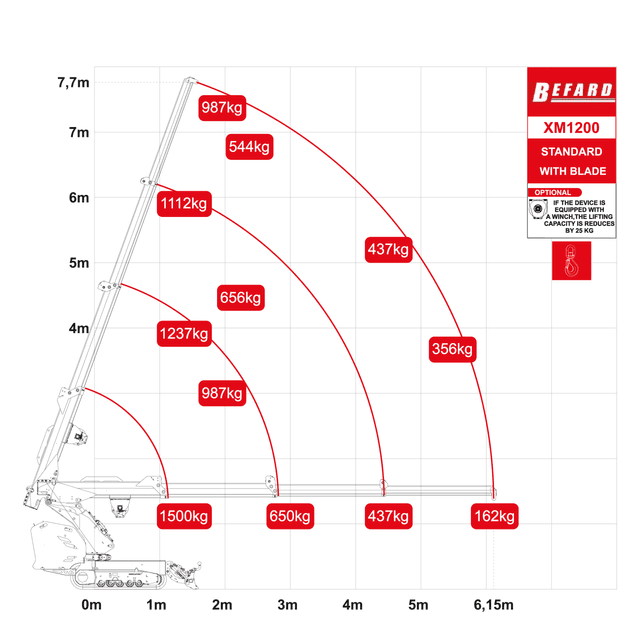

| Max capacity (with blade support) | 1,500 kg |
| Układ antyprzeciążeniowy | Yes |
| Overload protection | Yes |

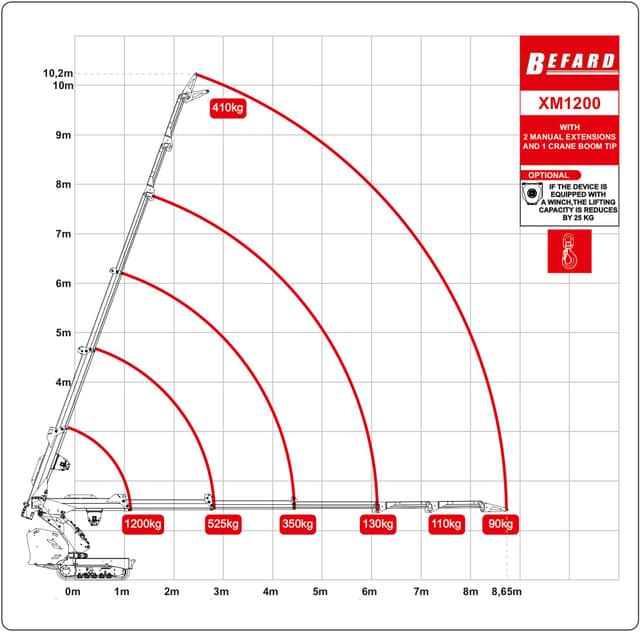

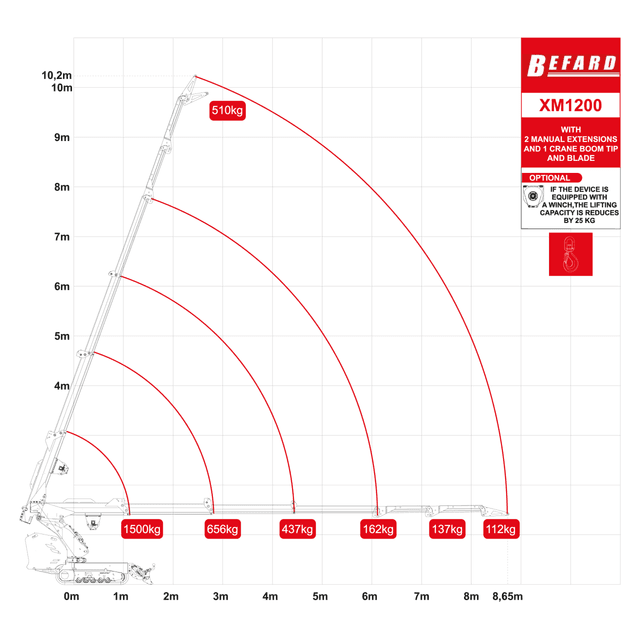

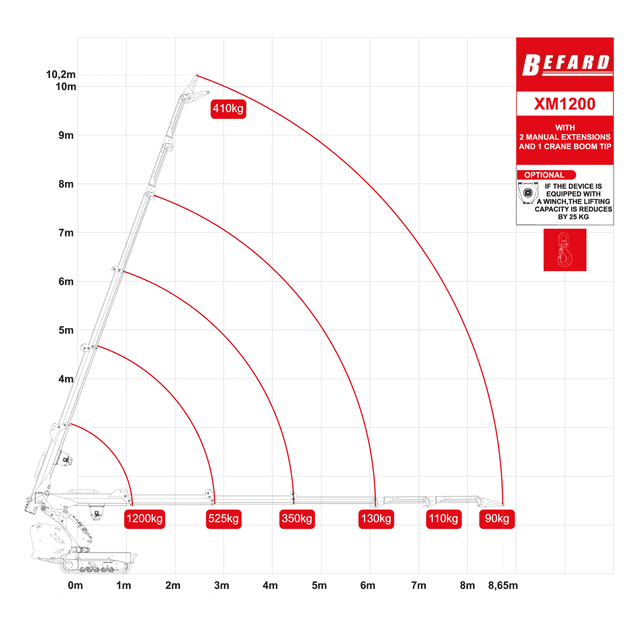

| Max vertical reach with options | 10.2 m |

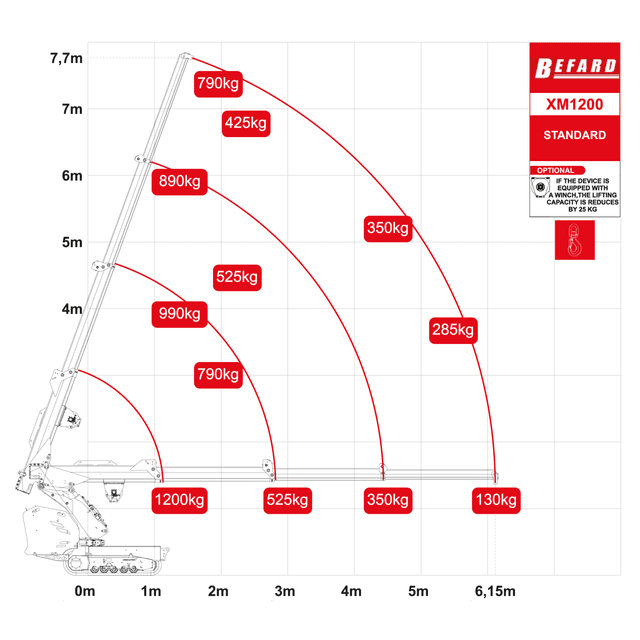

| Max vertical reach (standard) | 7.7 m |
| Max horizontal reach with options | 8.65 m |
| Max horizontal reach (standard) | 6.15 m |
| Trasnport height | 1.75 m (without options) |
| Transport width | 0.78 m |
| Transport length | 2.3 m (without options) |
| Crawlers | Standard or non-marking |
| Chasis |

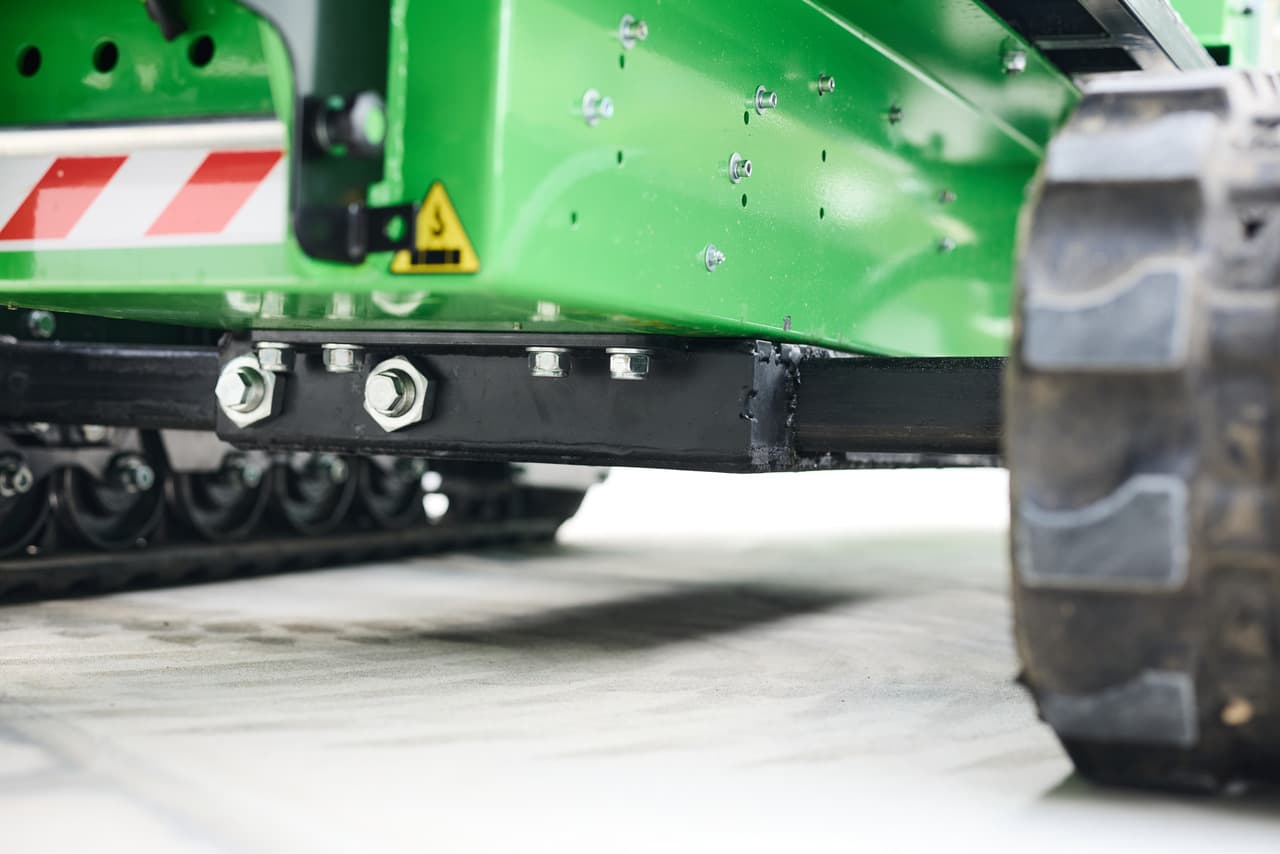

Hydraulically widening chassis (780–1,250 mm) with 10 sprung rollers |
| Ground clearance | 0.13 m |
| Slew |
±25° (50° total) |
| Boom opening angle |
65 ° |
| LED lights |
2 pcs. |
| Remote box |
Lockable IP67 remote box |
| Weight |
~1,140–1,294 kg (config. dependent) |
Options
| Winch |
Hydraulic winch 990 kg (50 m × 7 mm) or 500 kg (36 m × 6 mm) |
| Li-on power | Li-ion battery pack (or 3-in-1 configuration) |
| Searcher hook | 6 positions, +500 mm reach |
| Manual JIB | ~+1,000 mm, up to two units |
| LCD radio remote | Yes |
| Hydraulic front blade |
Hydraulic front blade + forks / tow hook (raises static capacity to 1,500 kg) |
| Operator standing platform | Operator standing platform (+ extension) |

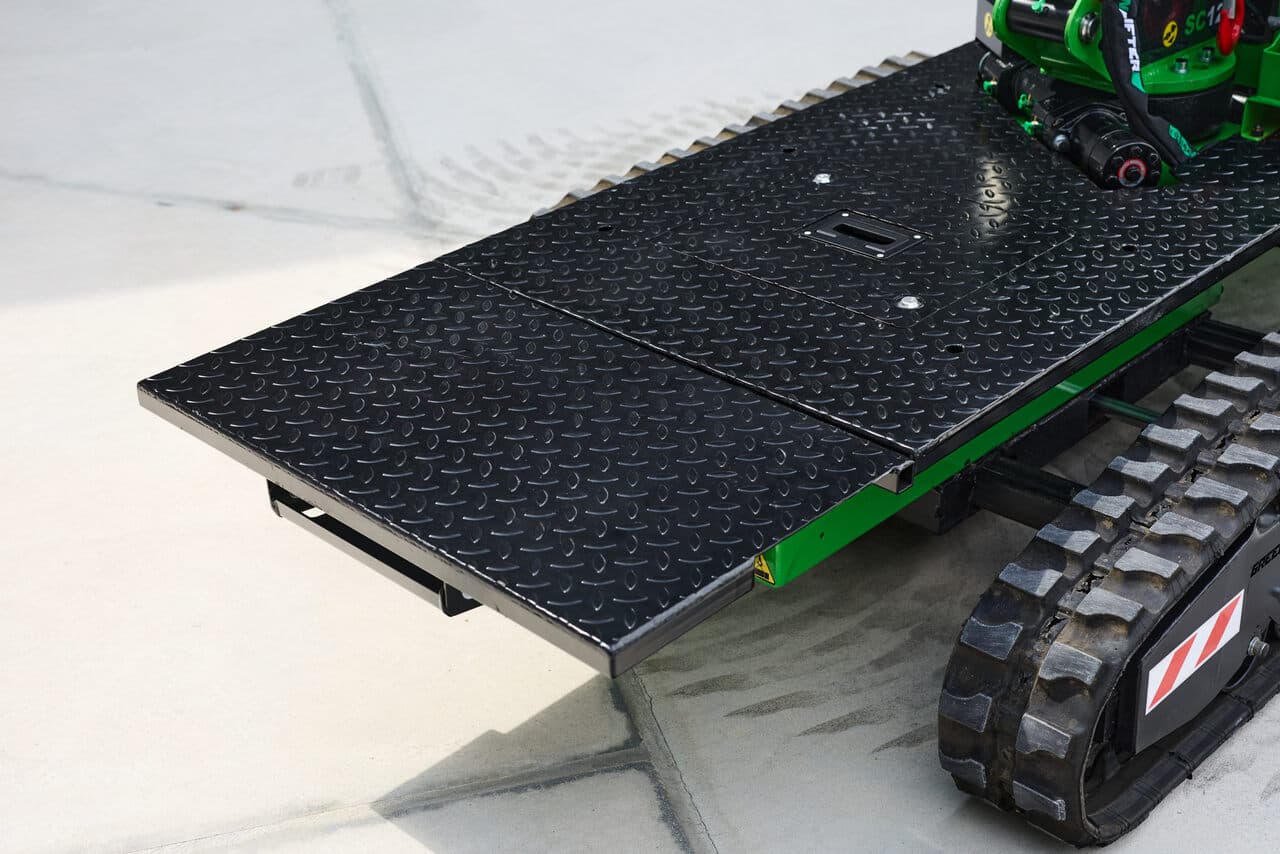

| Load platform extension | Detachable load platform extension – approx. 0.5 m |

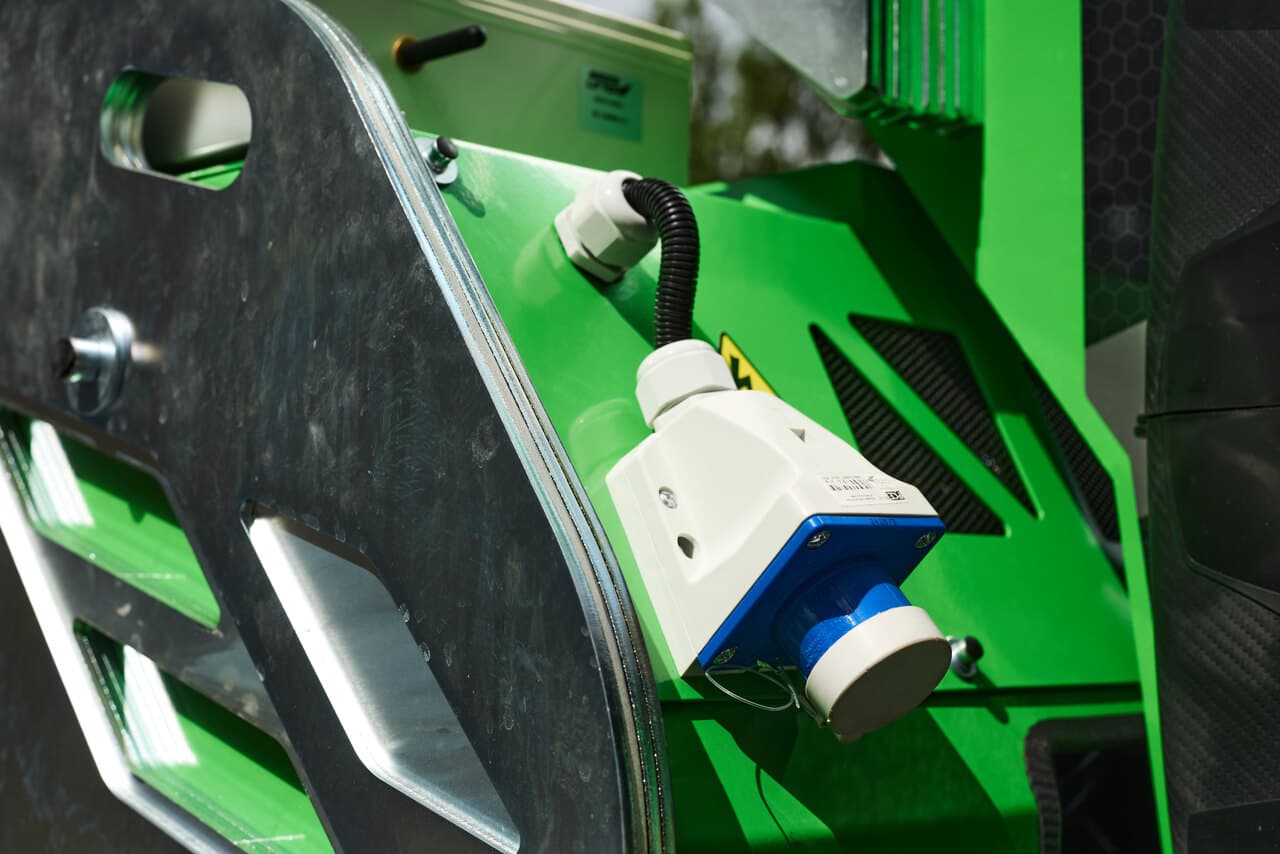

| Mains power 230/110/400 V | Mains power 230/110/400 V (per configuration) |

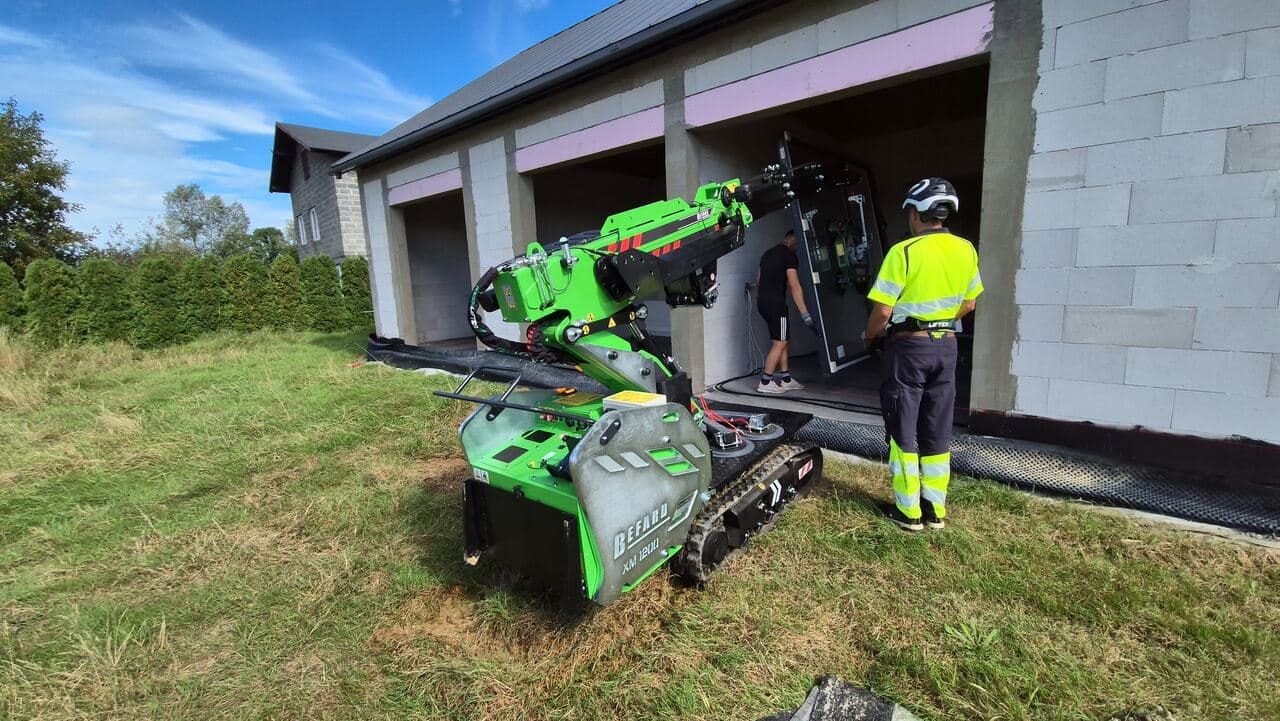

| Electric glass lifter | Electric glass lifter BEFARD HGT (tilt/rotate, remote) |
| Bracket for BEFARD XP glass lifter | Bracket for BEFARD XP glass lifter |
| RAL colour | Custom RAL |
| Tow hook | Yes |
| Ramps | Aluminium ramps (2,5m) |
