| Radio control | Both the device’s travel and the crane’s operation, including all hydraulic functions and starting and stopping the combustion engine. Optional control with an LCD display. |
| 3-in-1 power supply |
The crane can be equipped with three independent power sources – combustion engine, electric (230 V / 400 V / 110 V), and Li-ion batteries – ensuring complete operational flexibility in all conditions. The machine can be equipped with three power sources (3-in-1) simultaneously: combustion engine, Li-ion battery, and mains power. With a properly configured machine, the operator can freely choose one of the three available power sources depending on the location and nature of the work, for example: •Combustion engine – for outdoor use, away from power sources, • Mains power – for quiet and emission-free operation indoors (varies by country/installation), • Li-ion battery – for mobile operation in confined spaces or where the combustion engine cannot be used. Changing power modes is quick and requires no interruption in operation, allowing the machine to adapt to various environments without compromising performance or safety. •Electric amplifier – 1.5 KW, 48 V •Petrol exhaust engine – Vanguard 10 hp, 7.5 kW •Li-ion Battery – 80 Ah |
| Fully electric power supply |
Optionally, a 100% electric machine is also available, running on lithium-ion batteries or mains power (the battery can be charged simultaneously while running on mains power). •Li-ion battery for the fully electric version – 160 Ah •Mains power: 230 V, 400 V, or 110 V, depending on the selected configuration. |
| Max load capacity Pick&Carry | 1250 kg |
| Max lifting capacity – with blade | 1600 kg |
| Anti-overload system | Yes |
| Hydraulic extensions | 3-section hydraulic extension – ensures smooth extension and even load distribution on each section, which increases stability, durability of the structure and work safety |
| Hydraulic JiB | Hydraulic Jib with a maximum lifting capacity of 650 KG with 1-section hydraulic extension |
| Hydraulic support blade |
An additional support blade at the front of the machine extends manually and lowers hydraulically. Additional options are available for the blade: • Forks • Tow hitch Increasing the stationary lifting capacity to 1500 kg |

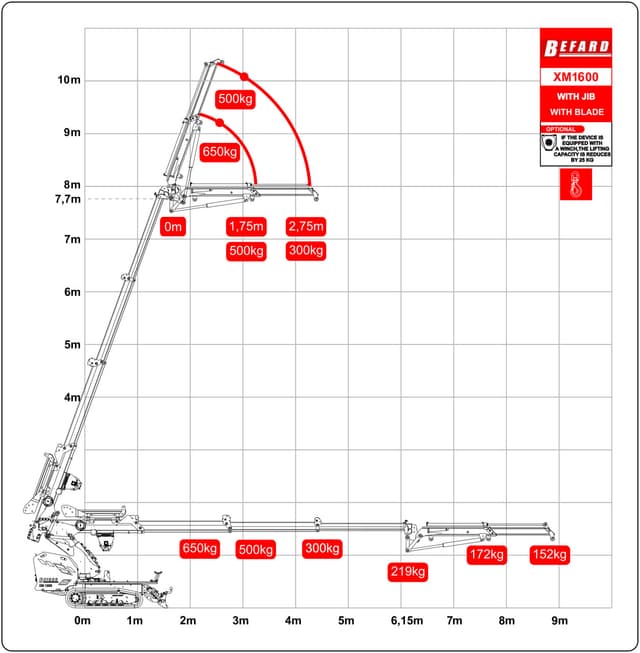

| Maximum vertical reach with hydraulic Jib | 11,2 m |
| Maximum vertical range standard version | 7,7 m |
| Maximum horizontal reach with hydraulic Jib | |
| Maximum horizontal range standard version | 6,15 m |
| Transport height | |
| Transport width | |
| Transport length | |
| Caterpillars | Standard or non-marking |
| Chassis |
Hydraulically extendable (780-1250 mm) Reduction drive – high-mounted crawler drive protects against damage. The undercarriage is equipped with 10 shock-absorbing rollers that adapt to the ground. This ensures the crane maintains high stability and smooth movement even when traveling with a load, minimizing the risk of shocks and tilting. The shock-absorbing rollers effectively distribute pressure and improve traction, resulting in: •Safe load transport in Pick & Carry mode •Better track control in difficult terrain |
| Clearance | 0,13 m |
| Rotating column | Left and right rotation 25° (total 50°) |
| Arm opening angle |
65° Knee joint – mounted between the column and the arm allows for: • constant lifting torque • stable lifting and lowering speeds |
| LED lamp |
2 szt. • Fixed lamp • Magnetic lamp |
| Radio control box |
Waterproof (IP67), machine-mounted, key-lockable |
| Device weight |
~1270 kg – standard machine weight (without ballast, without Jib) ~1580 kg – standard machine weight with ballast |
Optional equipment
| Winch |
Hydraulic winch options: •990 kg with 50 m of 7 mm steel rope •500 kg with 36 m of 6 mm steel rope |
| Powered by Li-ion batteries | By choosing Li-ion battery power, this is the only power source for the machine; you can operate it wired while charging. By choosing 3-in-1 power, you have all three power types. |
| Searching hook | Search hook with 6 positions, increasing reach by approx. 500 mm |
| JiB Hand Arm | Manual JiB arm with 4 positions, extending reach by approximately 1000 mm. Ability to use 2 manual JiB arms simultaneously. |
| Radio control with display | Optionally, you can choose control with an LCD display. |
| Platform for standing on the machine | Rear platform for the operator to stand on the machine (not necessary in standard use) |
| Extension for loading platform | Removable extension to the loading platform by approx. 0.5 m |
| Power supply from 230V or 110V mains | Additional power supply from the 230 V mains (operation via mains cable). Optionally also available 110 V (USA) or 400 V (three-phase) – applies to the combustion version or the 3-in-1 version. |
| Possibility of using the Befard HGT electric gripper | Possibility of using the BEFARD HGT electric suction cup with rotation, side-to-side tilt, and up-down tilt functions. Controlled by remote control. |
| XP holder attached to the platform | BEFARD XP glass gripper holder attached to the platform. |
| RAL color | Selection of any machine color from the RAL palette. |
| Ramps | Aluminum ramps, 2.5 m long |
