| Radio control | Both the device’s travel and the crane’s operation, including all hydraulic functions and starting and stopping the combustion engine. Optional control with an LCD display. |
| 3-in-1 power supply |
The crane can be equipped with three independent power sources – combustion engine, electric (230 V / 400 V / 110 V), and Li-ion batteries – ensuring complete operational flexibility in all conditions. The machine can be equipped with three power sources (3-in-1) simultaneously: combustion engine, Li-ion battery, and mains power. With a properly configured machine, the operator can freely choose one of the three available power sources depending on the location and nature of the work, for example: •Combustion engine – for outdoor use, away from power sources, • Mains power – for quiet and emission-free operation indoors (varies by country/installation), • Li-ion battery – for mobile operation in confined spaces or where the combustion engine cannot be used. Changing power modes is quick and requires no interruption in operation, allowing the machine to adapt to various environments without compromising performance or safety. •Electric amplifier – 1.5 KW, 48 V •Petrol exhaust engine – Vanguard 10 hp, 7,5 kW •Li-ion Battery – 2 x 80 Ah |
| Fully electric power supply |
Optionally, a 100% electric machine is also available, i.e. it runs on lithium-ion batteries or from the mains (the battery can be charged simultaneously while working on mains power). •Li-ion battery for the fully electric version – 200 Ah •Mains power supply 230 V, 400 V, 110 V depending on the selected configuration |
| Max load capacity Pick&Carry | 2500 kg |
| Max lifting capacity – with blades | 2500 kg |
| Anti-overload system | Yes |

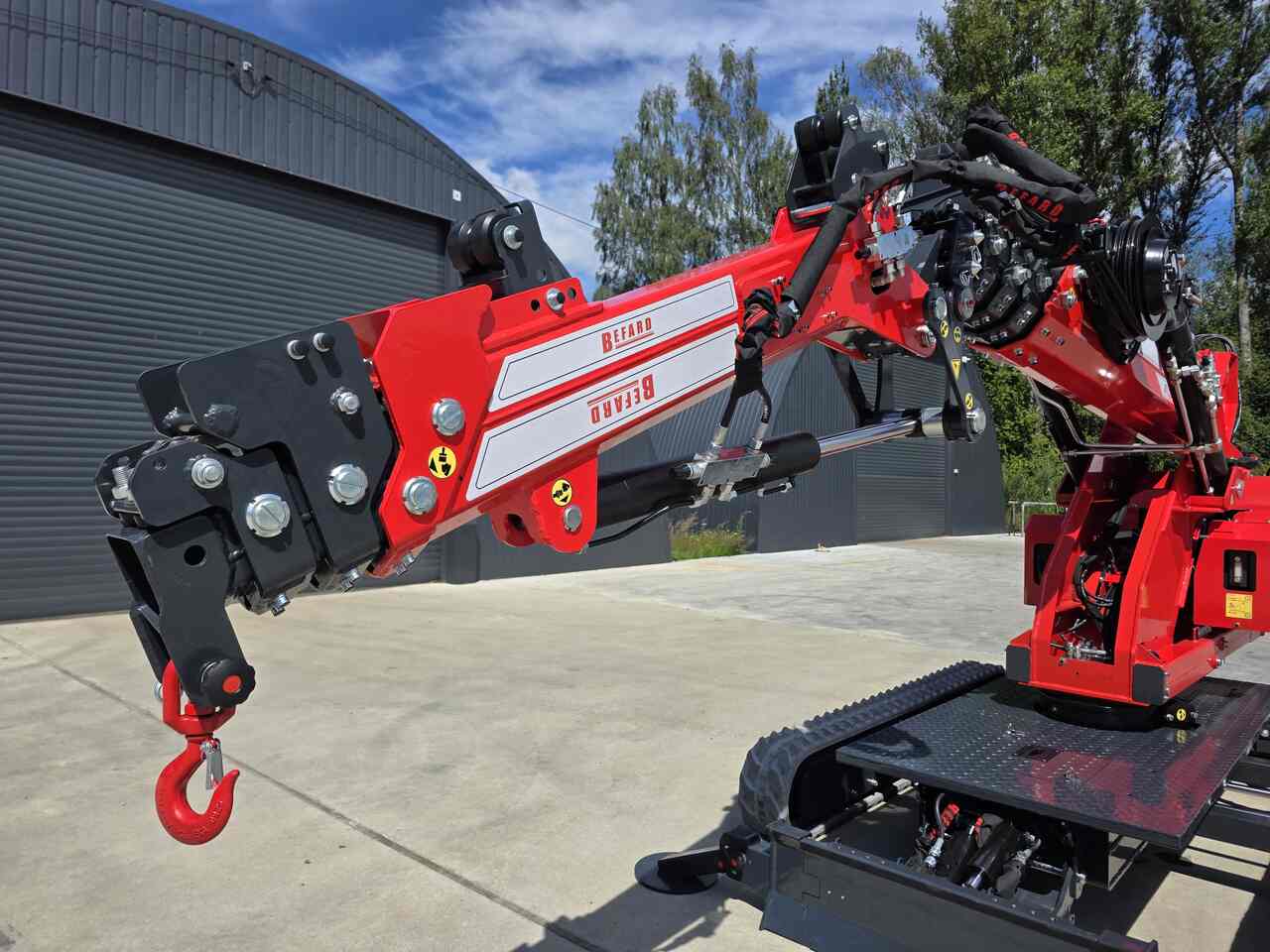

| Hydraulic extensions | 4-section hydraulic extension – ensures smooth extension and even load distribution on each section, which increases stability, durability of the structure and work safety |
| Hydraulic JiB | Hydraulic Jib with a maximum lifting capacity of 790 KG with 3-section hydraulic extension |
|

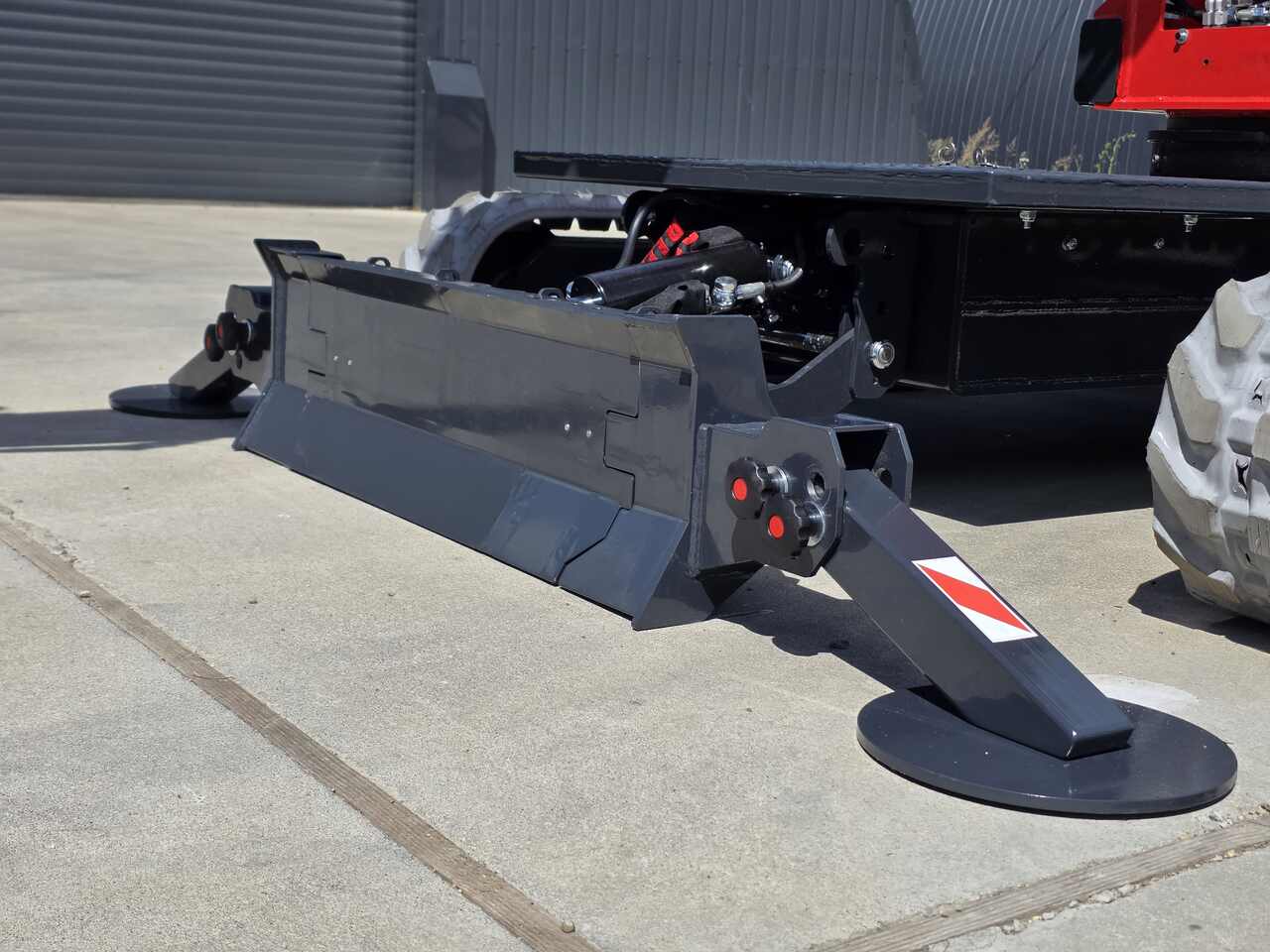

Hydraulic support blades at the front and rear |
Additional support blades at the front and rear of the machine are manually extended and hydraulically lowered. They increase the machine’s stability during operation and allow it to lift loads up to 2,500 kg in a stationary configuration. These blades can be equipped with additional attachments, such as forks or a tow hitch, for greater versatility. |
|

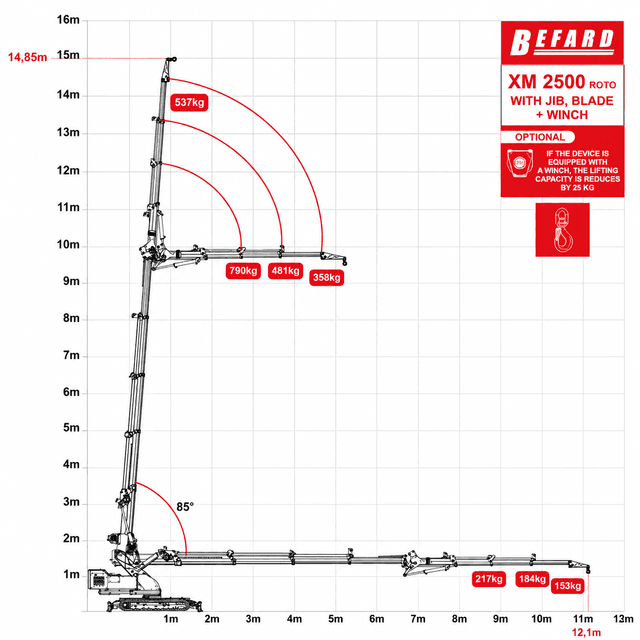

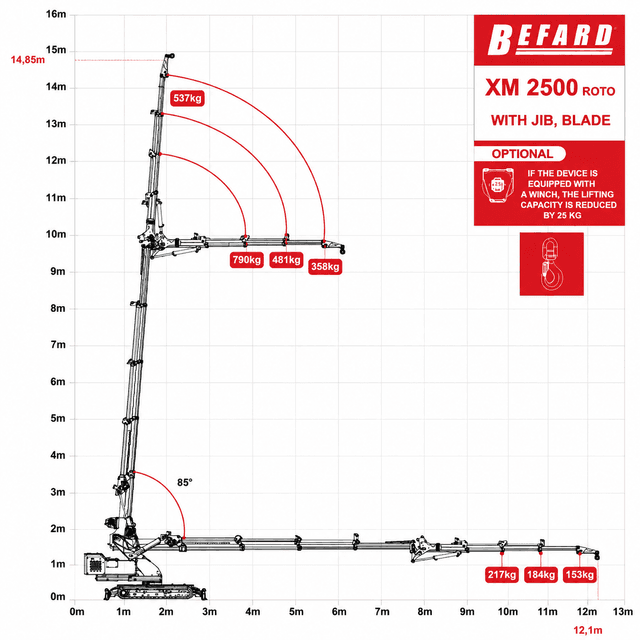

Maximum vertical reach with hydraulic jib and search hook |
14,85 m |
|

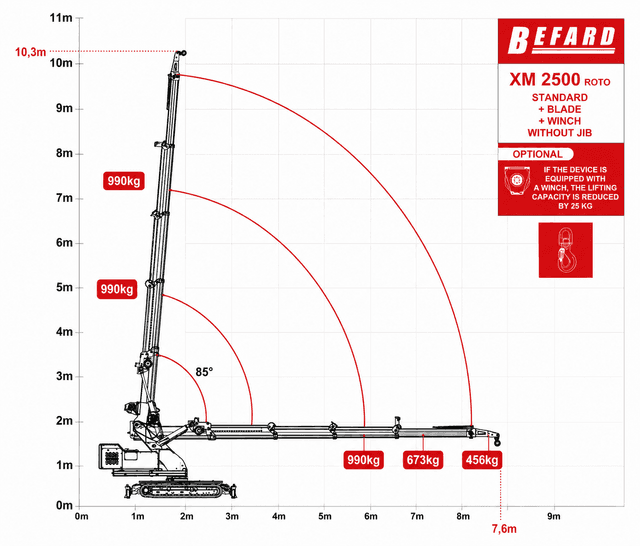

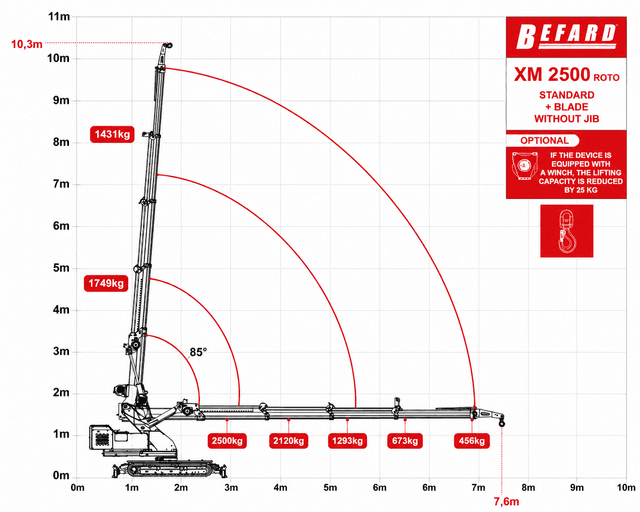

Maximum vertical range standard version |
9,8 m |
|
Maximum horizontal reach with hydraulic jib and search hook |
12,1 m |
|
Maximum horizontal range standard version |
7,1 m |
|

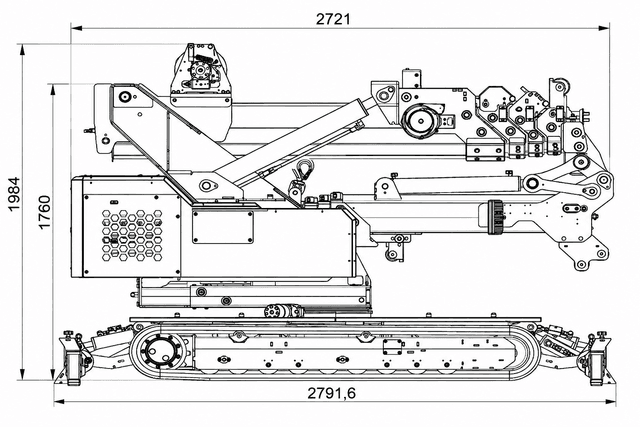

Transport height |
1,98 m |
|
Transport width |
0,89 m |
|
Transport length |
2,79 m |
|
Caterpillars |
Non-marking |
|
Chassis |

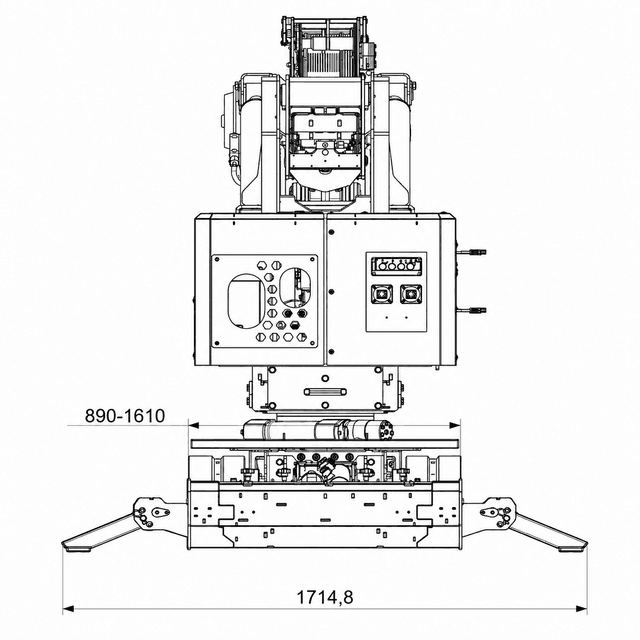

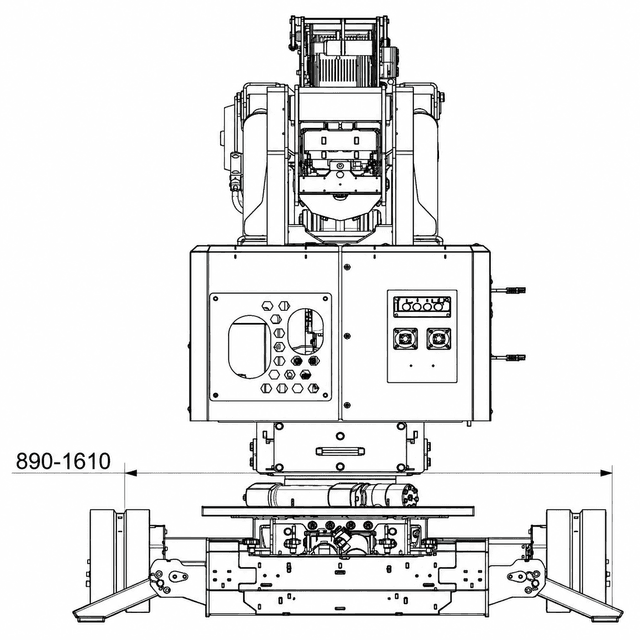

Hydraulically extendable (890-1610 mm) The chassis, equipped with 18 rollers with shock absorption, allows for better adaptation of the chassis to uneven terrain, ensuring high stability and smooth movement. |
|
Clearance |
0,12 m |
|
Rotating column |
Infinite rotation |
|
Arm opening angle |
85° |
|
LED lamp |
2 szt. • fixed lamp • magnet lamp |
|
Weight of the device with full equipment |
~2500 kg |
Optional equipment

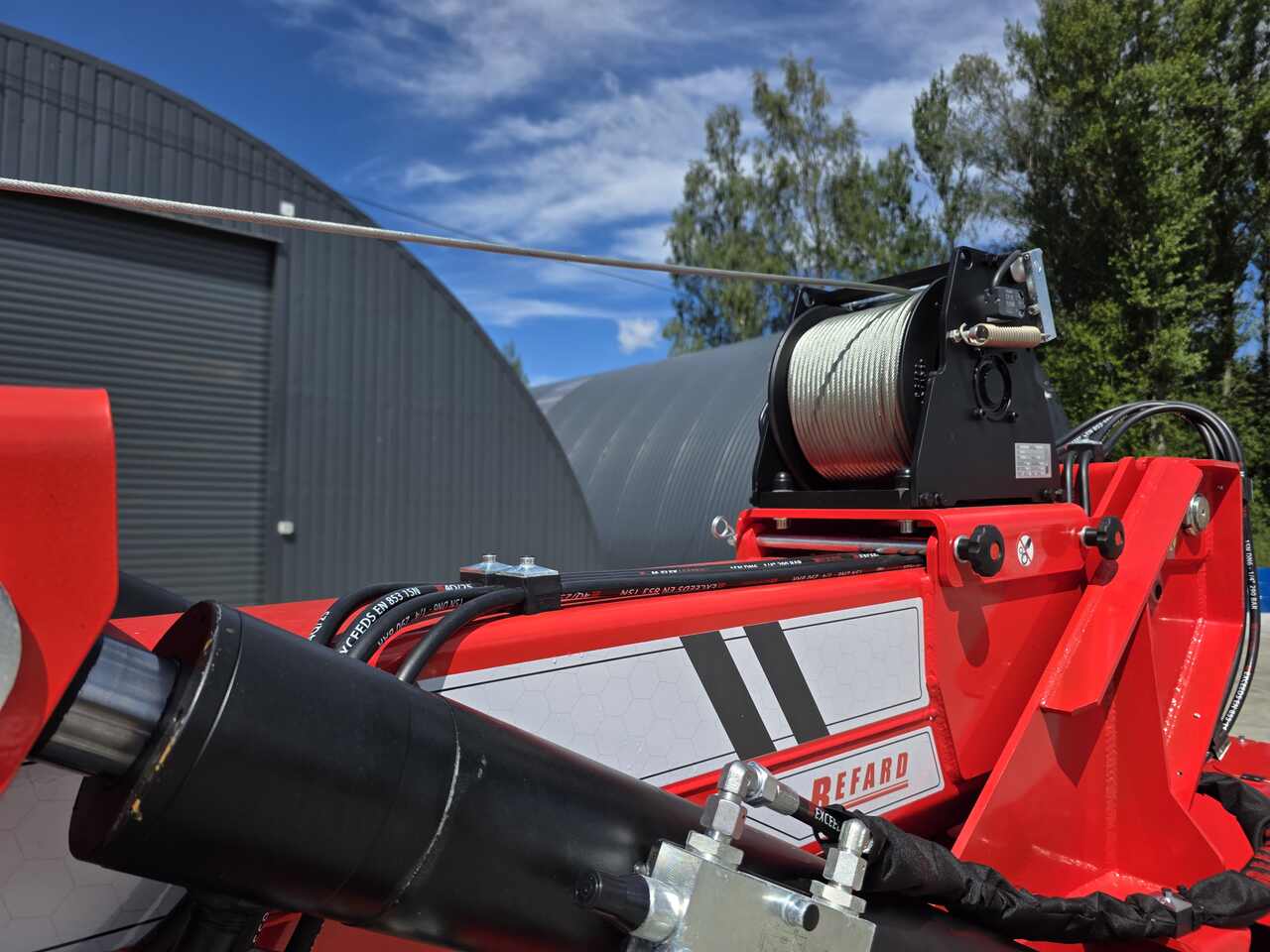

| Winch |
Hydraulic winch: •990 kg with 60 m of 7 mm steel rope |
| Powered by Li-ion batteries | By choosing Li-ion battery power, this is the only power source for the machine; you can operate it wired while charging. By choosing 3-in-1 power, you have all three power types. |
| Power supply from 230V or 110V mains | Additional power supply from the 230 V mains (operation via mains cable). Optionally also available 110 V (USA) or 400 V (three-phase) – applies to the combustion version or the 3-in-1 version. |

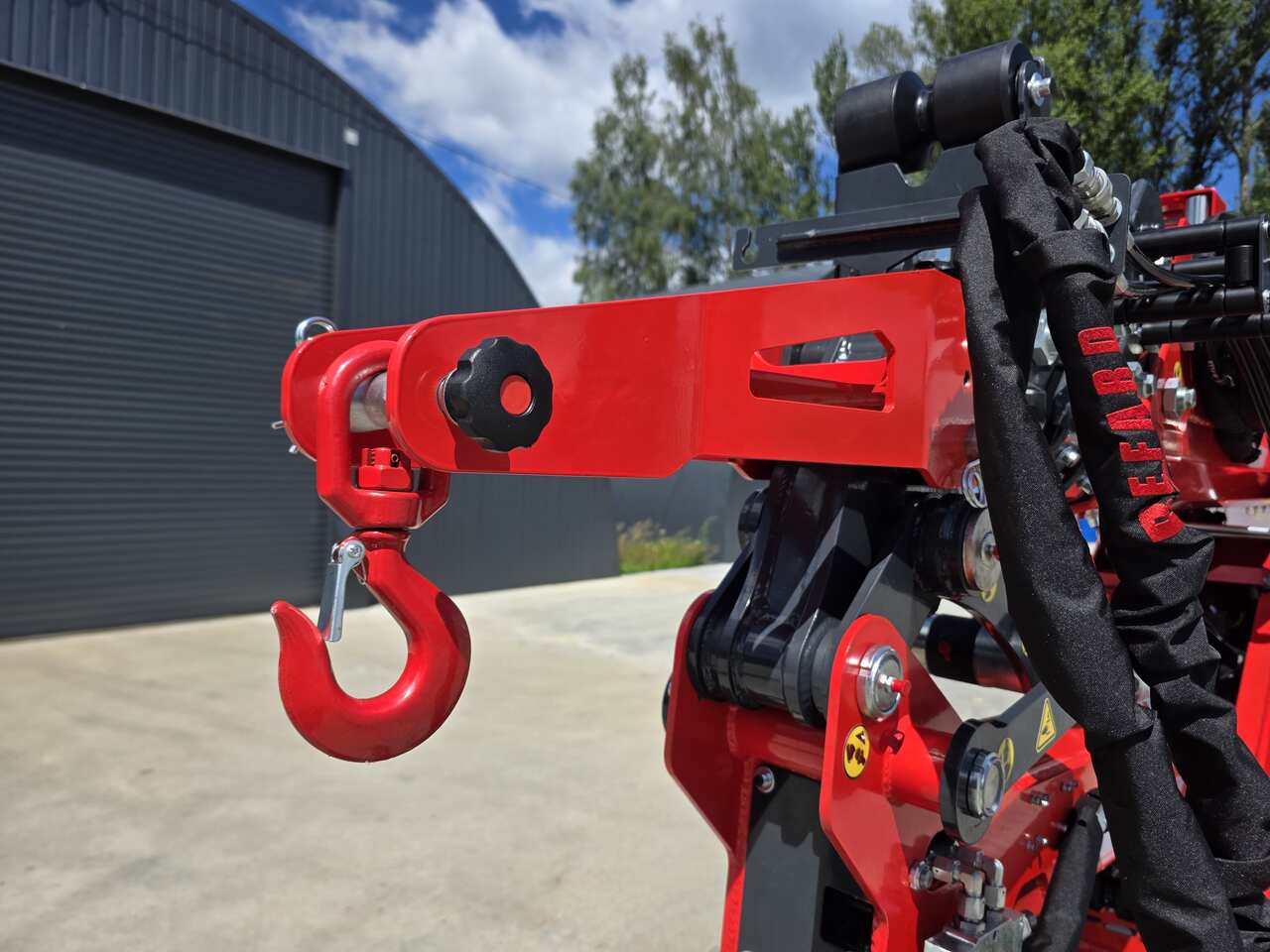

| Searching hook | Search hook with 6 positions, increasing reach by approx. 500 mm |
| Radio control with display | Optionally, you can choose control with an LCD display. |
| RAL color | Selection of any machine color from the RAL palette. |
| Ramps | Aluminum ramps with a choice of lengths |
