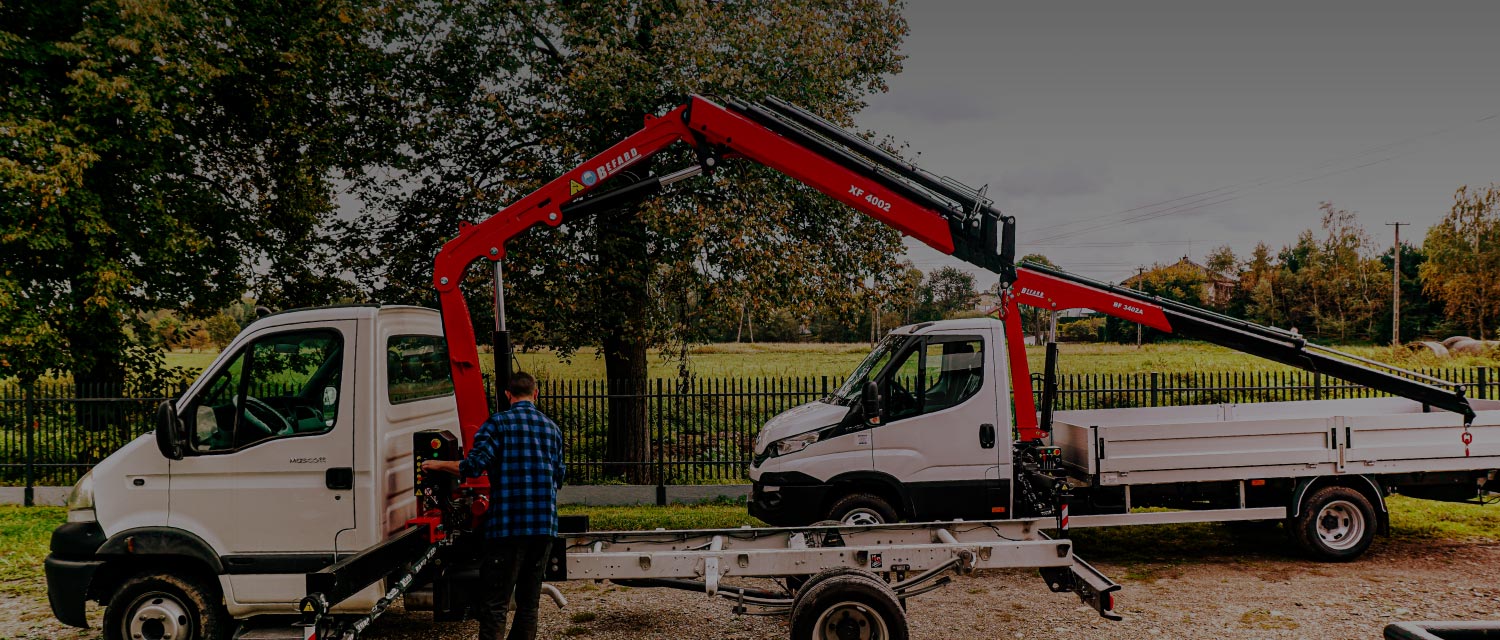

BEFARD XF 4002

Maximum hoist capacity: 2000 kg. Maximum reach with manual extension: 9600 mm.

BEFARD XF is a series of double-boom loader cranes designed to be mounted on light trucks such as: Iveco 50c15, Renault Mascot and smaller HGV trucks such as Mercedes Atego, Iveco Eurocargo and others. Depending on the specific configuration, BEFARD XF cranes can be equipped with one, two, three or even four hydraulic extensions. The increased number of extensions enables the machine to work over longer distances.

Each BEFARD XF crane can be retrofitted with a wide range of different working attachments, such as:

  • bulk material buckets,
  • hydraulic and electric winches,
  • hydraulic rotators,
  • digging buckets,
  • multi-purpose buckets,
  • crane grab buckets,
  • multi-purpose grabs and grippers.
The CE version meets the essential requirements of the Machinery Directive 2006/42/CE and Directive 2014/30/EU
STOP safety switch
Double-action locks for extension cylinders
Reinforced hydraulic hoses
Hydraulically lowered (up and down) supports on both sides
Spring protections to protect the support beams against uncontrolled sliding out
2 t hook
Sliding sleeves made of bronze
Radio controlled

Specification:

BEFARD XF40024002 A4002 B4002 C
Lifting torque 41 kNm 39 kNm 38 kNm 37 kNm
Maximum hoist capacity 2000 kg 1890 kg 1830 kg 1750 kg
Hydraulic extension 5200 mm 6600 mm 8100 mm 9600 mm
Maximum reach with manual extension 9600 mm 9600 mm 11200 mm 11200 mm
Height of the crane 1800 mm 1800 mm 1800 mm 1800 mm
Transport width 2300 mm 2300 mm 2300 mm 2300 mm
Foot extension 5020 mm 5020 mm 5020 mm 5020 mm
Slewing angle 210°-360° 210°-360° 210°-360° 210°-360°
Swivel torque 7 kNm (18 MPa) 7 kNm (18 MPa) 7 kNm (18 MPa) 7 kNm (18 MPa)
Extension upward elevation angle 70° +16° 70° +16° 70° +16° 70° +16°
Downward drop angle 45° 45° 45° 45°
Working pressure 230 bar 230 bar 230 bar 230 bar
Pump operating pressure 280 bar
recommended
280 bar
recommended
280 bar
recommended
280 bar
recommended
Flow pump 16 l/min
recommended
16 l/min
recommended
16 l/min
recommended
16 l/min
recommended
Weight 650 kg 700 kg 735 kg 790 kg

The recommended pump flow, given in the card, may change depending on the power supply and the specification of the device that will be mounted to the crane. In standard applications, this is the maximum value.

The device meets the requirements of the Machinery Directive 2006/42/EC and Directive 2014/30/EU

All BEFARD devices are covered by a 12-month warranty.

The warranty will not be valid if the crane uses a power supply other than that of the Binotto manufacturer (excluding electric and diesel power units).





XF 4002.13.ANGXF 4002A.12.ANGXF 4002B.12.ANGXF 4002C.11.ANG
