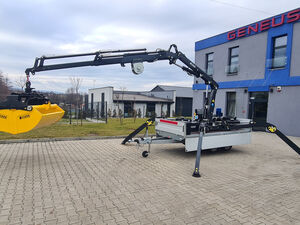

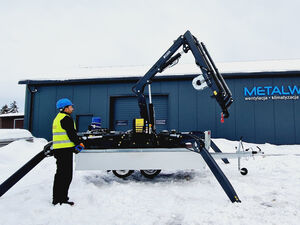

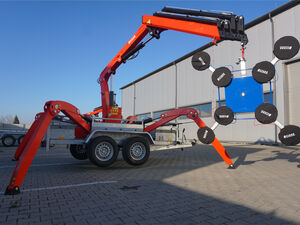

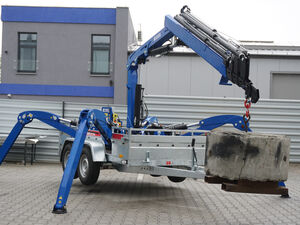

The BEFARD XJ TRAILER CRANE is a modern solution used for material handling. It is compatible with various types of grippers and can be used both for handling as well as for and assembly of sandwich panels and glass.

The device is completely self-contained and independent. It is driven by its own engine. Depending on configuration, trailer-mounted cranes can have outreach from 8 to even 12 metres. They can be equipped with 4 hydraulic extensions, to increase outreach and offer more working possibilities to users.

Due to its weight, the trailer can be pulled by practically any light truck, and it has two axles equipped with brakes.


registered for full hoist capacity
maximum hoist capacity 1600 kg
hydraulic extensions with a total reach of 9.6 m
extension fitted with textolite slides
crane made of WELDOX 700 Swedish steel
internal-combustion power supply - VANGUARD petrol engine (electric start up)
control from the distributor

The device meets the requirements of the Machinery Directive 2006/42/EC and Directive 2014/30/EU

All BEFARD devices are covered by a 12-month warranty, which can be extended to 36 months.

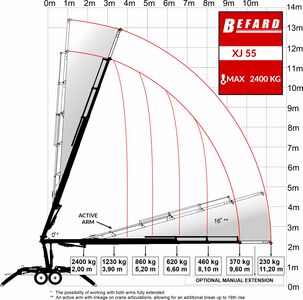

BEFARD XJ 55 Technical drawings IMG 01
