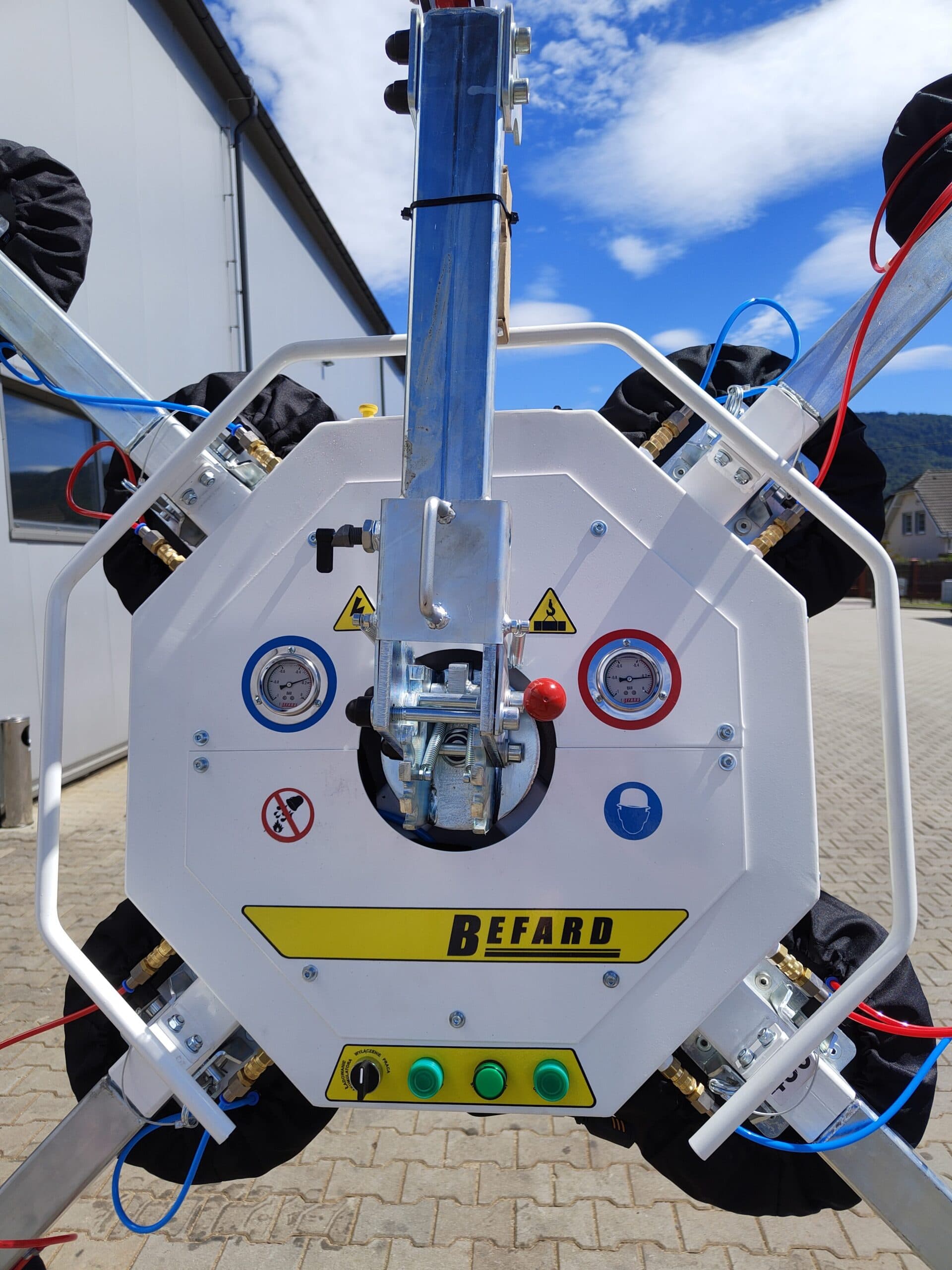

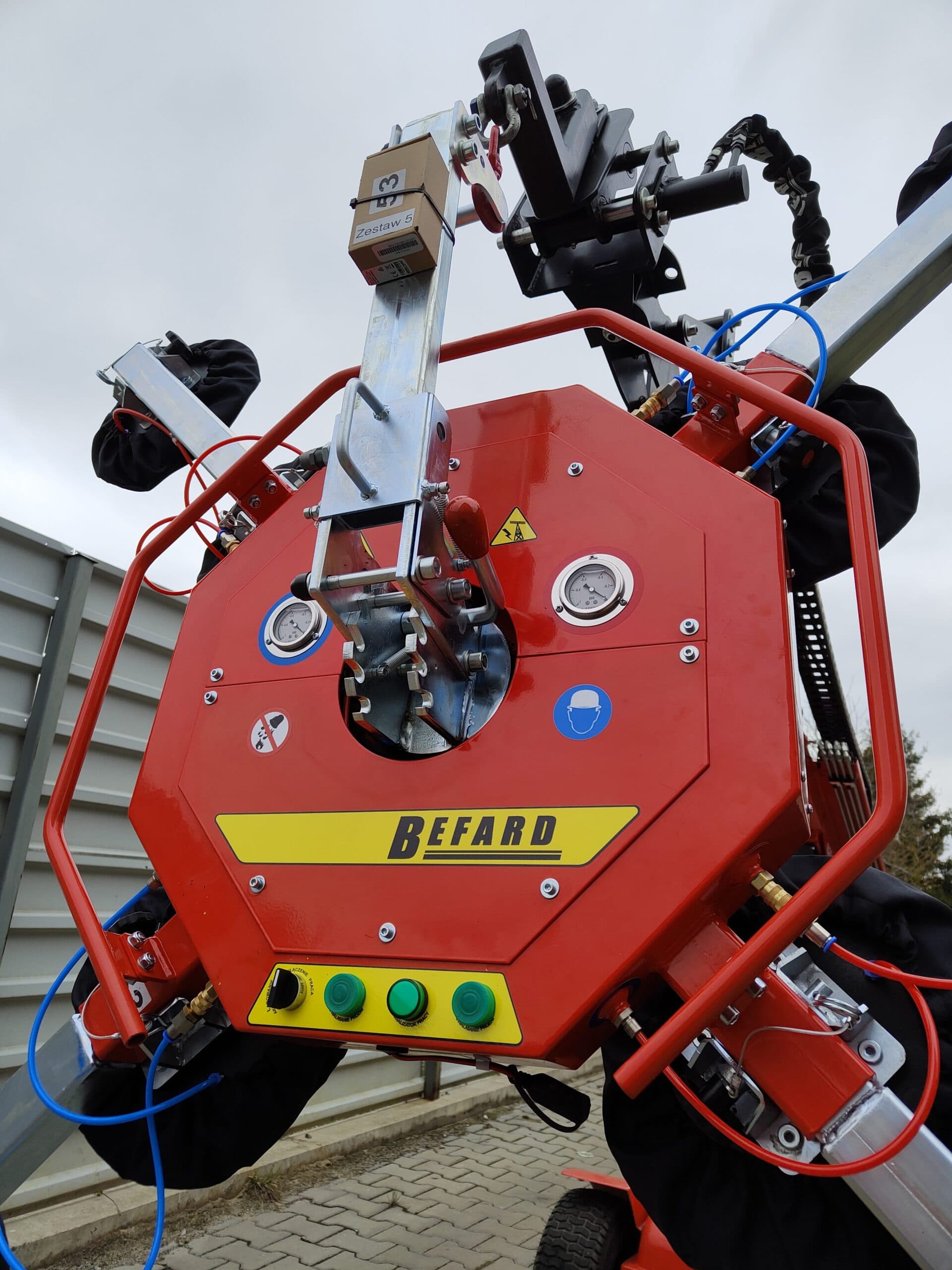

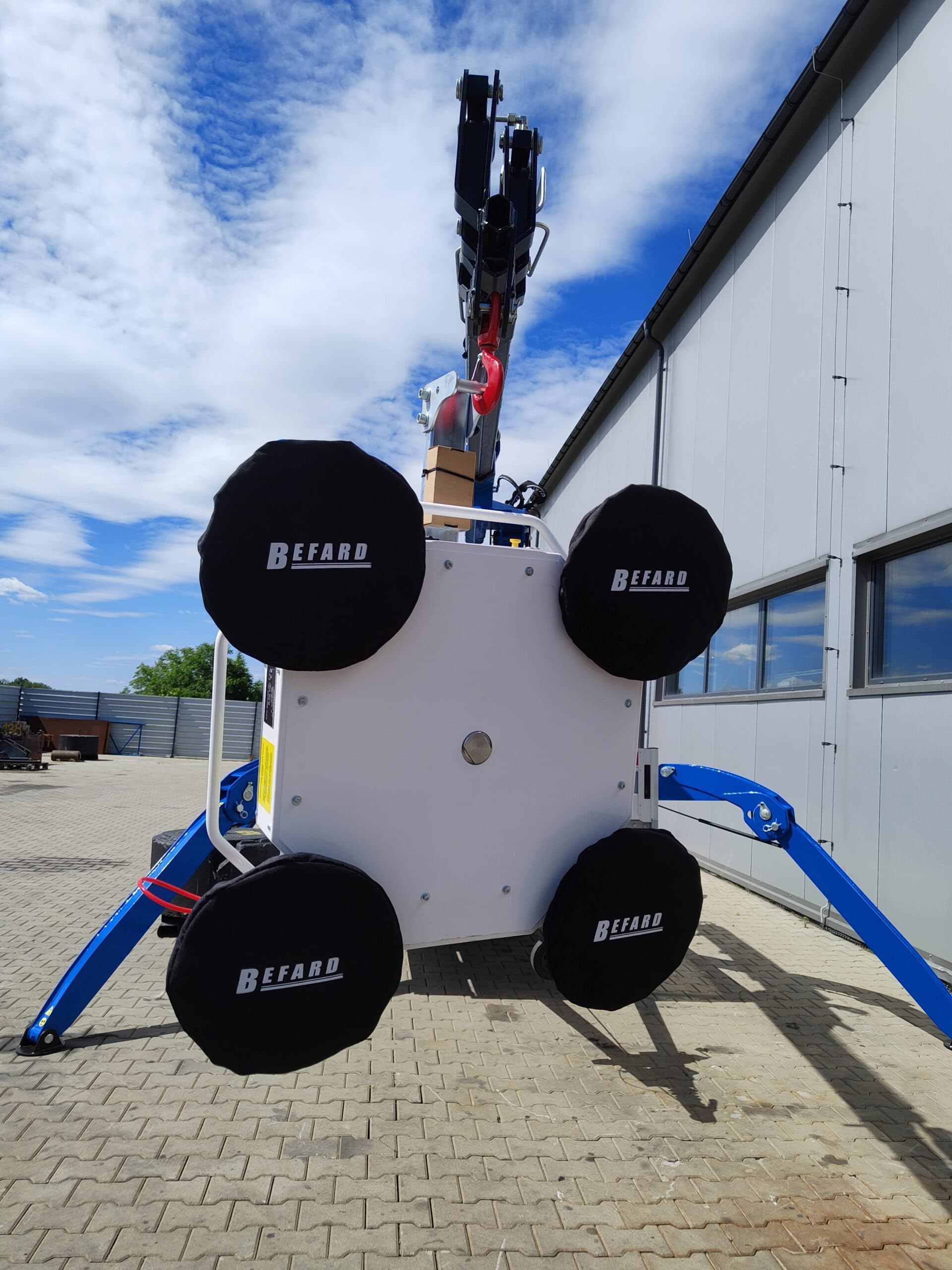

BEFARD vacuum grippers are available in various variants, differentiated in terms of lifting capacity and the number of suction cups. Individual versions of BEFARD XP vacuum grippers are devices adapted to different needs of users. The BEFARD XP gripper is designed for carrying, lifting and installing windows and glass.
Download the device data sheet:
BEFARD XP karta katalogowa.pdf1.8 MB

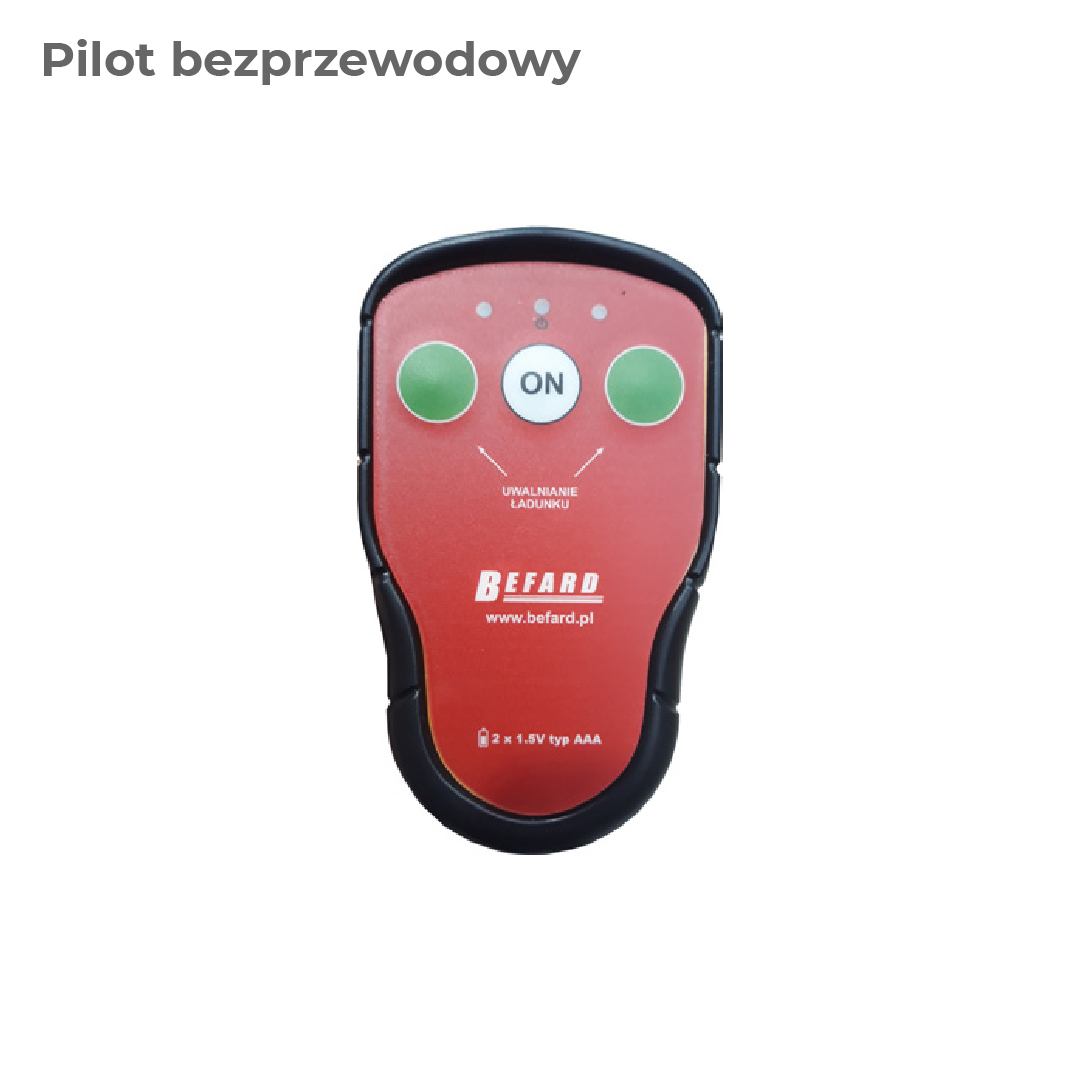

360° manual rotation, locked every 45° Two independent vacuum circuits, each of them protected Integrated vacuum measuring and monitoring device Smooth, stepless manual tilting Easy, individual configuration of the suction cups, without the use of specialist tools Vacuum remote control and charger with battery level indicator Specification:
BEFARD XP 802 Number of suction cups 10 pieces Size of suction cups Ø 310 mm Vacuum system two-circuit Min/max vacuum -0,6 / -0,8 bar Power supply 12 V battery Hoist capacity 800 kg The device meets the requirements of the Machinery Directive 2006/42/EC and Directive 2014/30/EU
All BEFARD devices are covered by a 12-month warranty
