BEFARD XP 902

Vacuum gripper for glass and windows.Hoist capacity: 900 kg. Number of suction cups: 12 pieces.

BEFARD vacuum grippers are available in various variants, differentiated in terms of lifting capacity and the number of suction cups. Individual versions of BEFARD XP vacuum grippers are devices adapted to different needs of users. The BEFARD XP gripper is designed for carrying, lifting and installing windows and glass.

Download the device data sheet:

pdfBEFARD XP karta katalogowa.pdf1.8 MB

360° manual rotation, locked every 45°
Two independent vacuum circuits, each of them protected
Integrated vacuum measuring and monitoring device
Smooth, stepless manual tilting
Easy, individual configuration of the suction cups, without the use of specialist tools
Vacuum remote control and charger with battery level indicator

Specification:

 BEFARD XP 902
Number of suction cups 12 pieces
Size of suction cups Ø 310 mm
Vacuum system two-circuit
Min/max vacuum -0,6 / -0,8 bar
Power supply 12 V battery
Hoist capacity 900 kg

The device meets the requirements of the Machinery Directive 2006/42/EC and Directive 2014/30/EU

All BEFARD devices are covered by a 12-month warranty

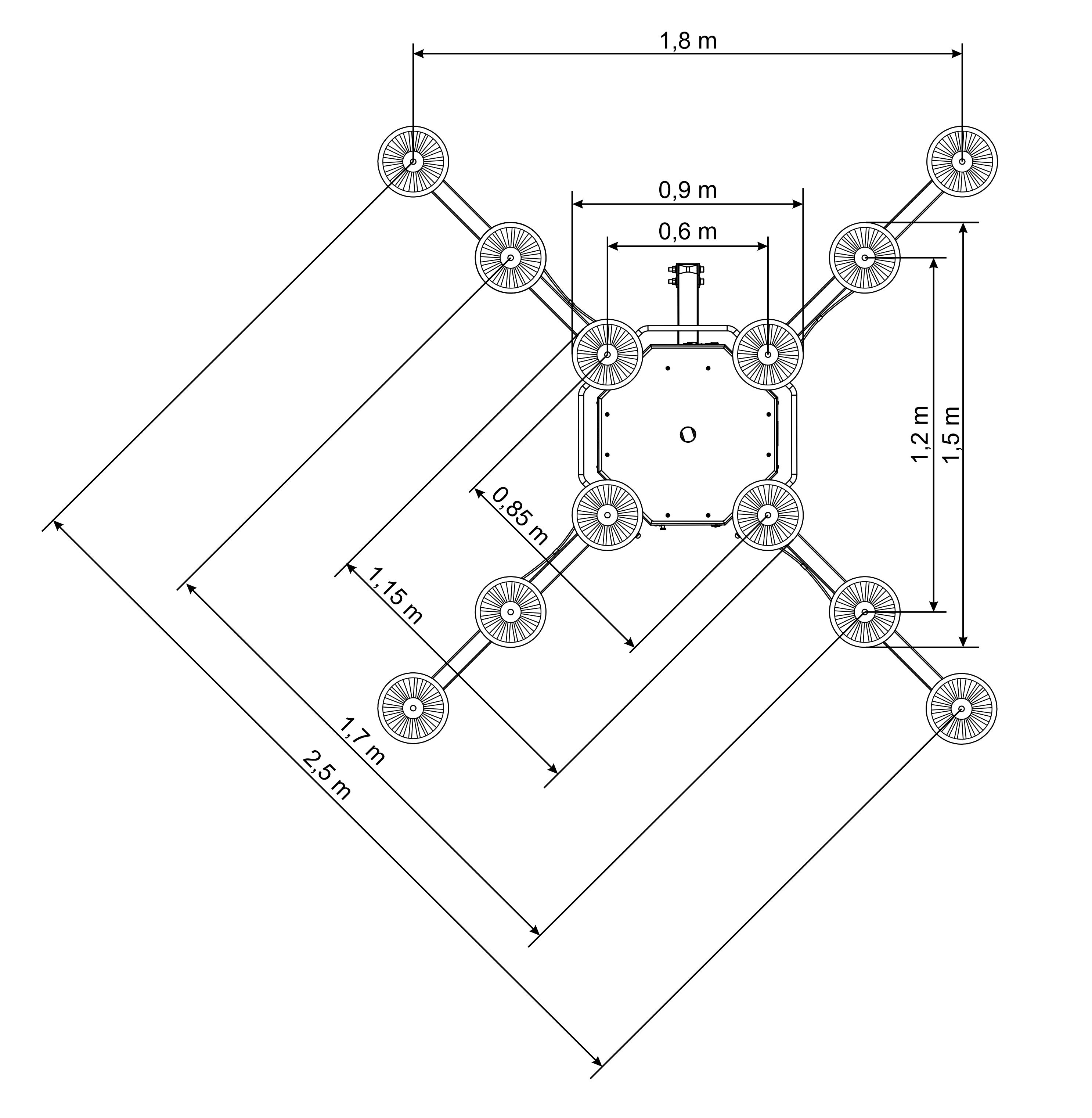

Opis XP nowy mocowanie haka angXP 900 nowy wymiaryWysokosc chwytaka XP nowy ang
BEFARD XP 900 Technical drawings IMG 02
BEFARD XP 900 Technical drawings IMG 03



BEFARD 902 vacuum gripper for glass and windowsBEFARD vacuum gripper for glass and windowsBEFARD XP vacuum gripper for glass and windows
