BEFARD XR 500

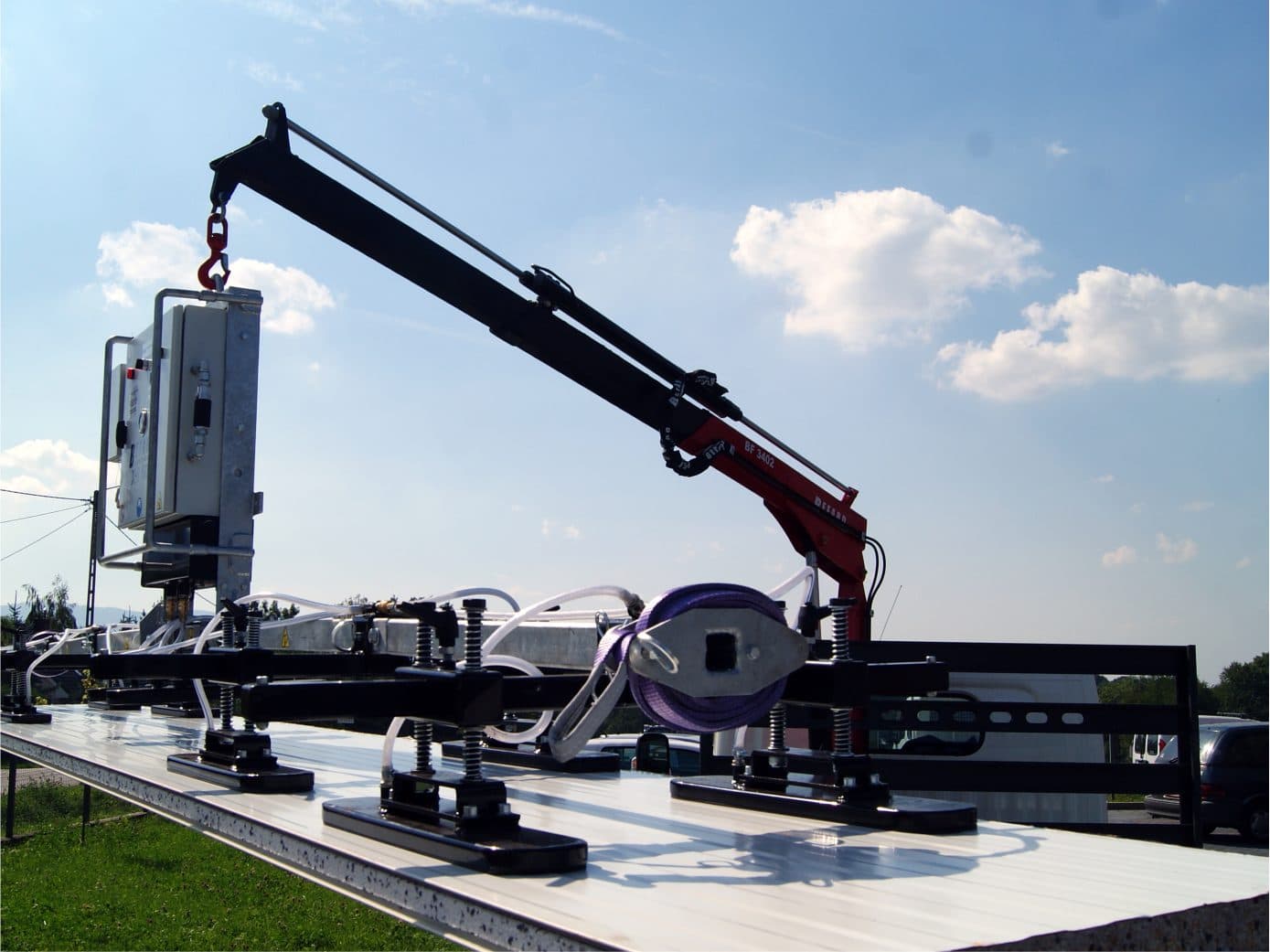

Vacuum gripper for sandwich panels. lifting capacity: max. 600 kg.

The BEFARD XR 500 vacuum gripper is designed to work in various conditions thanks to its individual configuration.

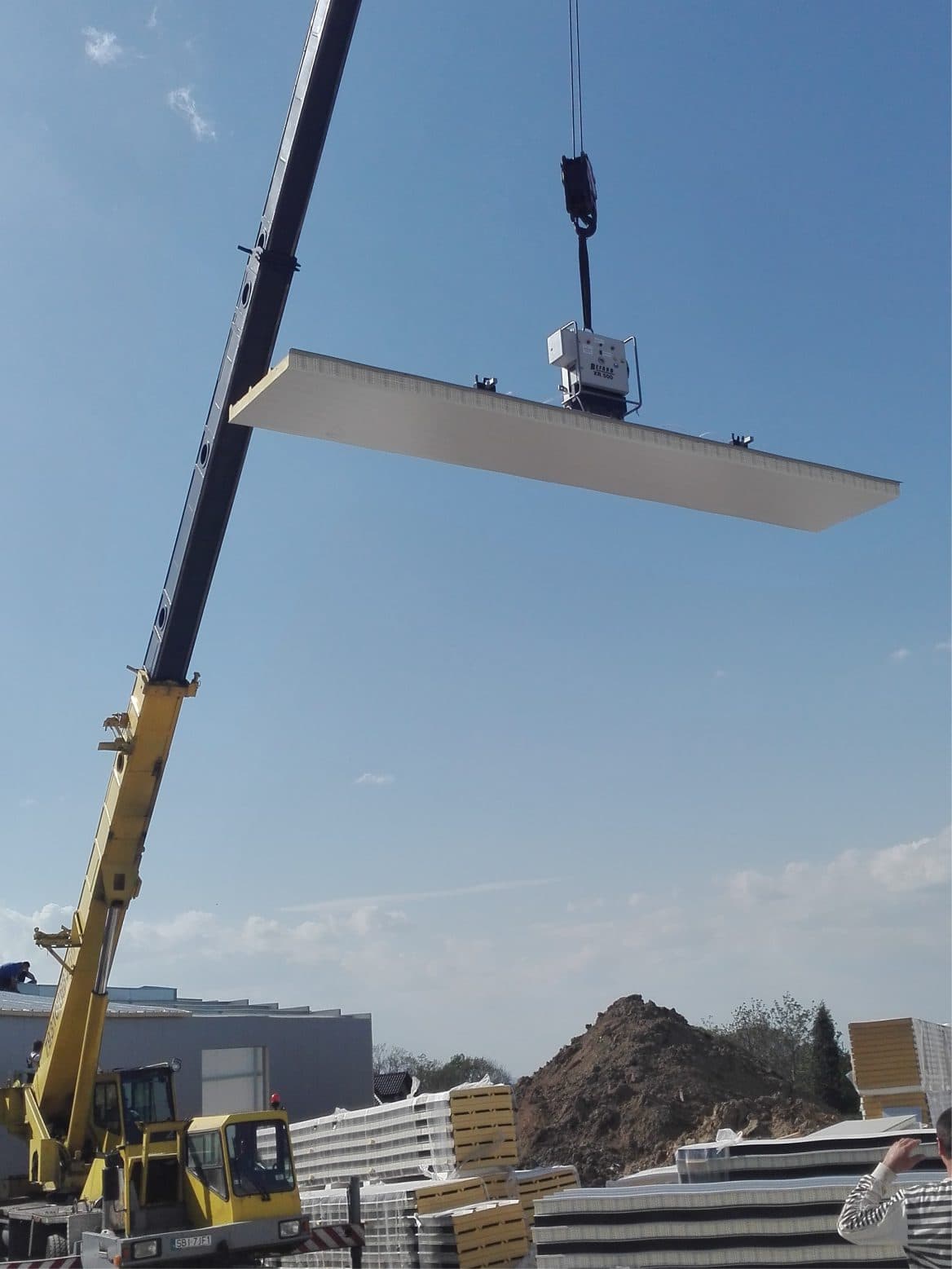

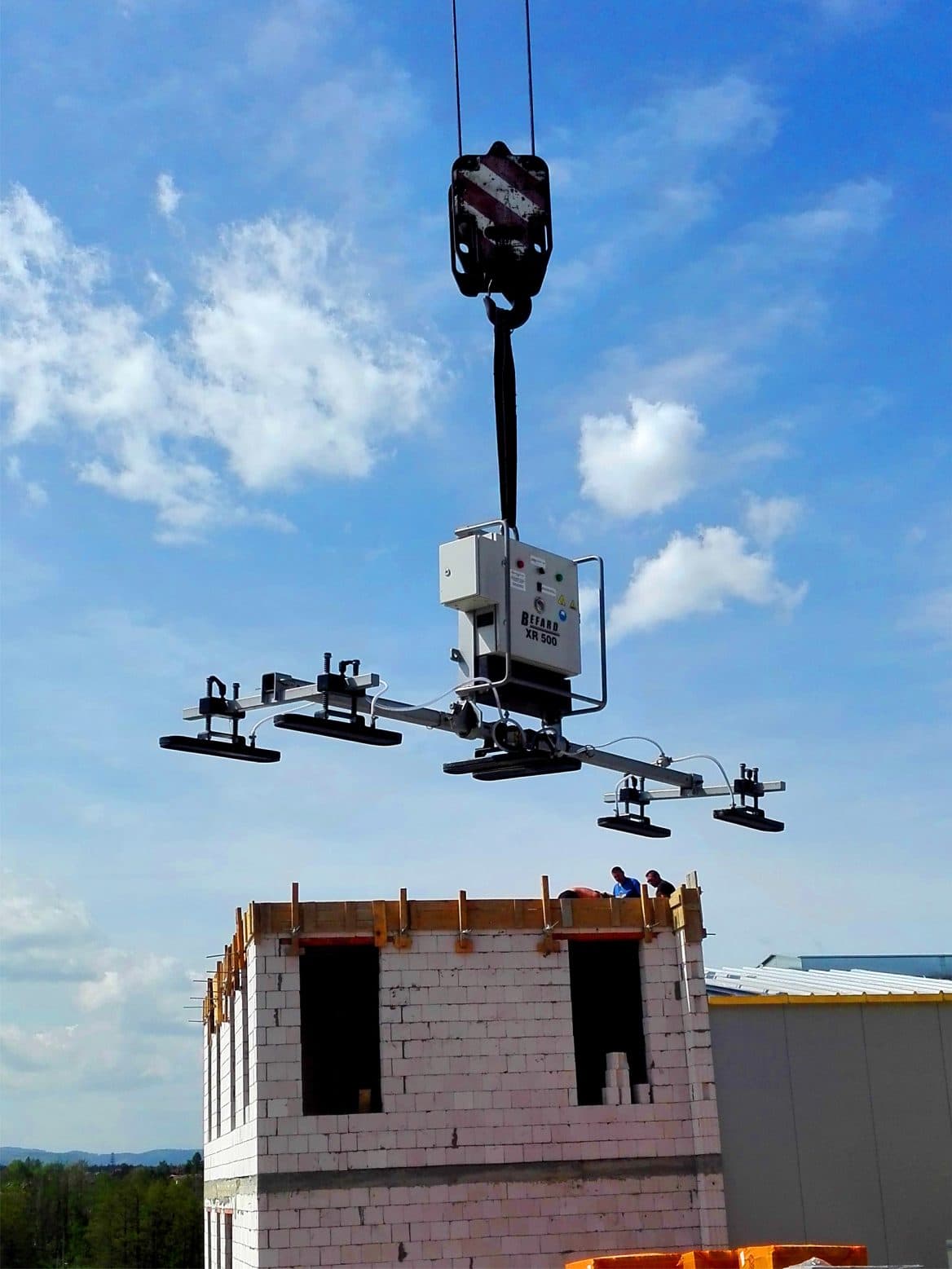

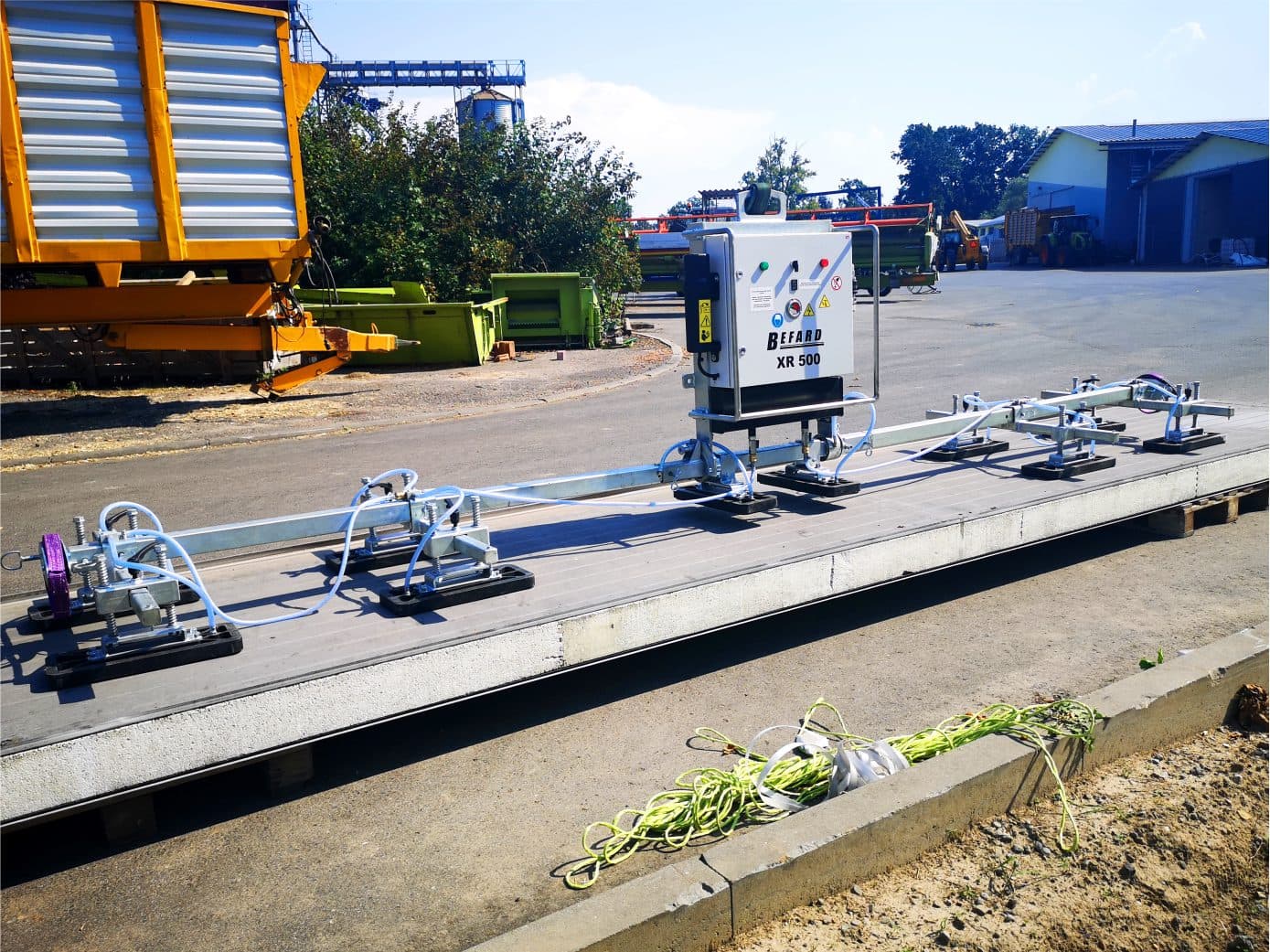

The BEFARD XR 500 series gripper is designed for transporting, lifting and installation of:

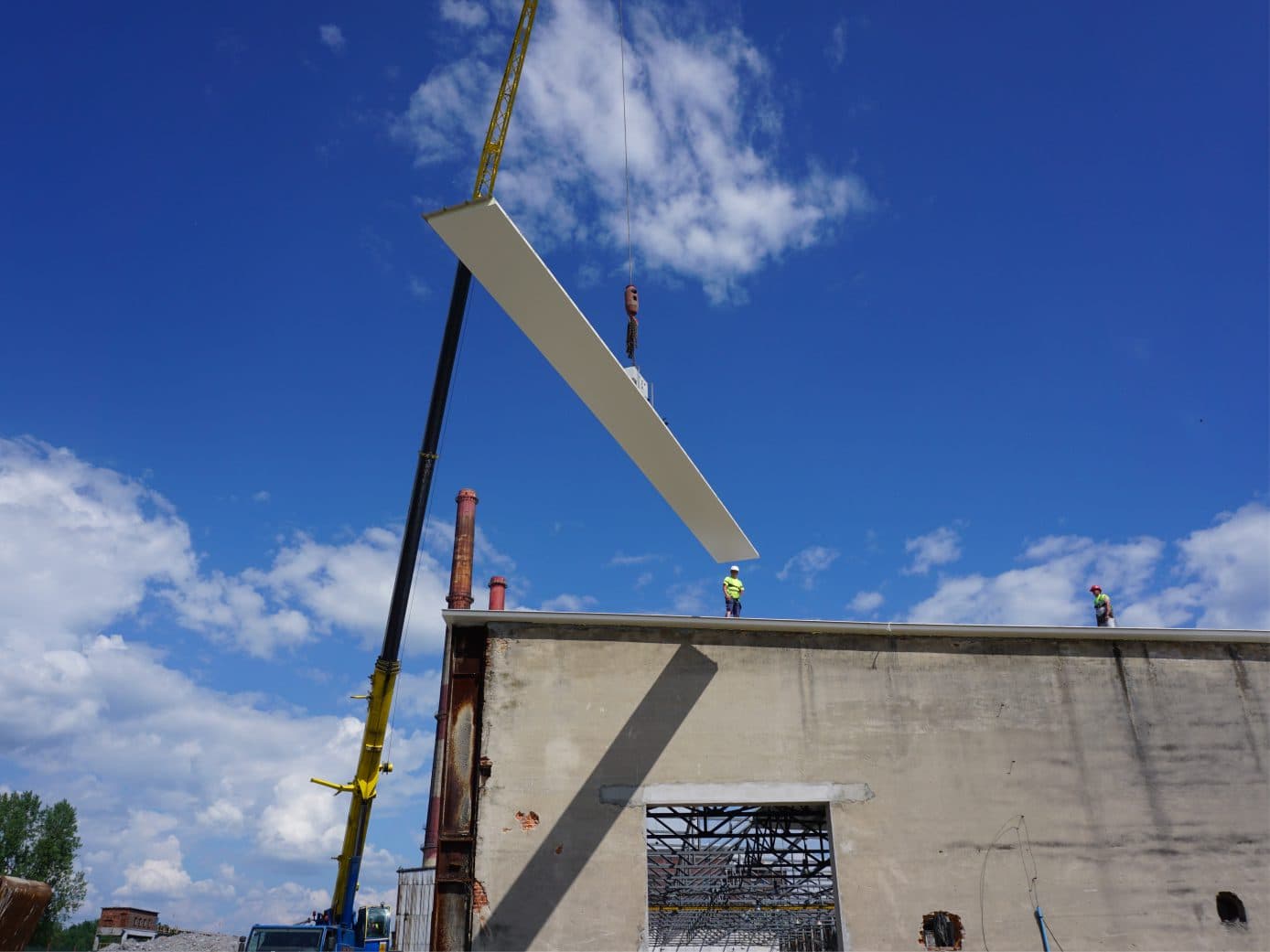

  • wall panels, horizontal and vertical ones, up to approx. 14 metres long (depending on panel filling)

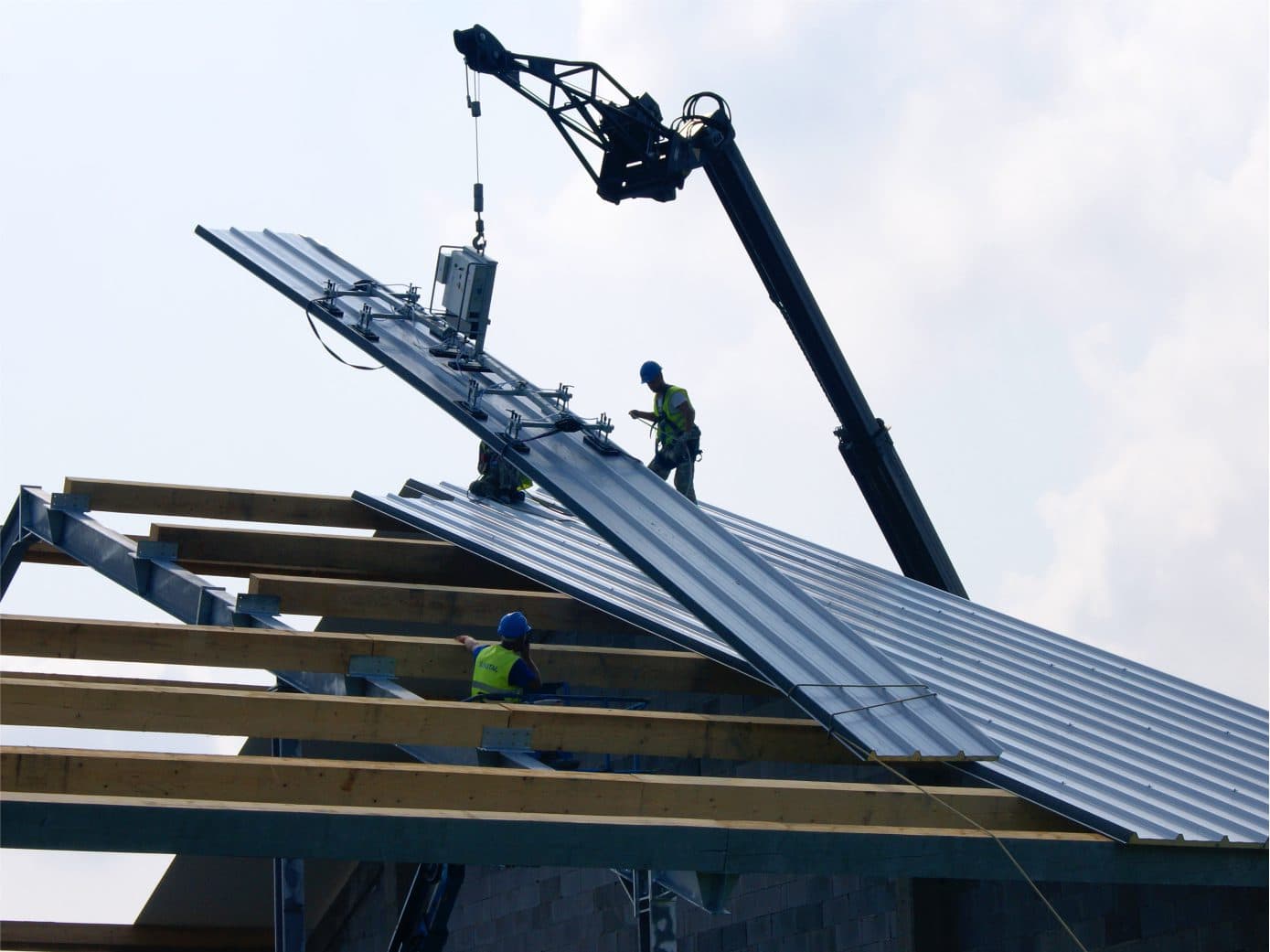

  • roof panels up to approx. 14 metres long (depending on panel filling)
  • other panels, e.g. with sinusoidal profile (specially adapted suction cups)

Download the device data sheet:

pdfXR500_PRODUCT_DATA_SHEET.pdf2.64 MB

Wyposażenie standardowe:

Additional extension element 4 pcs (up to 8 pieces can be added)
Roof set 2x2 slings - without suction cups (1 set)
Suction cup 160 mm x 430 mm - hoisting capacity: 75 kg (8 pieces)
Wall suction cups 160 mm x 430 mm hoisting capacity = 150 kg (1 set)
Roof set, intermediary, 2x2 slings - without suction cups (1 set)
Safety belts for roof and wall panels (1 set)
Fittings for roof safety belts

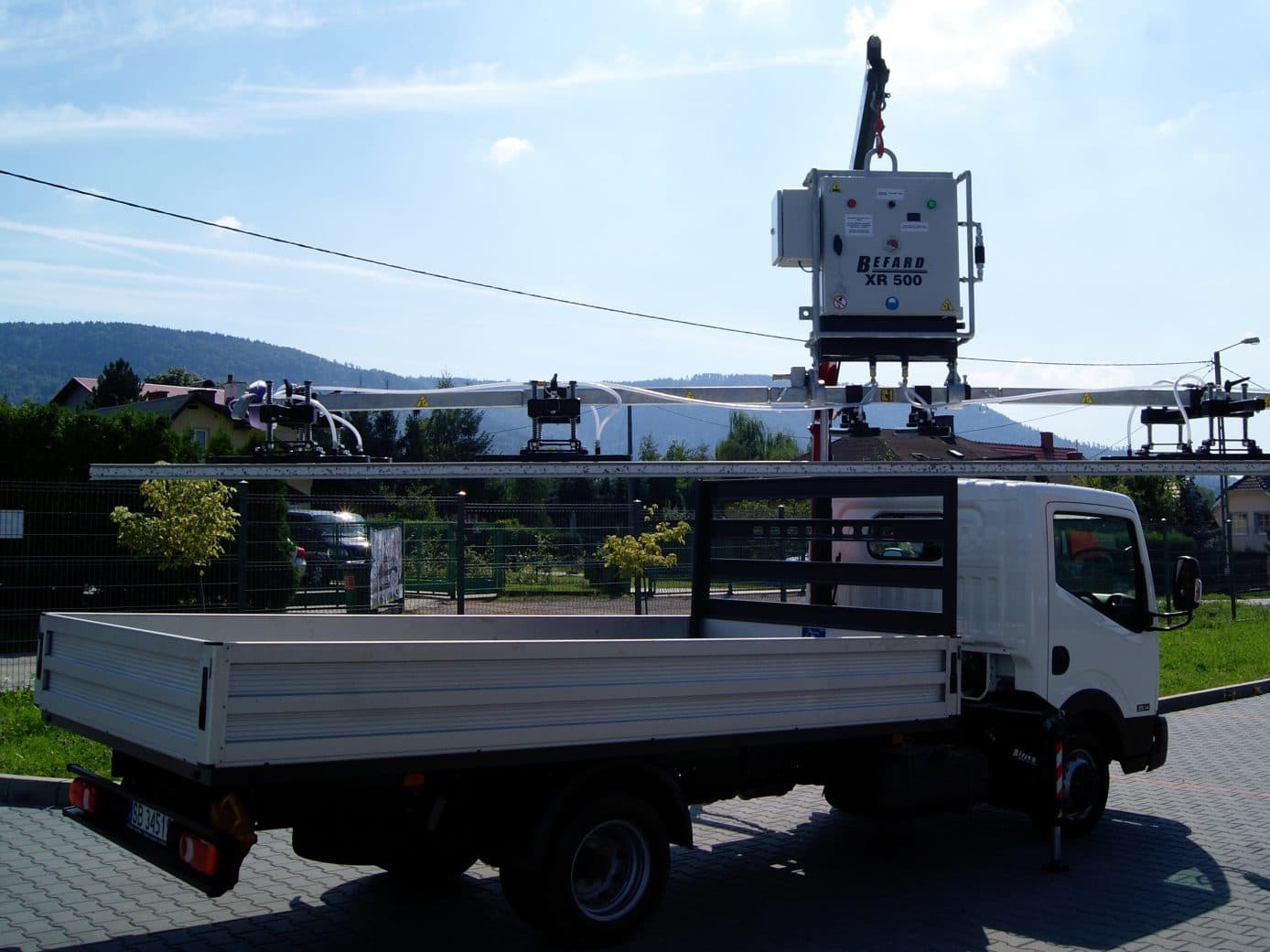

Transporting wheels
Transporting basket

Specification:

 BEFARD XR 500
Hoisting capacity
depending on the number of suction cups
8 pcs. x 75 kg = 600 kg
Weight 225 kg (depending on configuration)
Power supply by internal battery (2x 12 V)
Battery level indicator yes
Vacuum audible low vacuum warning, large vacuum tank, integrated vacuum measuring devices
Additional safety devices belts
Other easy, individual suction cup configuration without the use of specialist tools

The device meets the requirements of the Machinery Directive 2006/42/EC and Directive 2014/30/EU

All BEFARD devices are covered by a 12-month warranty, which can be extended to 36 months.

BEFARD XR 500 Technical drawings IMG 01
