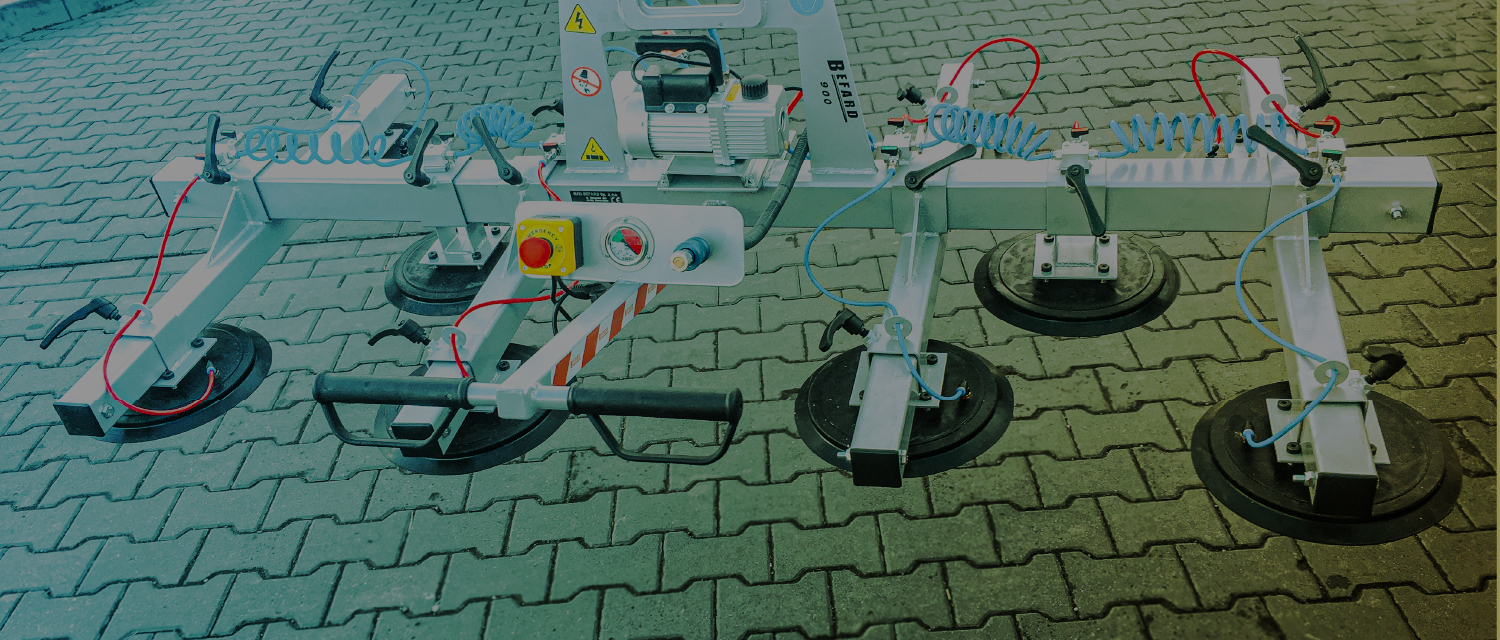

Vacuum gripper for sheets and countertops BEFARD XS 360

Vacuum gripper for sheets, plates and worktops. Designed for horizontal work. Hoisting capacity max. 360 kg. Number of suction cups: 4 pc.

The BEFARD XS vacuum gripper is a device installed on the hook of any lifting device, designed to transfer sheets, plates and worktops to cutters and storage racks. The BEFARD XS 360 model allows to grip loads with a maximum weight of 360 kg.

Download the device data sheet:

pdfXS_PRODUCT_DATA_SHEET.pdf1.76 MB

Power supply from the mains
Horizontal working is available
Gripping of any material sheets
Quick fastening and removal of cargo
Reduced costs and increased safety
4 x Ø 310 mm suction cups (manual distance adjustment)

Specification:

 BEFARD XS 360
Number of suction cups 4 pieces
Size of suction cups Ø 310 mm
Vacuum system single circuit
Min/max vacuum -0,6 / -0,8 bar
Power supply from the mains
Hoist capacity 360 kg

The device meets the requirements of the Machinery Directive 2006/42/EC and Directive 2014/30/EU

All BEFARD devices are covered by a 12-month warranty.

Vacuum gripper for sheets BEFARD XS 360
