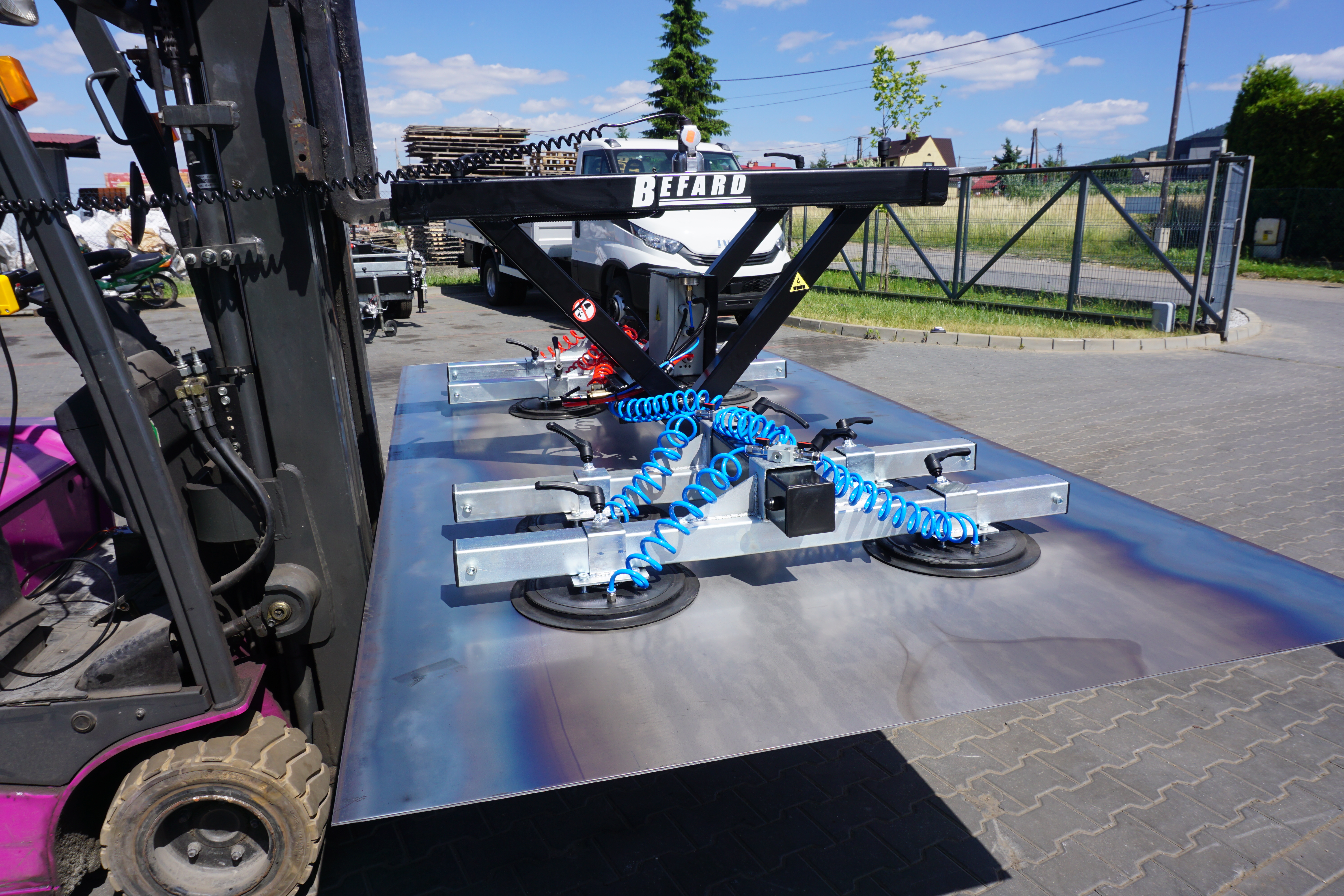

The BEFARD XW vacuum gripper is a gripping device for sheets and countertops intended for use in conjunction with forklifts. A specially prepared construction makes BEFARD XW compatible with the standard fork spacing of a forklift. It is possible to adjust the mounting spacing to a different size of forks, e.g. a telescopic loader. The device is used to transport metal sheets to e.g. laser and plasma cutters, etc. Unlike magnetic grippers, it enables trouble-free lifting of individual metal sheets from metal stacks. Comes with a remote control to open and close the vacuum system.
Download the device data sheet:
XW650_PRODUCT_DATA_SHEET.pdf801.98 KB
Product features
Lowering costs and increasing safety Manual adjustment of the spacing of the suction cups Integrated vacuum measurement and monitoring device Designed to work horizontally Easy, individual configuration of the suction cups, without the use of specialized tools Quick lashing and unlashing of the load Specification:
BEFARD XW 650 Vacuum systemy dual-circuit Suction cups ⌀ 310 mm Min/max vacuum -0,6/ -0,8 bar Lifting capacity
4 Suction cups - 360 kg
6 Suction cups - 540 kg
8 Suction cups - 720 kg
10 Suction cups - 900 kg
12 Suction cups - 1080 kg
14 Suction cups - 1260 kgThe device meets the requirements of the Basic Machinery Directive 2006/42 / EC and Directive 2014/30 / EU.
All BEFARD devices are covered by a 12-month warranty.
