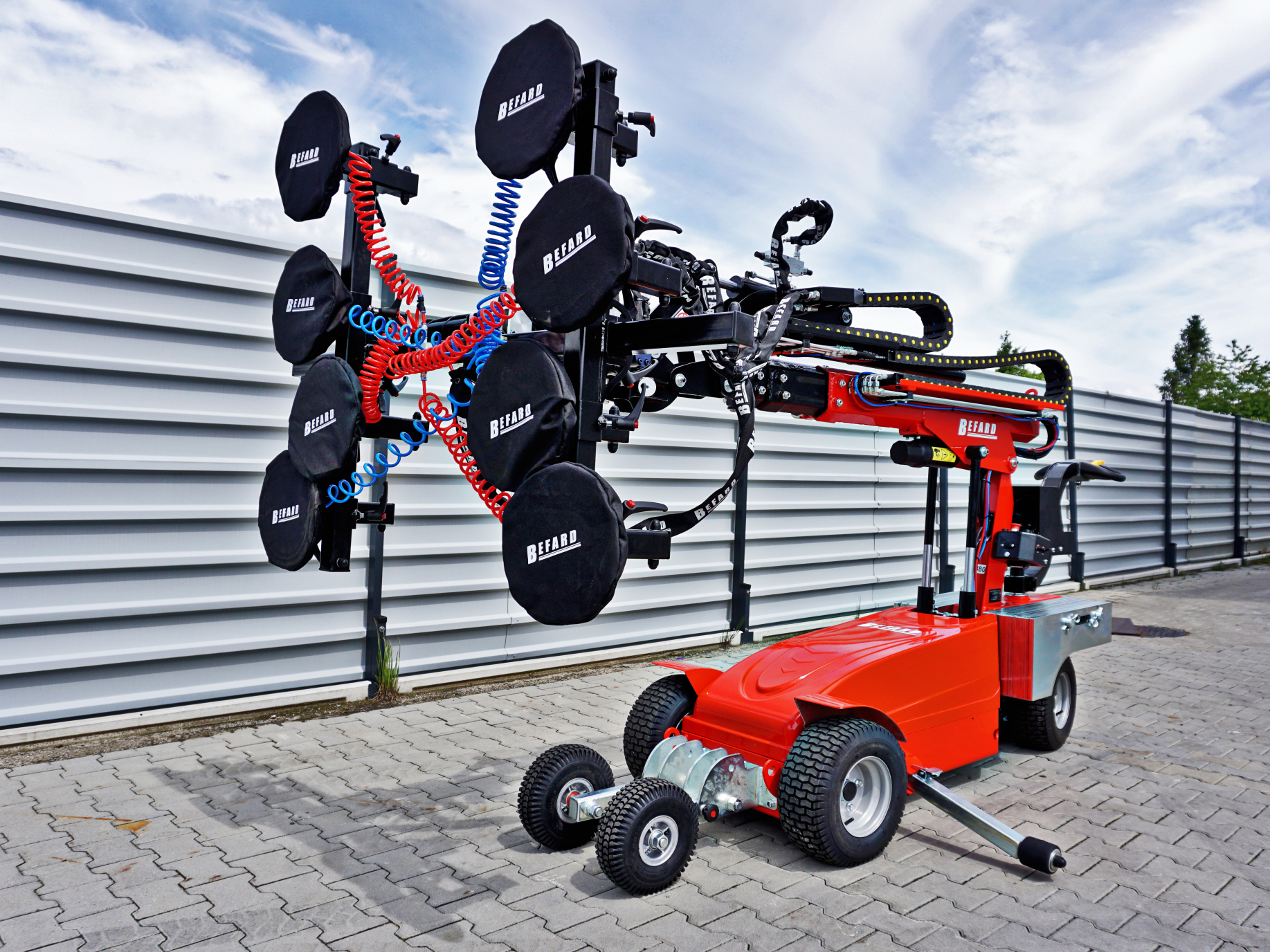

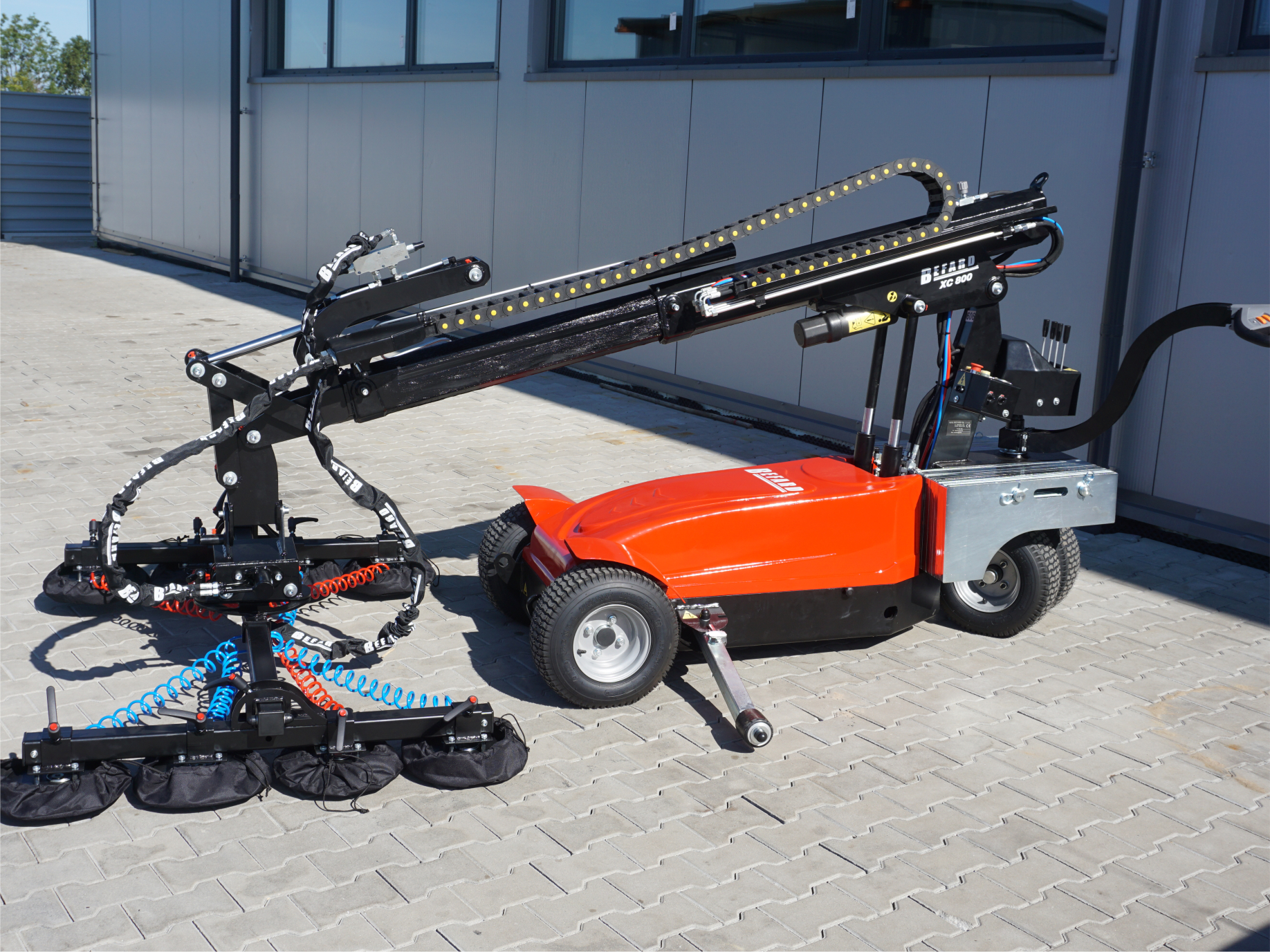

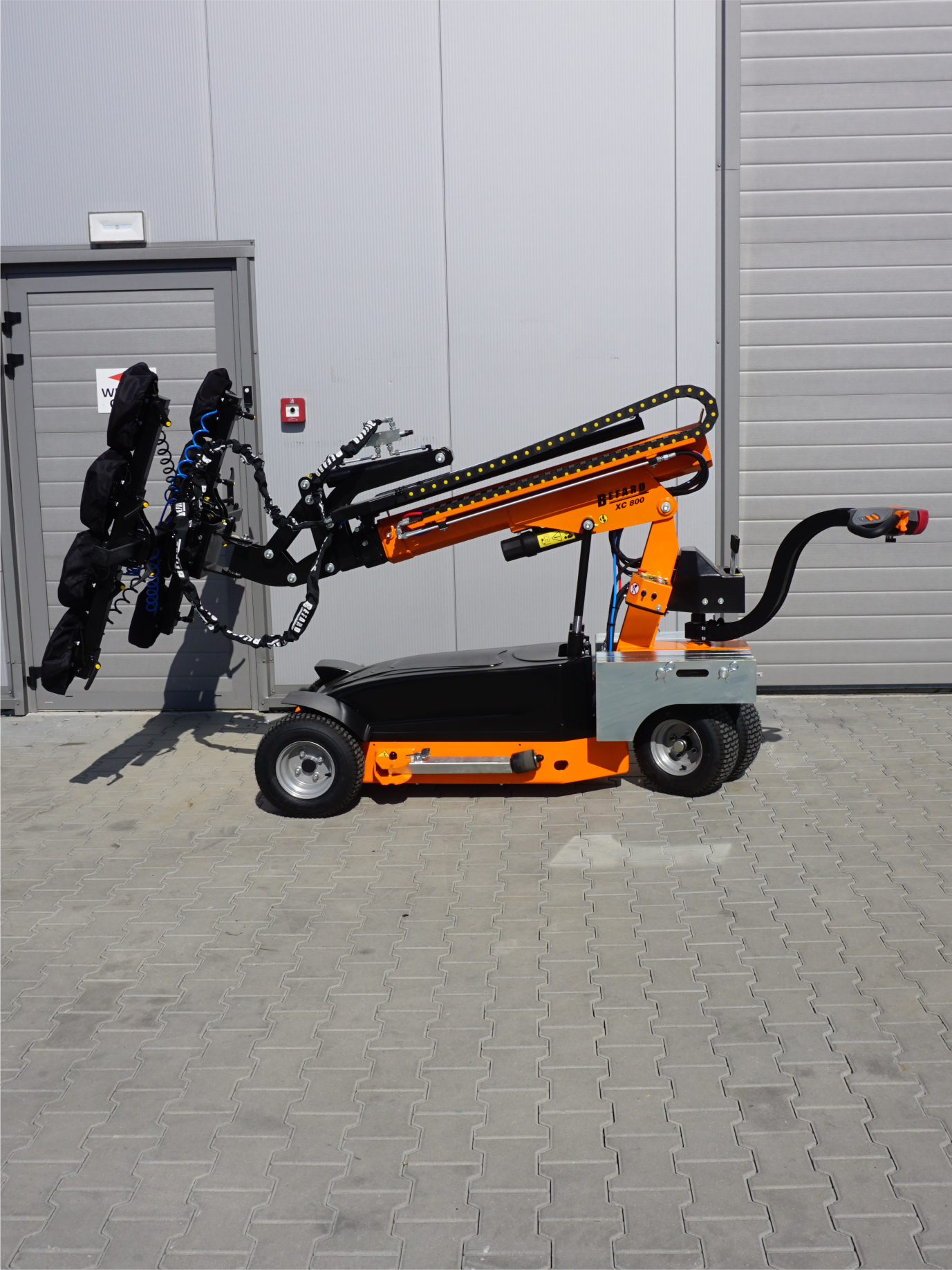

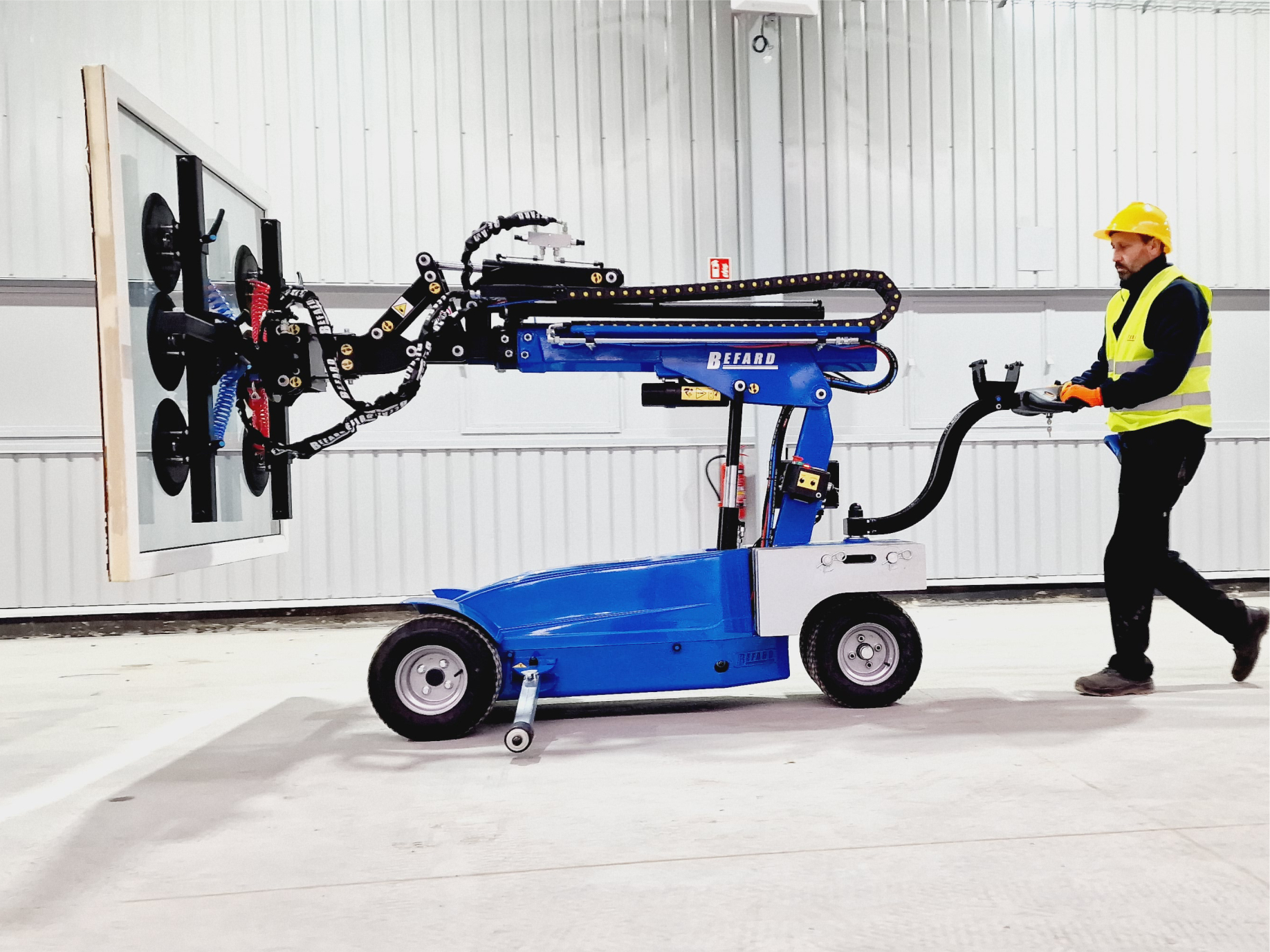

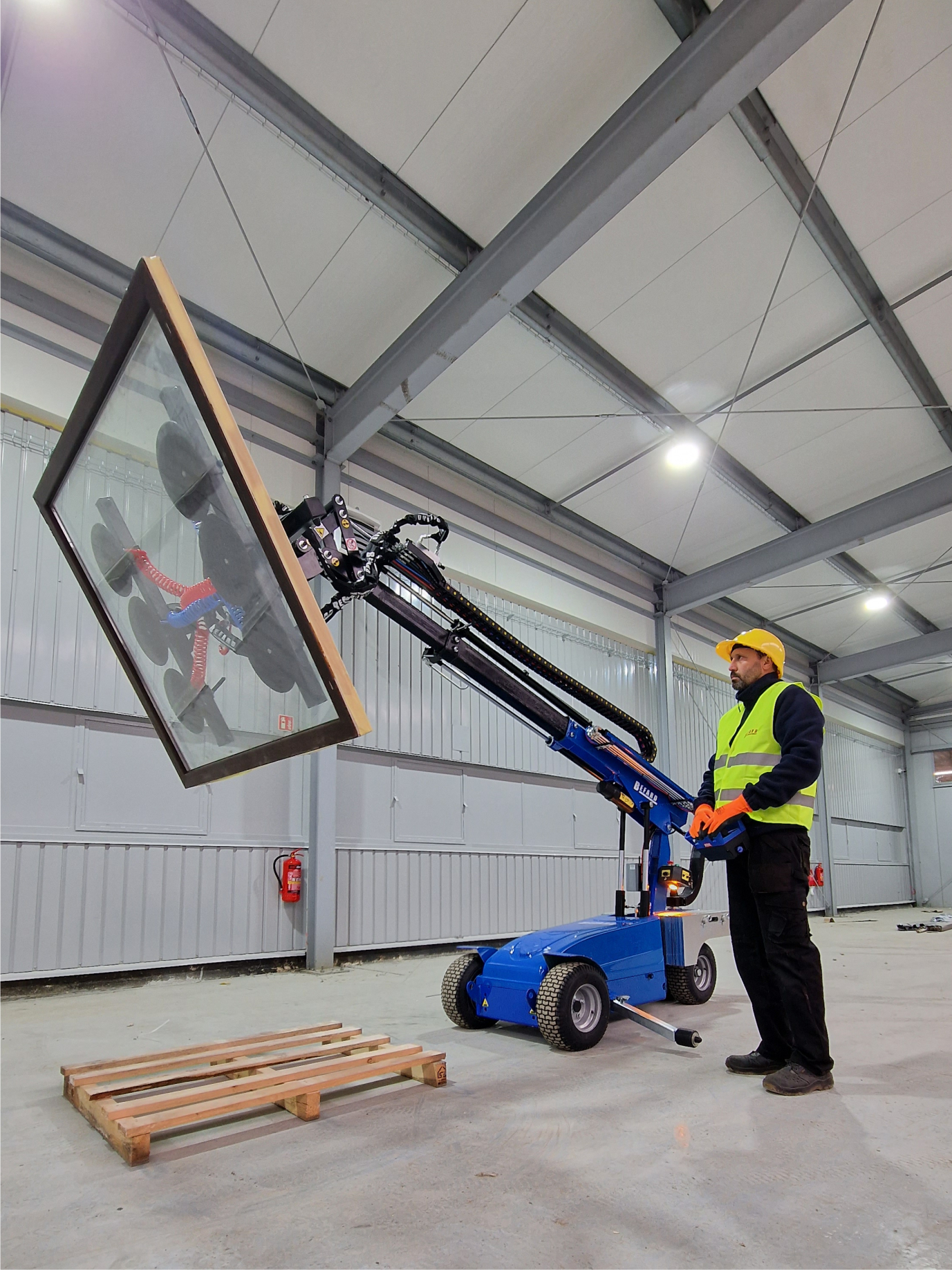

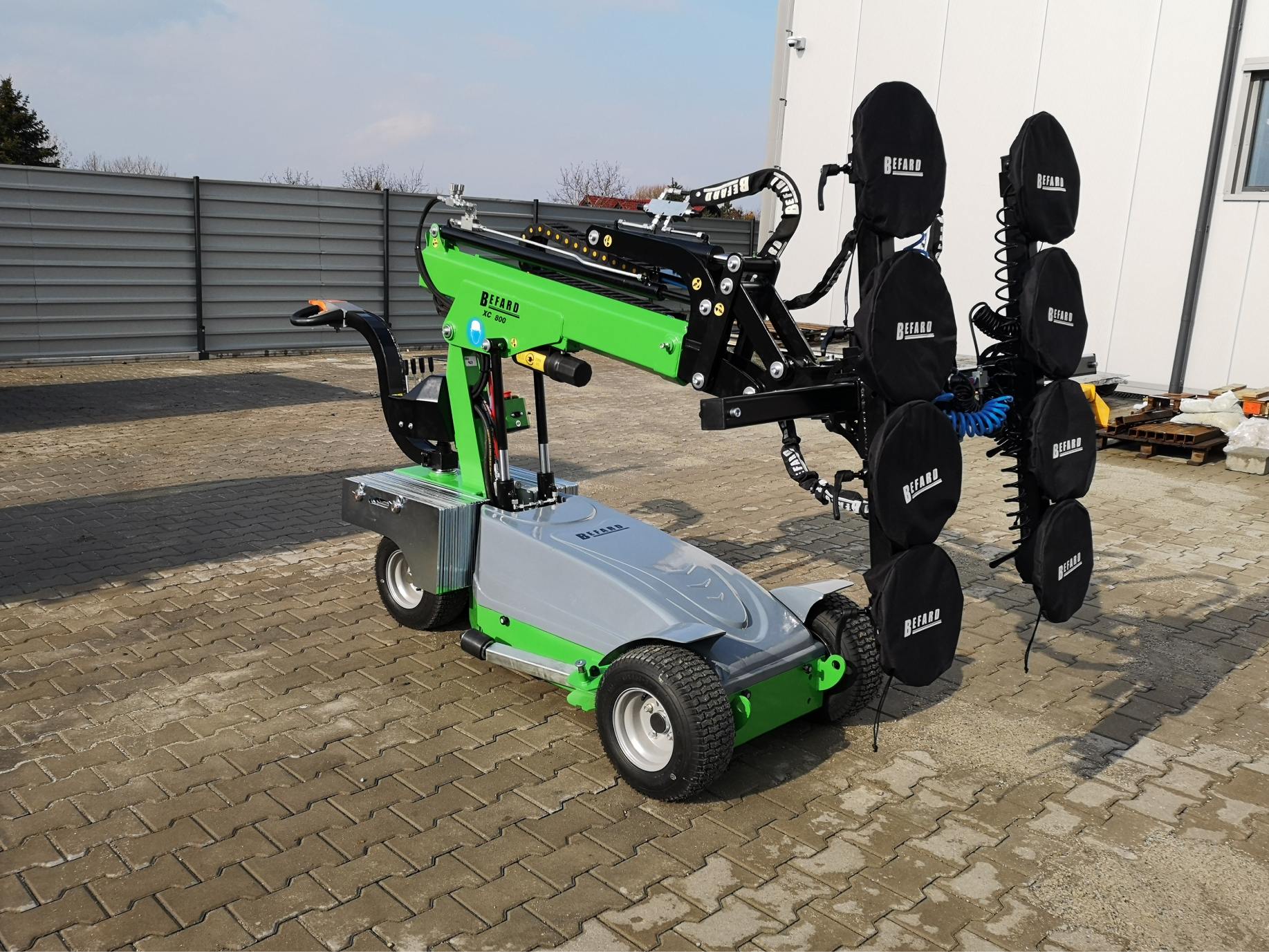

Robot BEFARD XC 600

Vacuum manipulator with one or two hydraulic extensions. The range of the device is up to 3.90m / 4.80m. Load capacity up to 600kg.

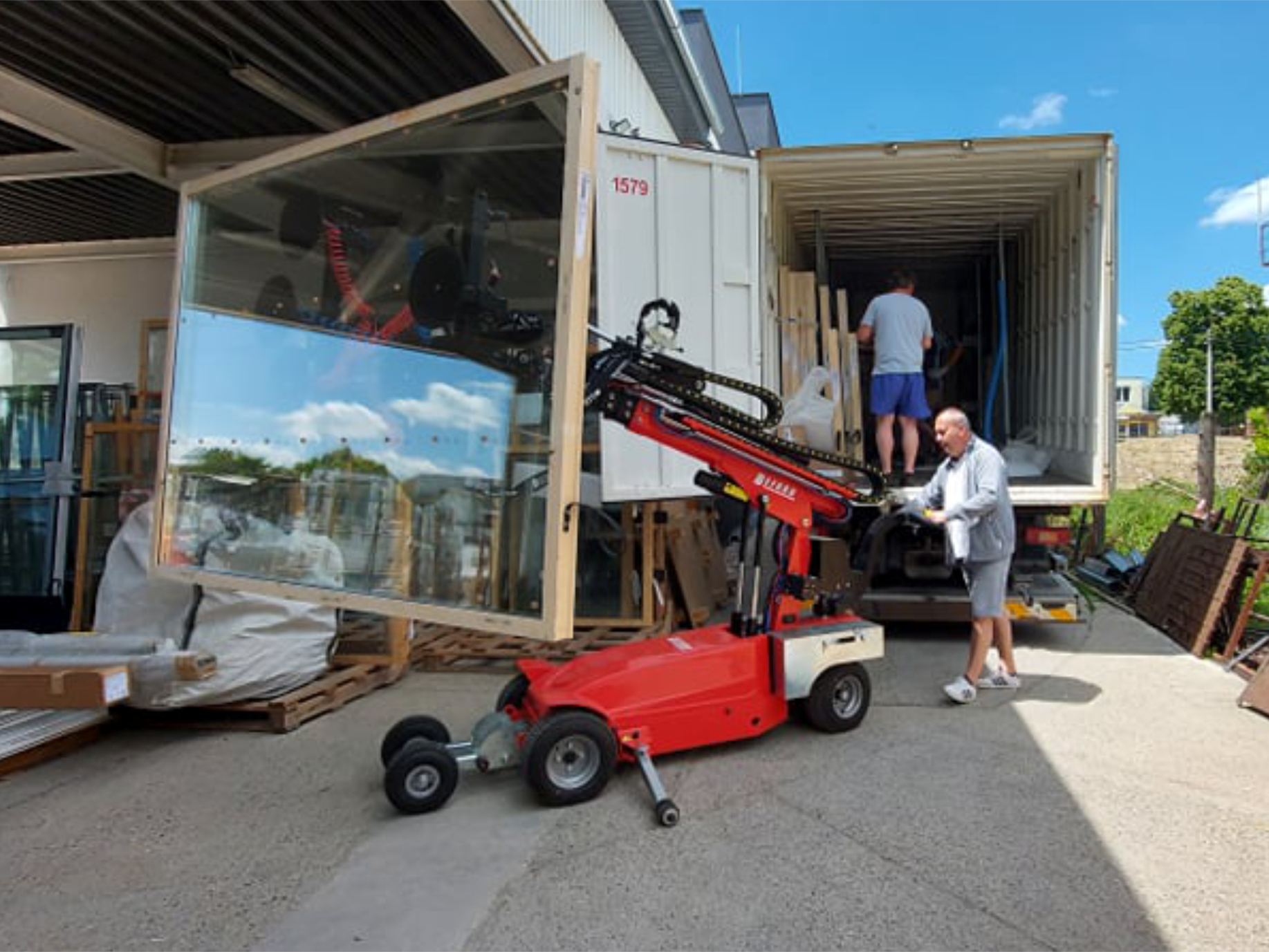

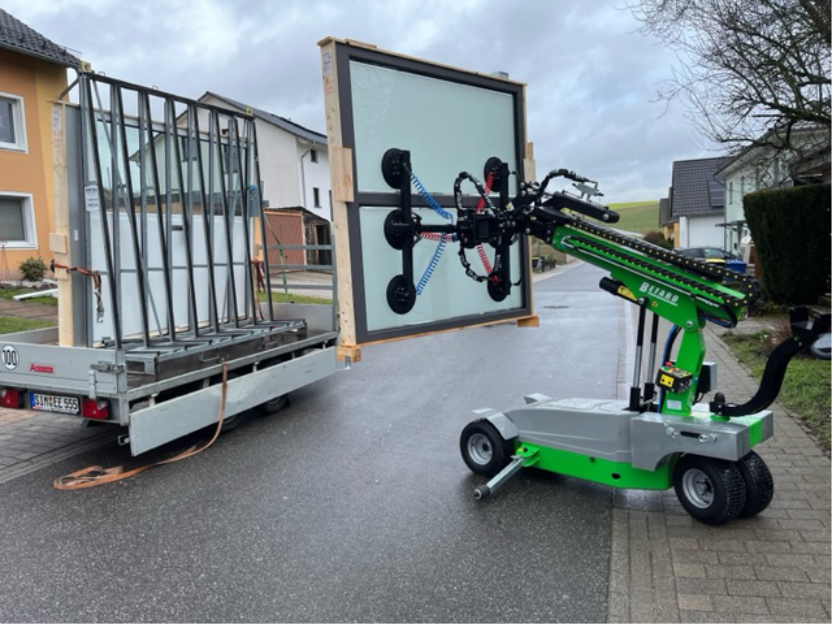

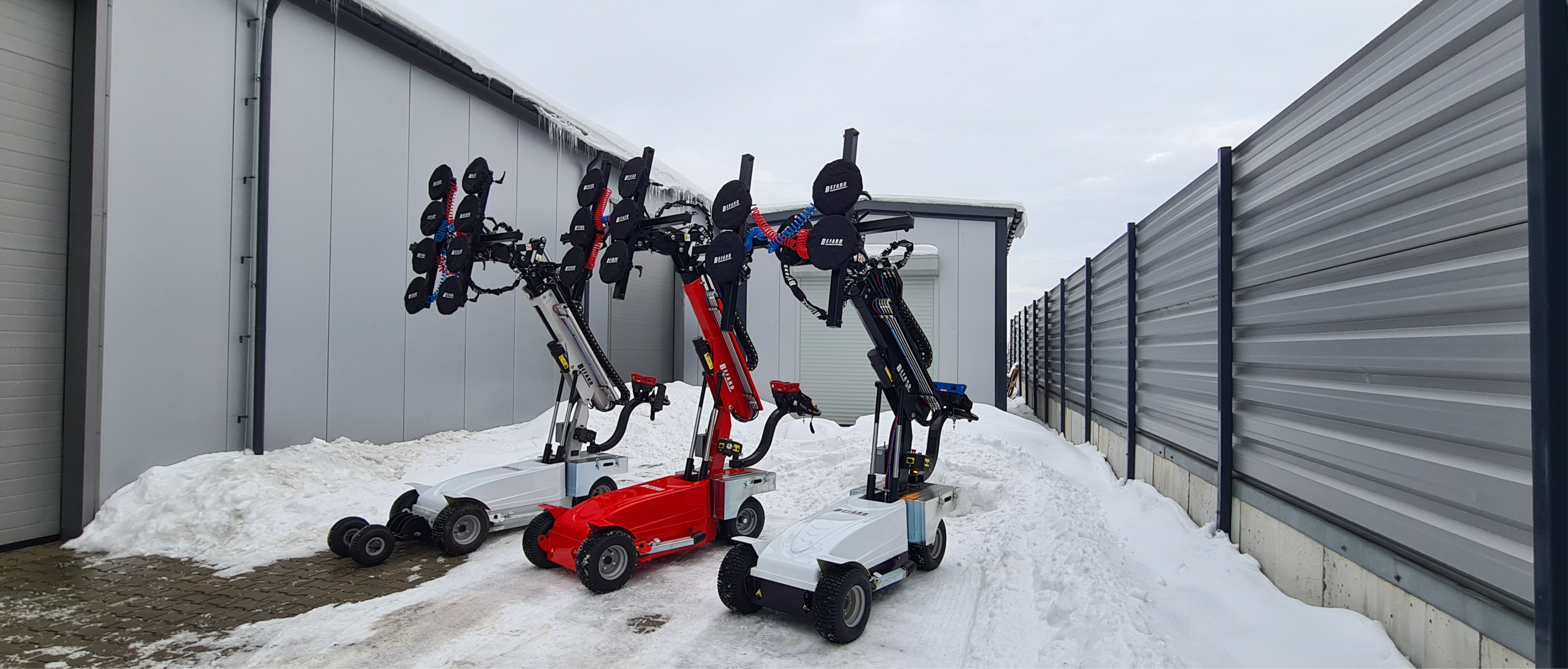

BEFARD XC series assembly robots are irreplaceable devices for mounting and transporting windows, glass and other flat surfaces. BEFARD battery, electric and hydraulic robots are ideal for both outdoor (e.g. in front of buildings) and indoor use.

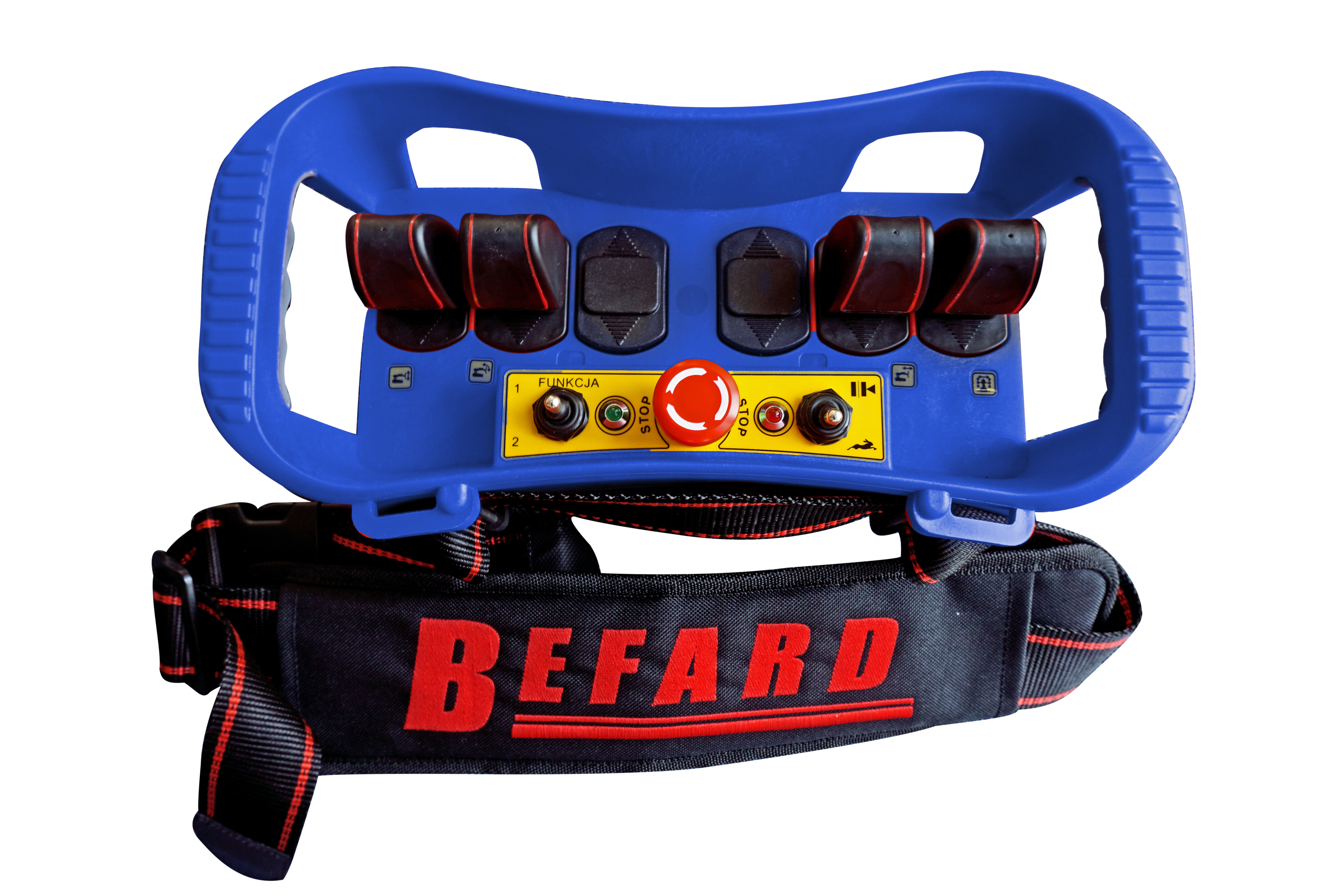

Radio remote control BEFARD

Radio remote control BEFARD

BEFARD XC robots, regardless of the variant, have the option of suction cup frame lateral movement by 100mm, such a solution enables the operation of the lateral movement hydraulic cylinder for precise placement of the window in the window opening. The spacing of suction cups can also be increased, for obtaining a larger or smaller area depending on the needs and the size of the glass to be transported.

Download the device data sheet:

pdfKarta_katalogowa_XC_600.pdf2.88 MB

Extra equipment:

Suction cups with adjustable distance to frame
Twin wheels at the front
Hydraulic/electric swivel – manual swivel as standard option
Hydraulic/electric lateral tilting – manual tilting as standard option
Radio control - in standard
Suction cup covers

The device meets the requirements of the Machinery Directive 2006/42/EC and Directive 2014/30/EU

All BEFARD devices are covered by a 12-month warranty.

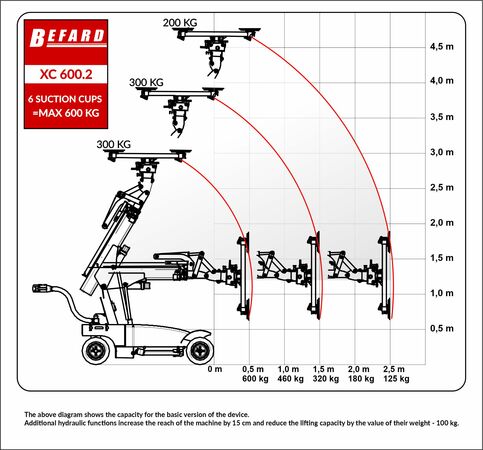

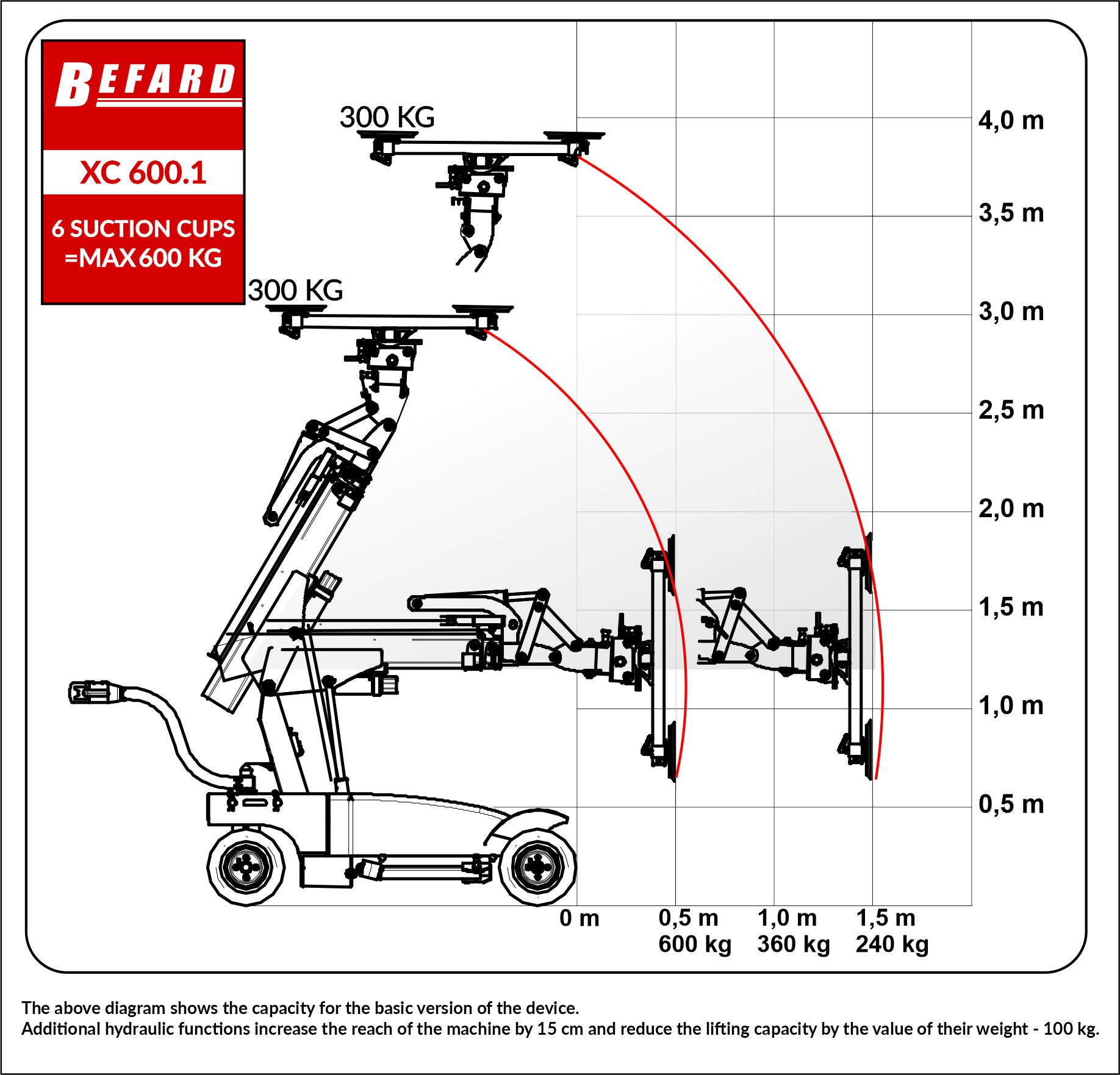

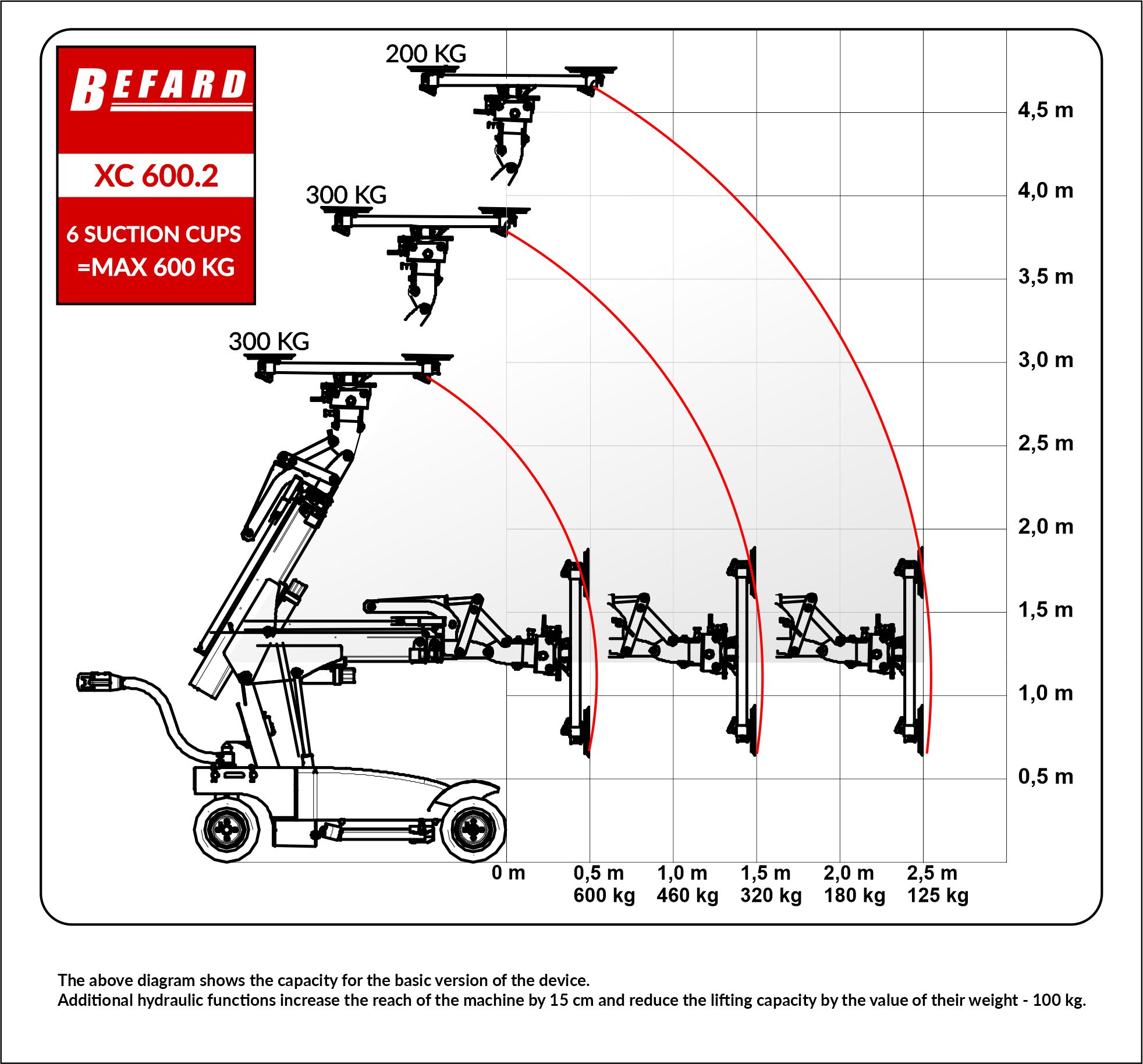

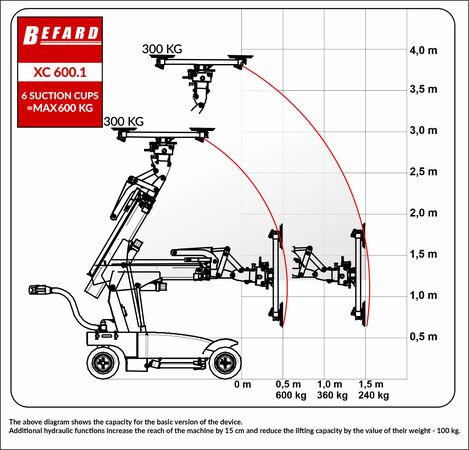

XC 600.1 angXC 600.2 ang

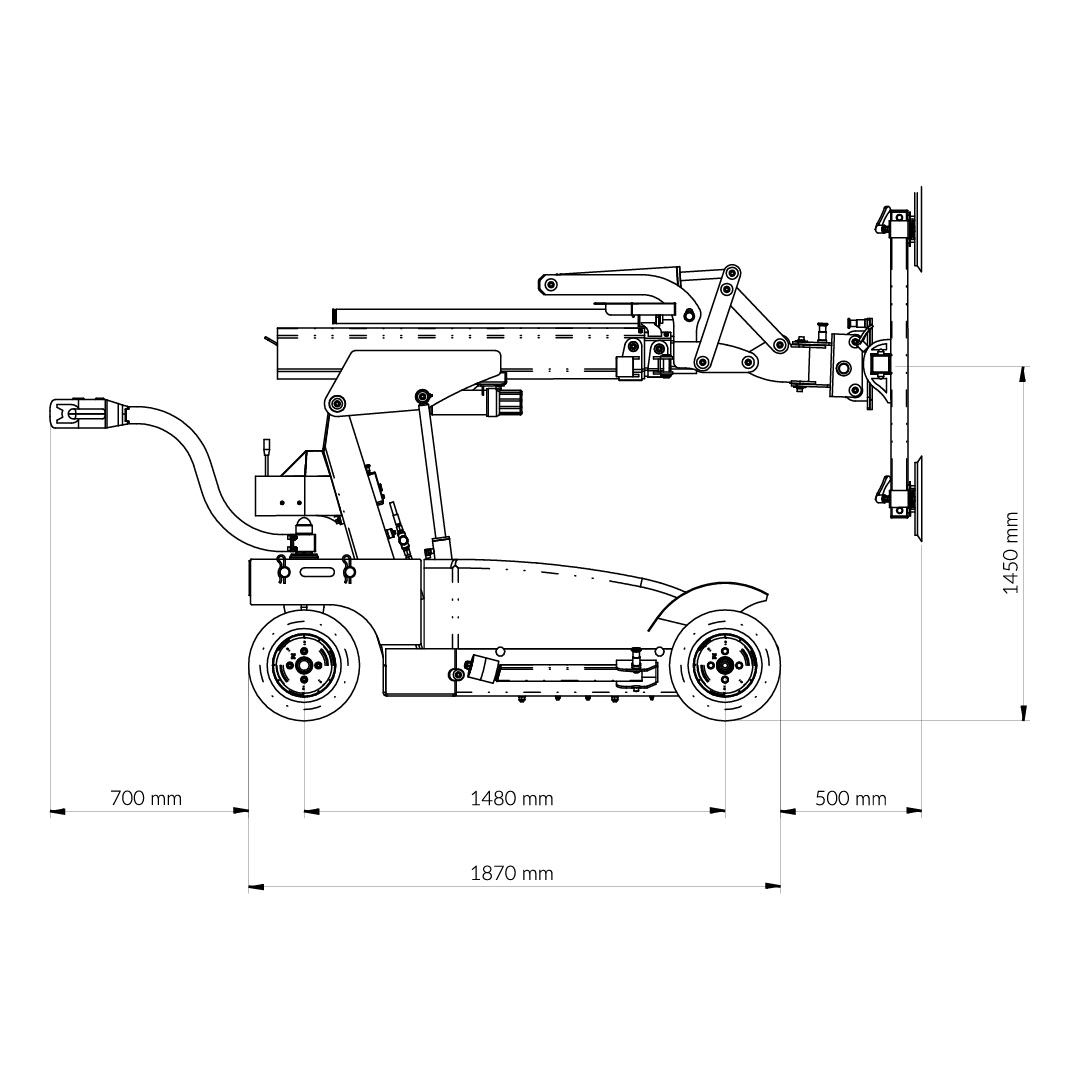

BEFARD XC 600 Technical drawings IMG 03

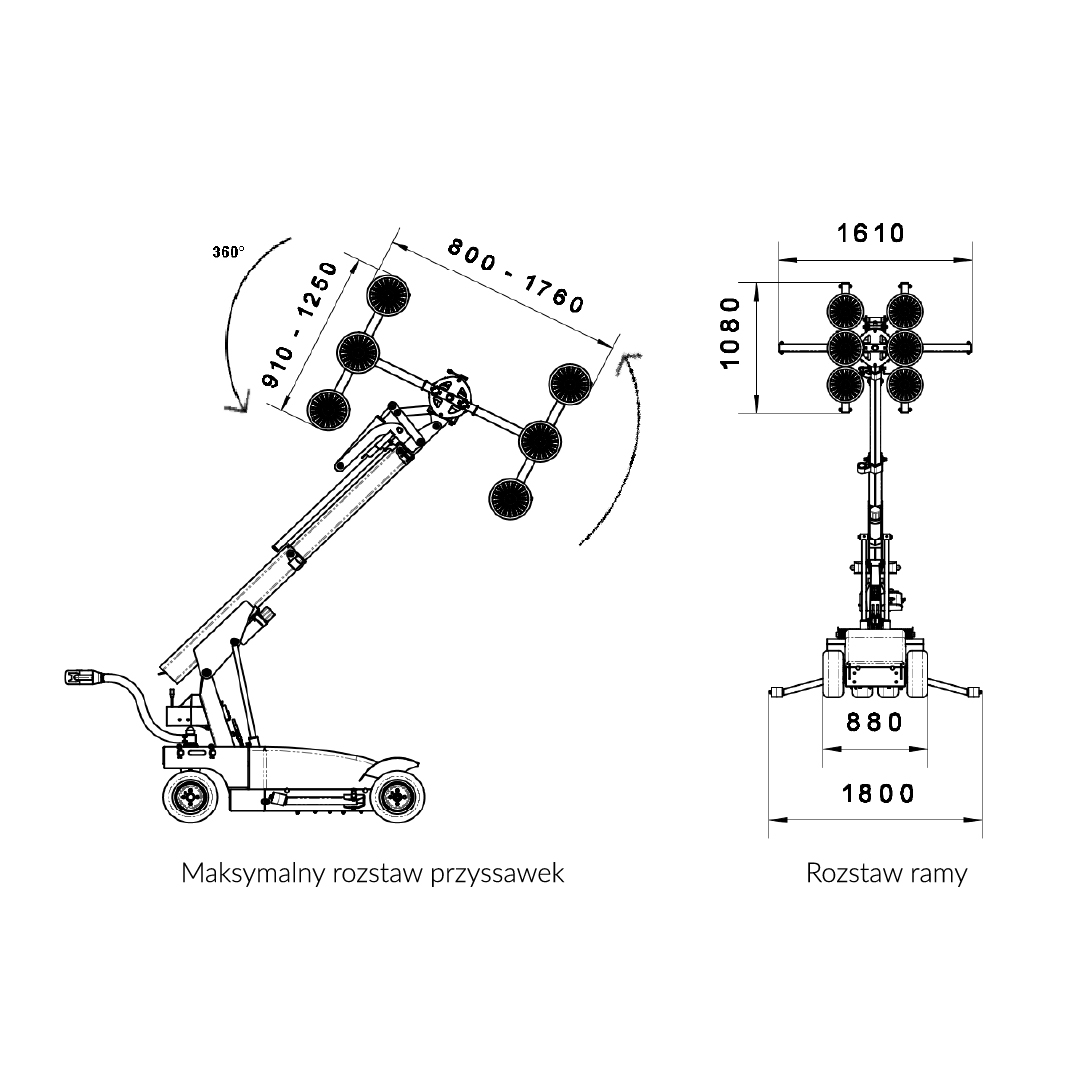

BEFARD XC 600 Technical drawings IMG 04

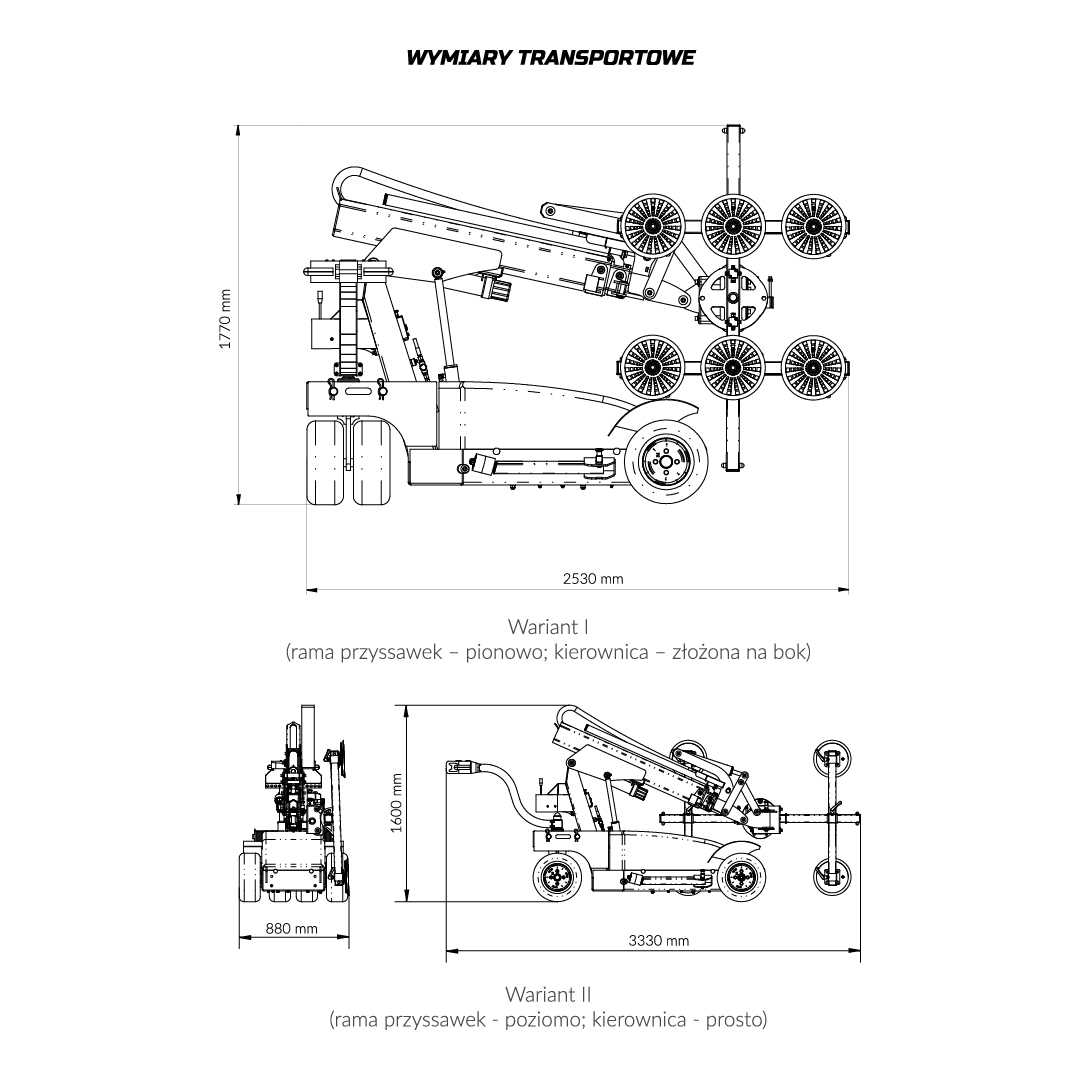

BEFARD XC 600 Technical drawings IMG 05

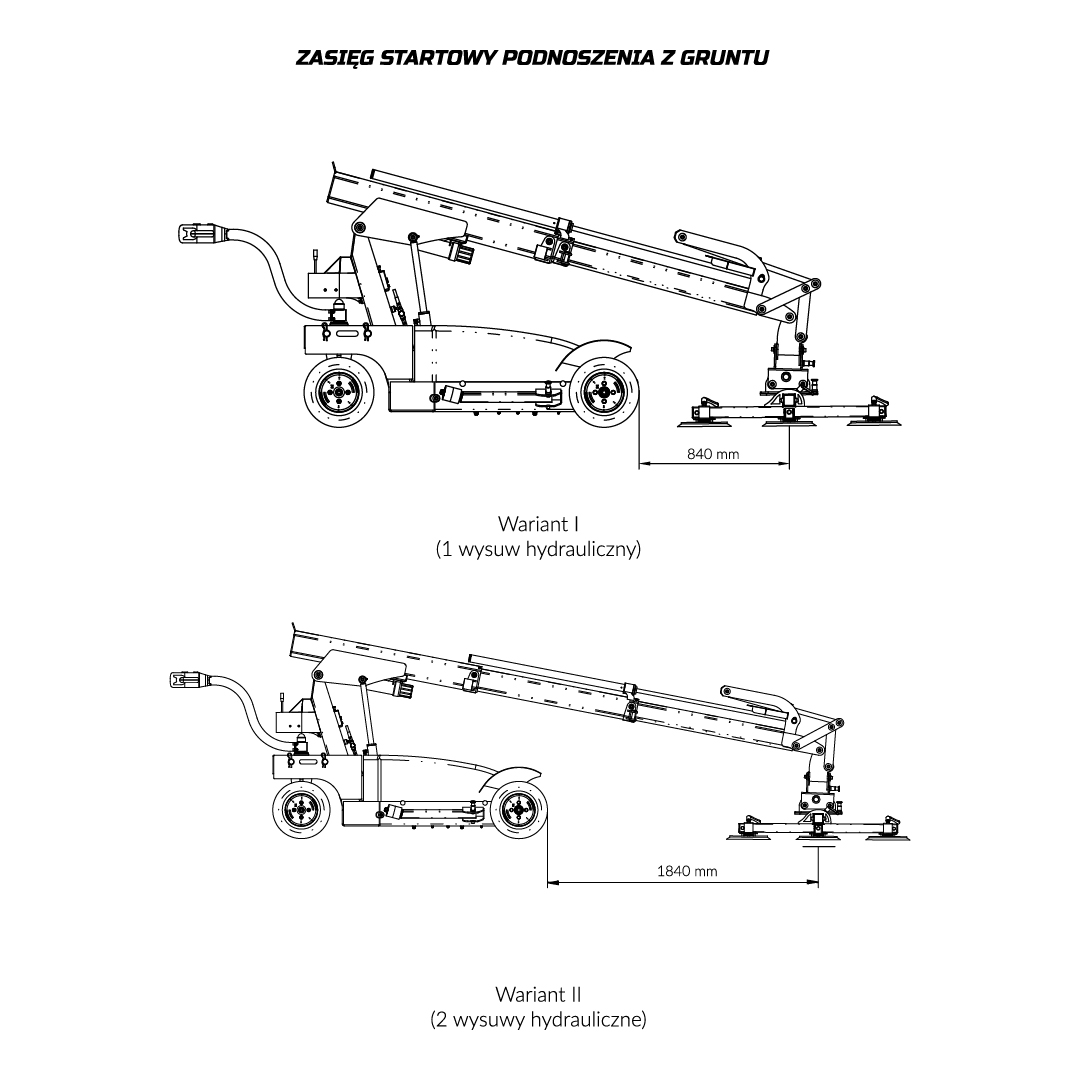

BEFARD XC 600 Technical drawings IMG 06
