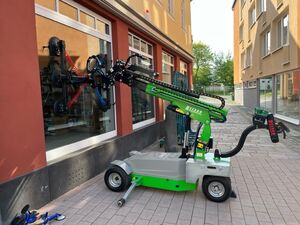

BEFARD XC 800

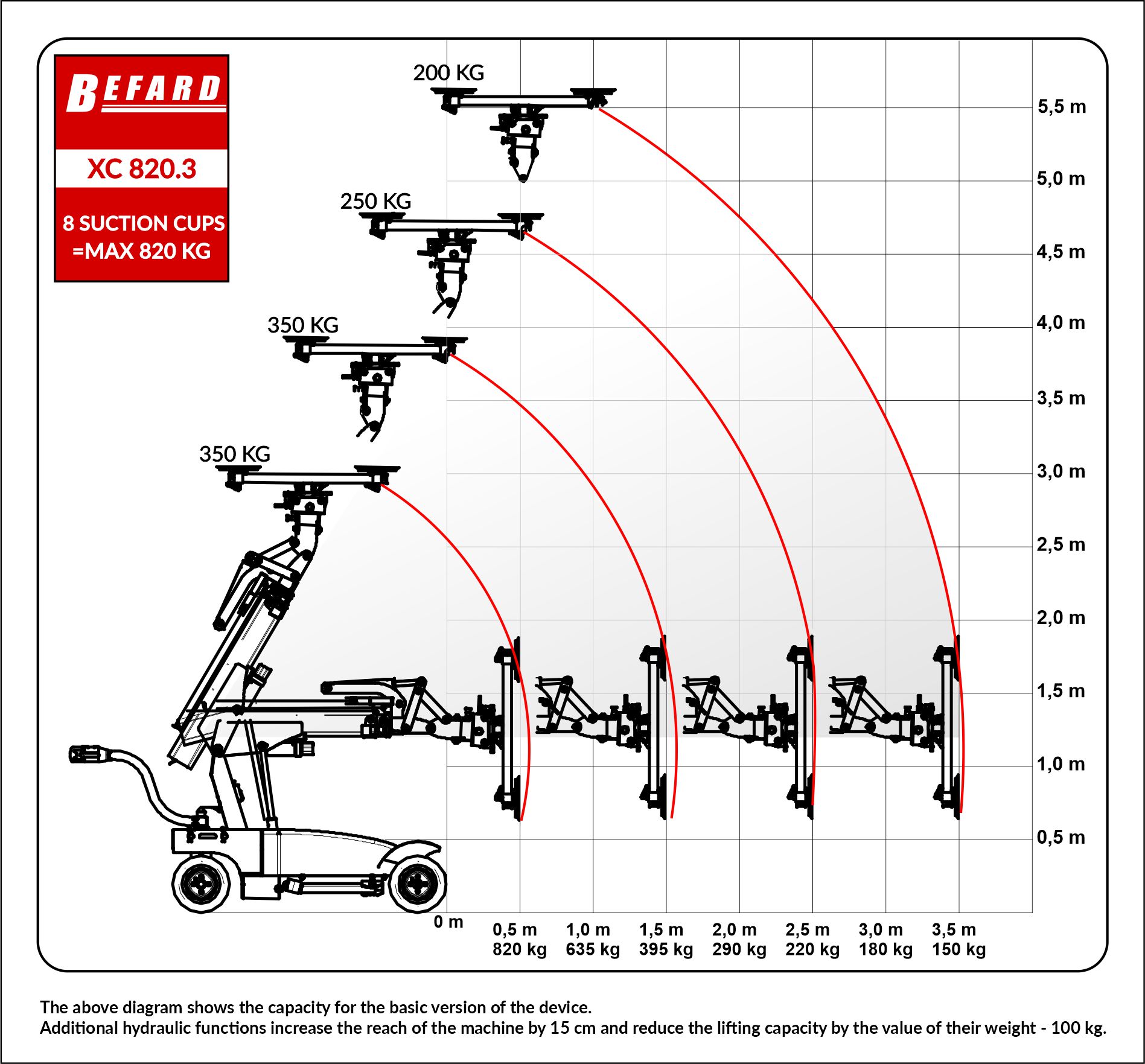

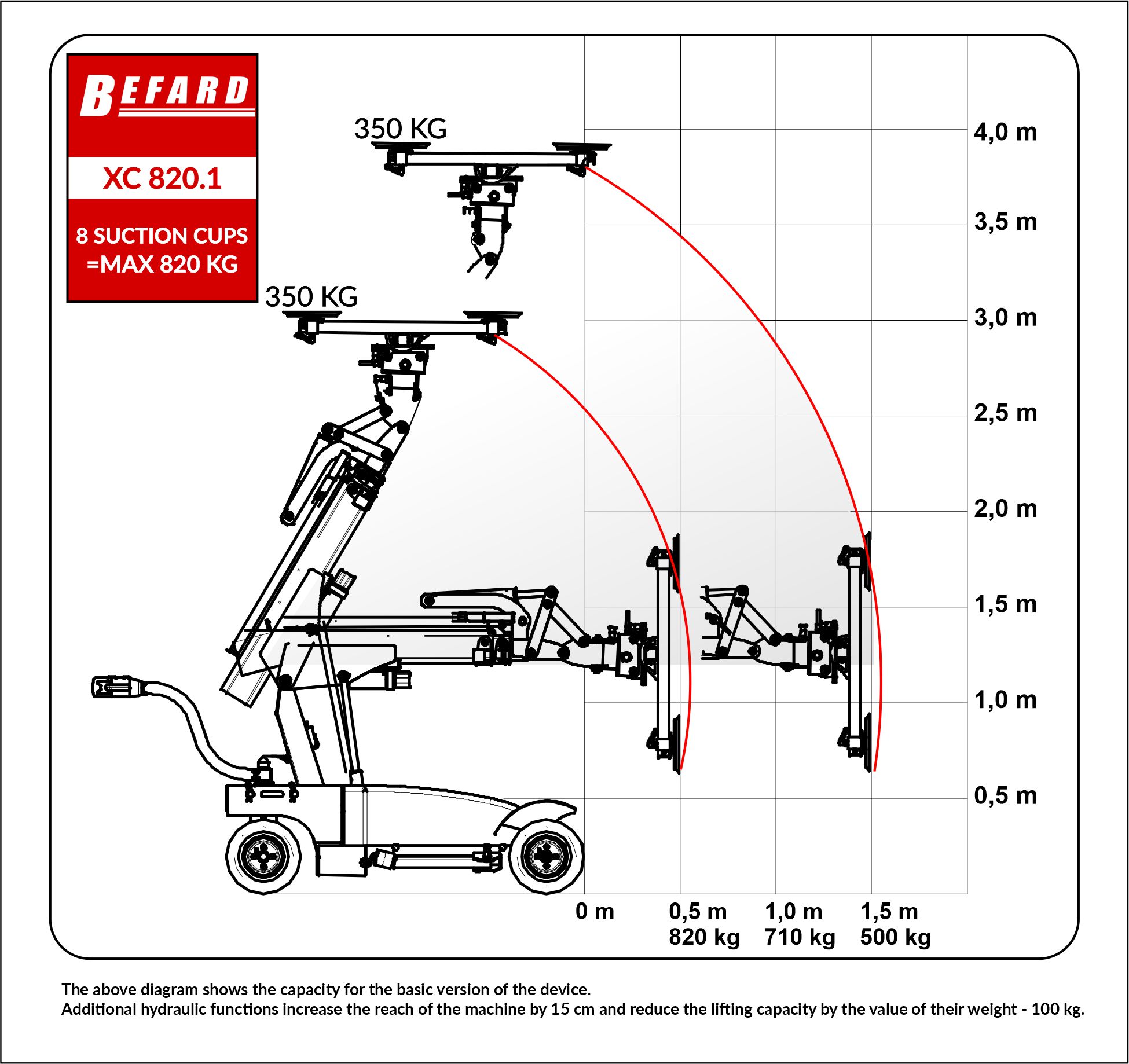

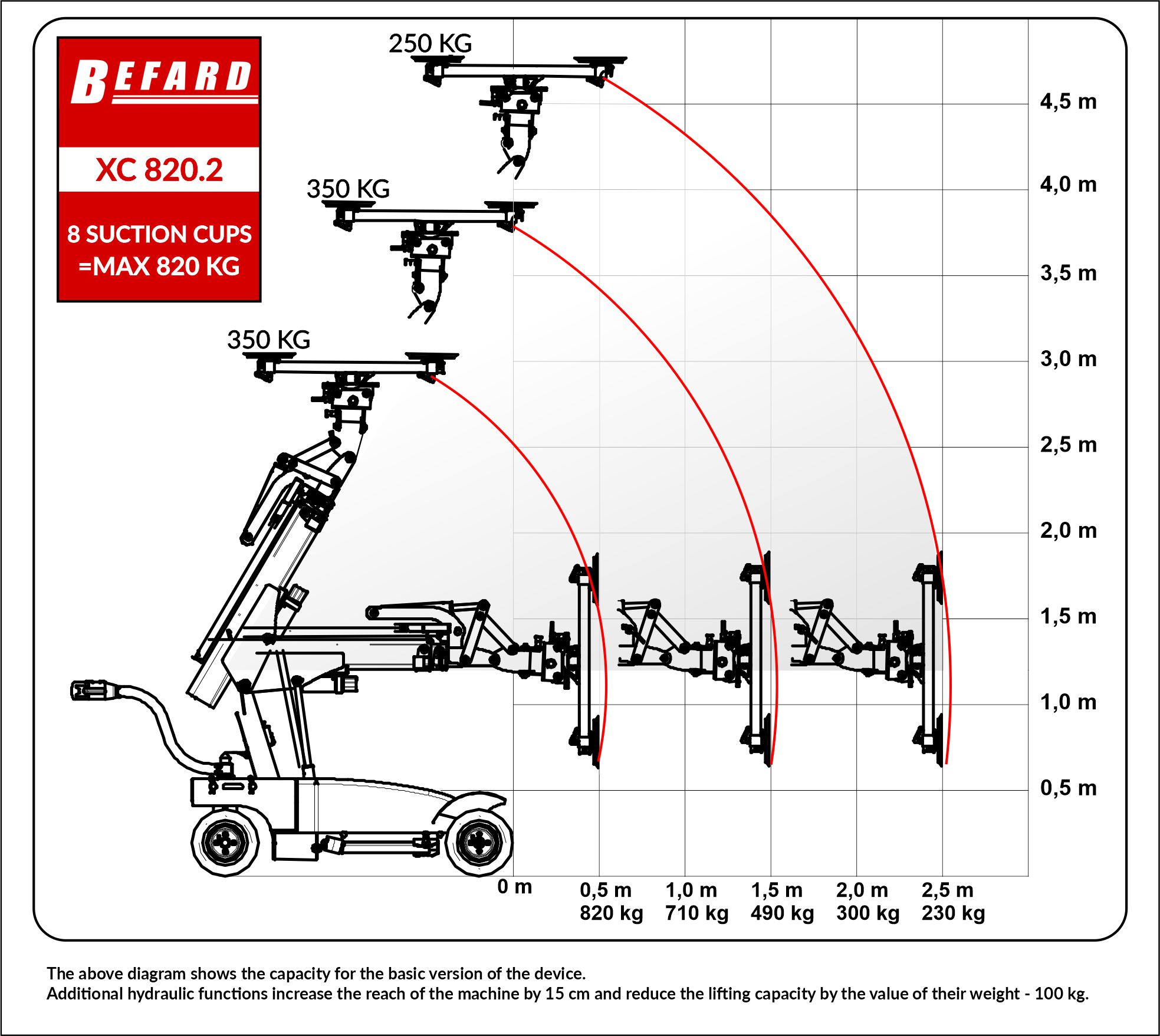

One, two or three hydraulic extensions. Range of the device up to 3.55 m / 4.25 m / 4.95 m. Hoist capacity up to 800 kg.

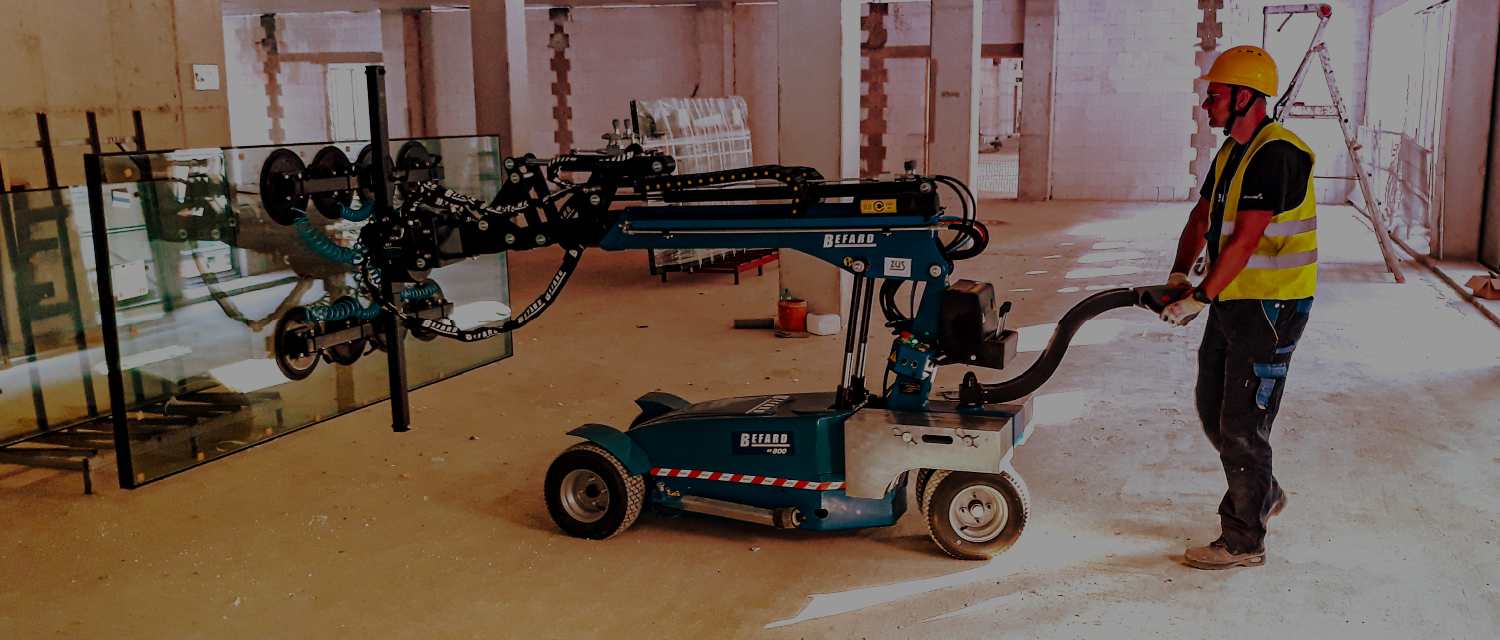

BEFARD XC series assembly robots are irreplaceable devices for mounting and transporting windows, glass and other flat surfaces. BEFARD battery, electric and hydraulic robots are ideal for both outdoor (e.g. in front of buildings) and indoor use.

BEFARD XC robots, regardless of the variant, have the option of suction cup frame lateral movement by 100 mm, such a solution enables the operation of the lateral movement hydraulic cylinder for precise placement of the window in the window opening. The spacing of suction cups can also be increased, for obtaining a larger or smaller area depending on the needs and the size of the glass to be transported.

Extra equipment:

Suction cups with adjustable distance to frame
Twin wheels at the front
Hydraulic swivel – manual swivel as standard option
Hydraulic lateral tilting – manual tilting as standard option
Radio control - controlled from the distributor on the unit as a standard option
Suction cup covers

The device meets the requirements of the Machinery Directive 2006/42/EC and Directive 2014/30/EU

All BEFARD devices are covered by a 12-month warranty, which can be extended to 36 months.

BEFARD XC 800 Technical drawings IMG 01
BEFARD XC 800 Technical drawings IMG 02
BEFARD XC 800 Technical drawings IMG 03

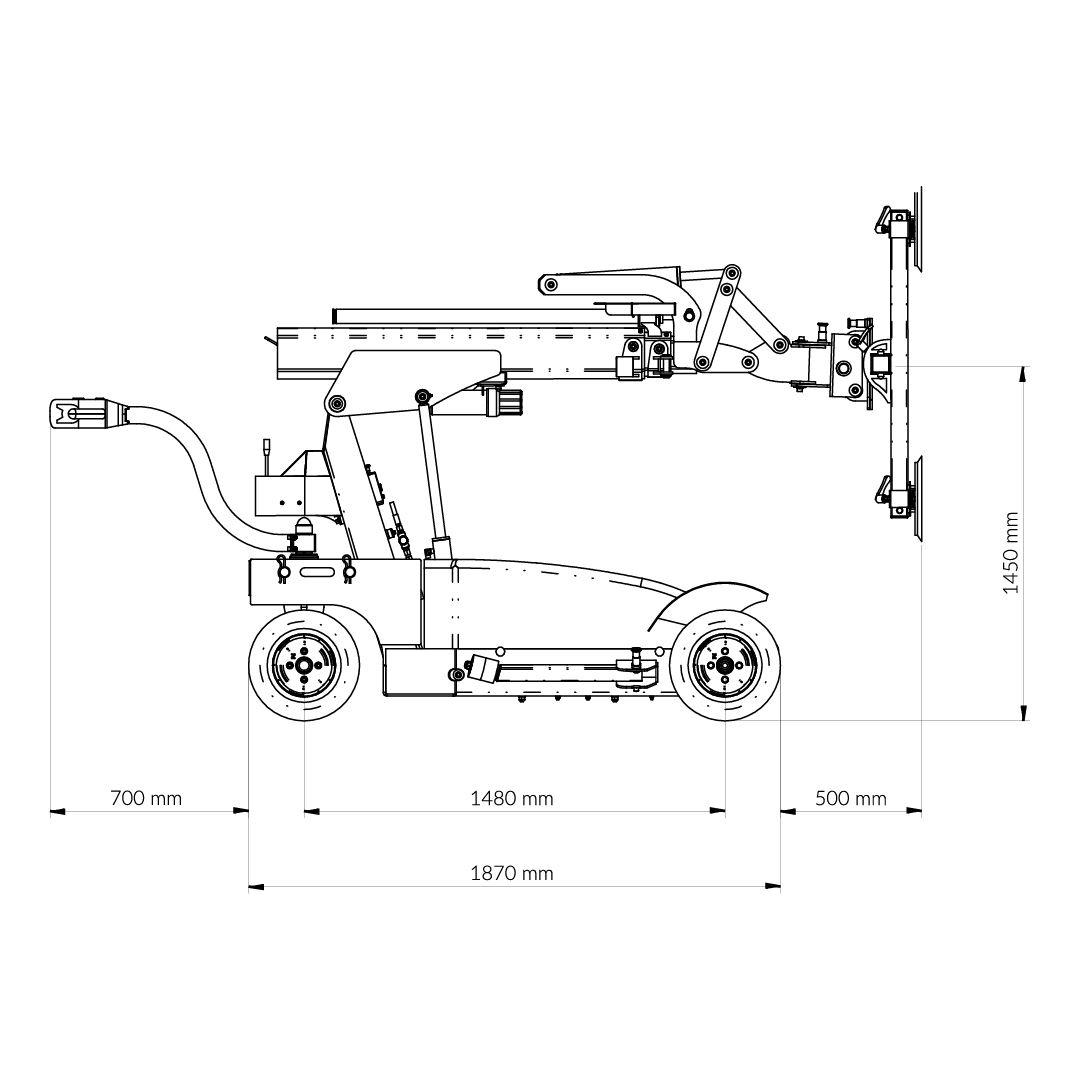

BEFARD XC 800 Technical drawings IMG 04

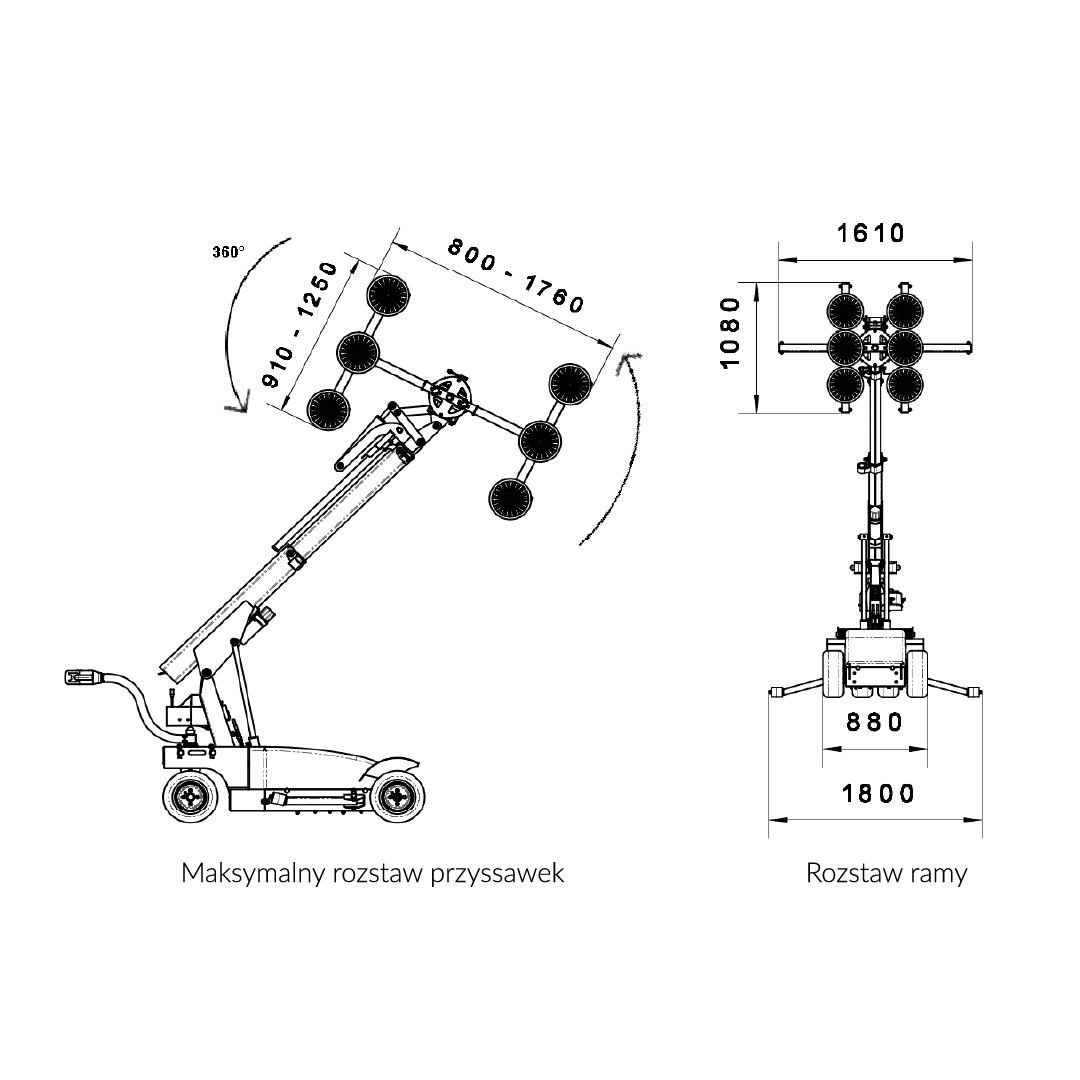

BEFARD XC 800 Technical drawings IMG 05

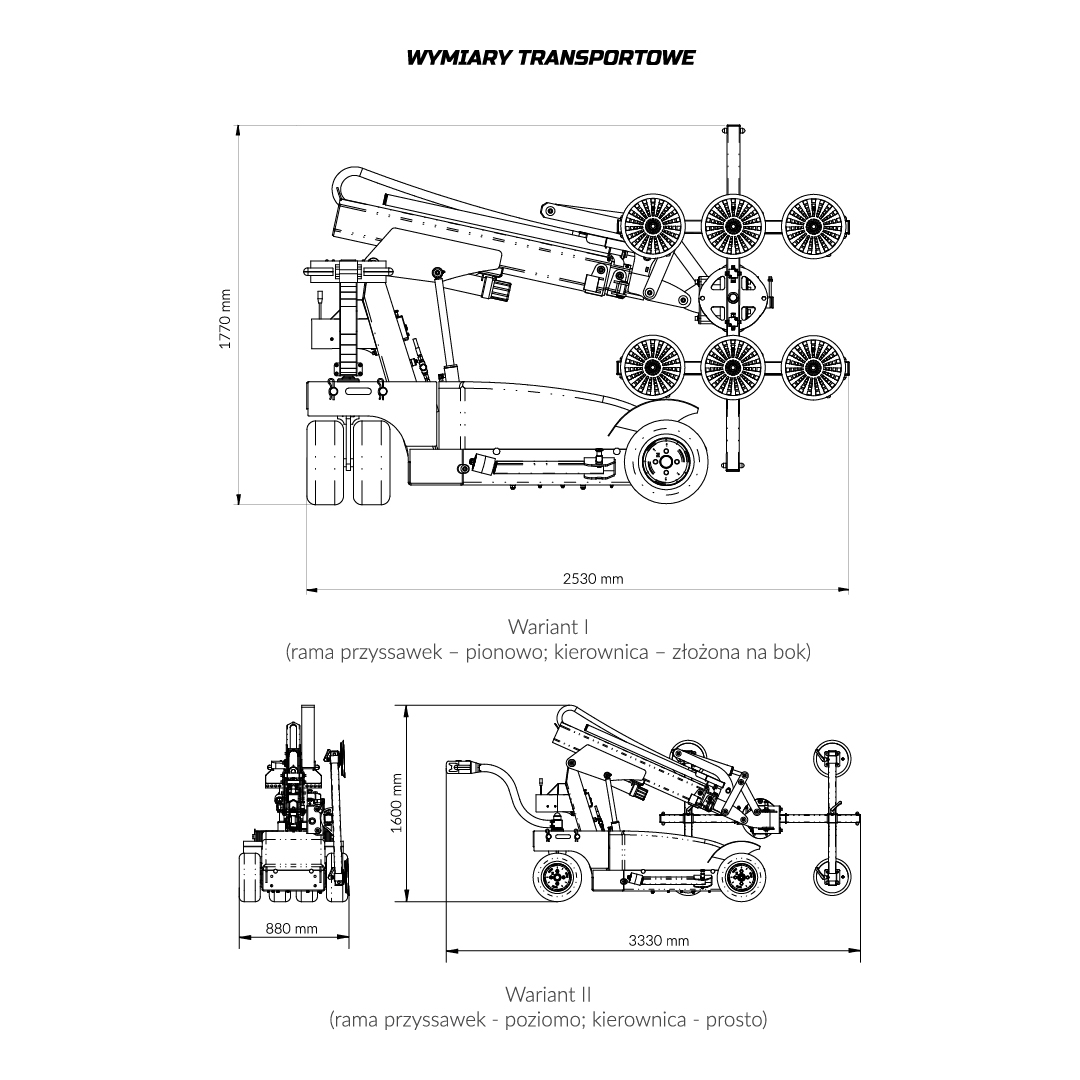

BEFARD XC 800 Technical drawings IMG 06

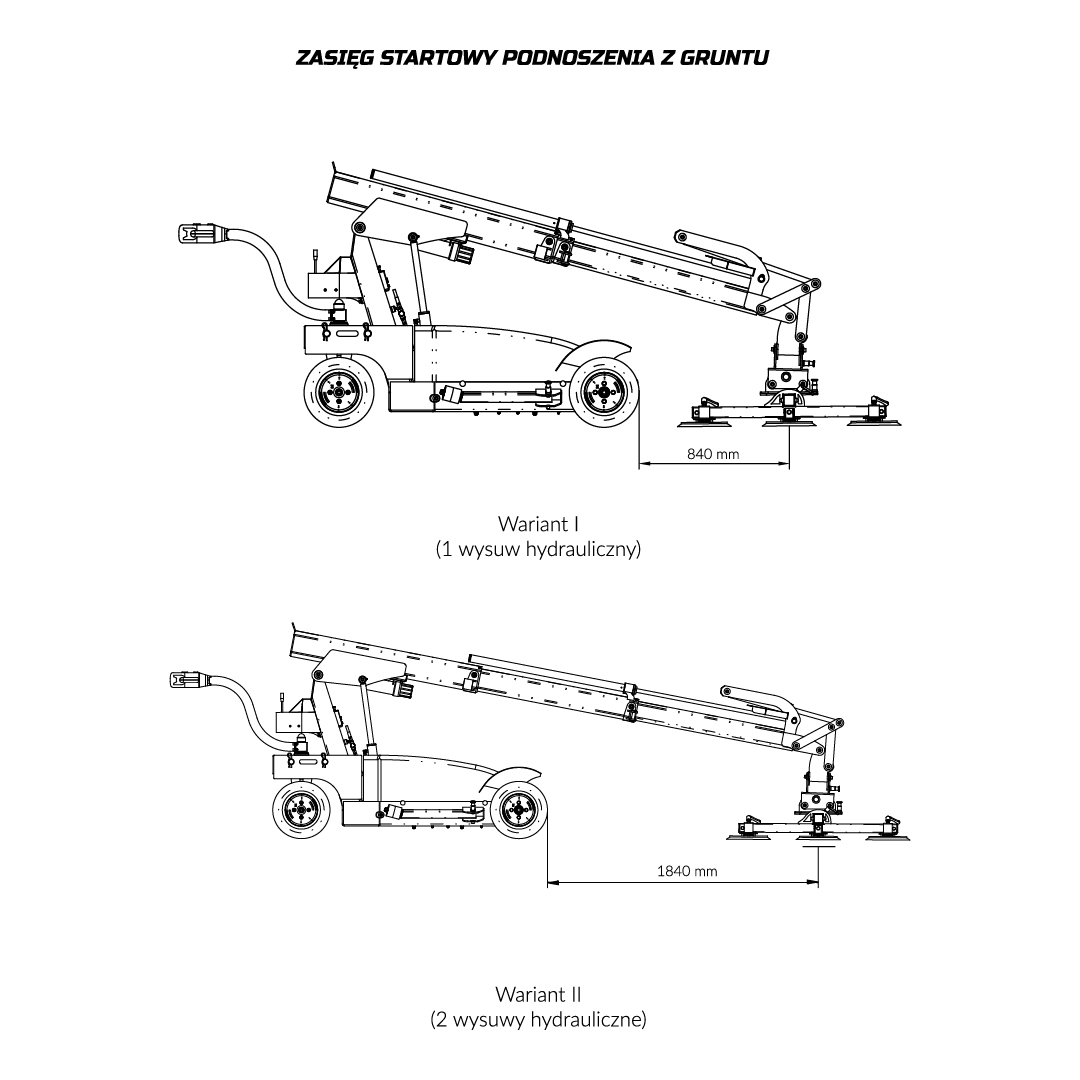

BEFARD XC 800 Technical drawings IMG 07
