Assembly robot

BEFARD XC400

The BEFARD XC400 assembly robot is an indispensable tool for the installation and transport of glass, windows, and other flat surfaces. Battery-powered, electric/hydraulic BEFARD glass handling robots ensure efficient operation both outdoors and indoors.

Each XC400 model features a lateral frame shift with suction cups offering 100 mm movement, allowing precise window placement into openings. Additionally, adjustable suction cup spacing enables adaptation to different glass sizes, enhancing operational flexibility.

With its modern features, the BEFARD XC400 assembly robot guarantees safety, precision, and convenience in every installation scenario.

Download Datasheet
XC400

Specification

Max capacity 400 kg
Max horizontal reach 1,500 mm
Max vertical reach 3,900 mm
Height 1.6 m
Width 0.88 m
Length 3.33 m
Suction cups 4
Suction cup Ø100 mm
Weight ~700 kg

Options

HS spacers Adjustable suction cups for frame spacing
Twin wheels Twin front wheels
Filled wheels Puncture-proof elastomer-filled wheels
Valves Individual cup valves
Hook Suction cup frame hook for lifting loads
Hydraulic tilt Hydraulic lateral tilt (-100 kg capacity)
Hydraulic rotation Hydraulic rotation (-100kg capacity)
Forks Frame-mounted forks
LED lamp LED lamp
Narrow version Width 78 cm with taller/narrow wheels
Overload protection Overload protection
RAL colour Custom RAL
Wheeled Installation Robots

See More

BEFARD XC820BEFARD XC600

Have more questions?
Contact us now!

+48 33 821 96 92

contact@befard.com

XC400

Technical Drawings

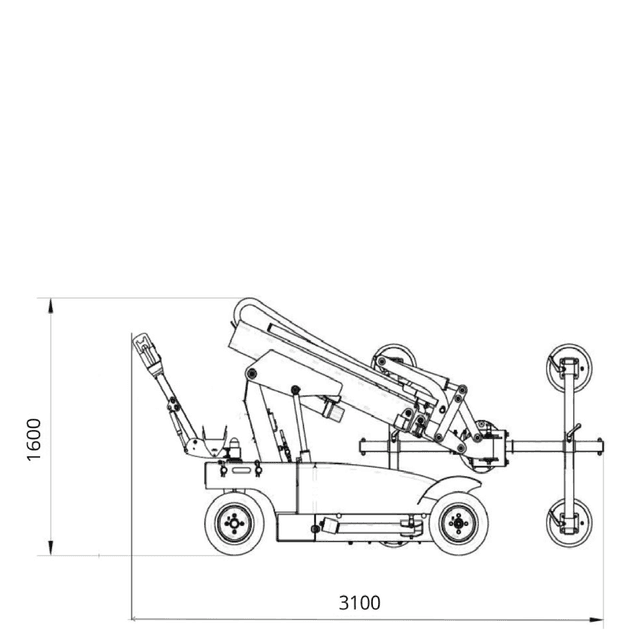

Rysunek z wymiarami robota montażowego BEFARD XC400
Rozstaw przyssawek w robocie montażowym do szkła BEFARD XC
Porównanie parametrów robota montażowego BEFARD z jednym i dwoma wysuwami
Rysunek techniczny z wymiarami manipulatora montażowego Befard XC

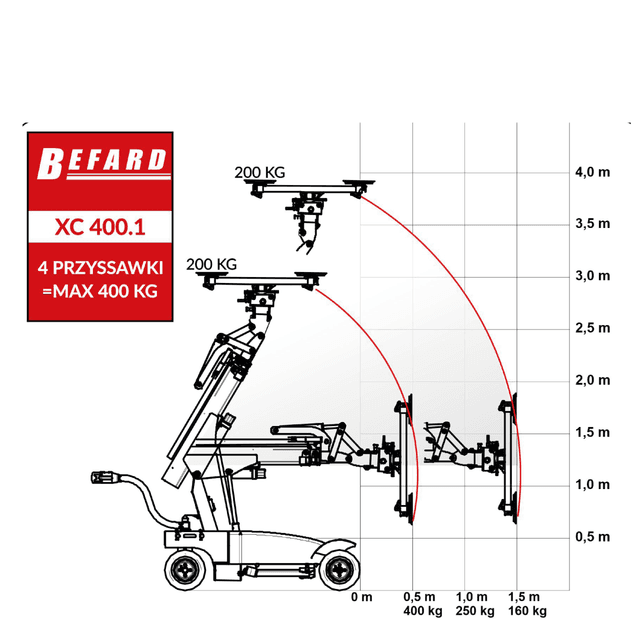

Diagram udźwigu robota montażowego Befard XC400
