Assembly robot

BEFARD XC600

The BEFARD XC600 assembly robot is an indispensable tool for installing and transporting glass, windows, and other flat surfaces. Battery-powered, electric/hydraulic BEFARD robots ensure efficient operation both outdoors and indoors.

Each XC600 model features a lateral frame shift with 100 mm suction cups, allowing precise window placement into openings. Additionally, adjustable suction cup spacing enables adaptation to different glass sizes, increasing operational flexibility.

With its modern solutions, the BEFARD XC600 assembly robot guarantees safety, precision, and convenience in every installation scenario.

Download Datasheet
XC600

Specification

BEFARD XC 600.1 600.2
Max capacity 600 kg 600 kg
Max horizonatl reach 1,500 mm 2,500 mm
Max vertical reach 3,900 mm 4,800 mm
Height 1,770 mm 1,770 mm
Width 880 mm 880 mm
Length 3,300 mm 3,300 mm
Suction cups 6 6
Suction cup Ø100 mm Ø100 mm
Weight ~808 kg ~844 kg

Options

HS spacers Adjustable suction cups for frame spacing
Twin wheels Twin front wheels
Filled wheels Puncture-proof elastomer-filled wheels
Valves Individual cup valves
Hook Suction cup frame hook for lifting loads
Hydraulic tilt Hydraulic lateral tilt (-100 kg capacity)
Hydraulic rotation Hydraulic rotation (-100kg capacity)
Forks Frame-mounted forks
LED lamp LED lamp
Narrow version Width 78 cm with taller/narrow wheels
Overload protection Overload protection
RAL colour Custom RAL

See More

Read More

Wheeled Installation Robots

See More

BEFARD XC820BEFARD XC400

Have more questions?
Contact us now!

+48 33 821 96 92

contact@befard.com

XC600

Technical Drawings

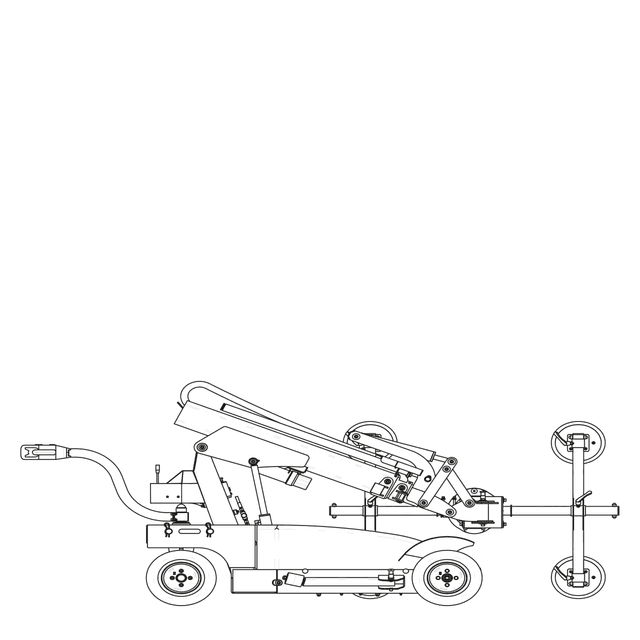

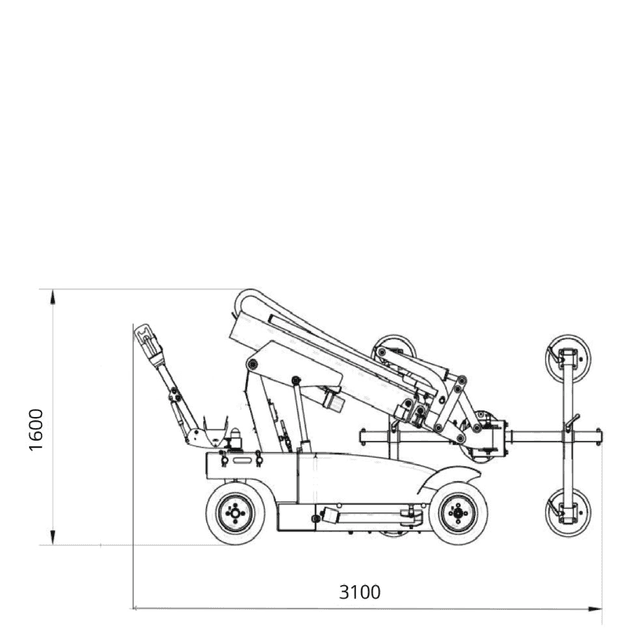

Wymiary transportowe robota montażowego BEFARD XC600
Wymiary transportowe robota montażowego BEFARD XC600
wymiary głowicy próżniowej robota montażowego BEFARD XC600

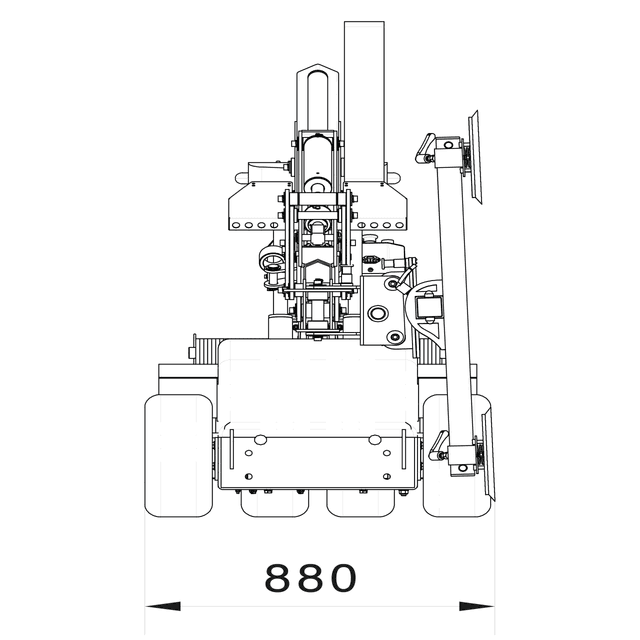

Rysunek techniczny z parametrami robota montażowego XC600

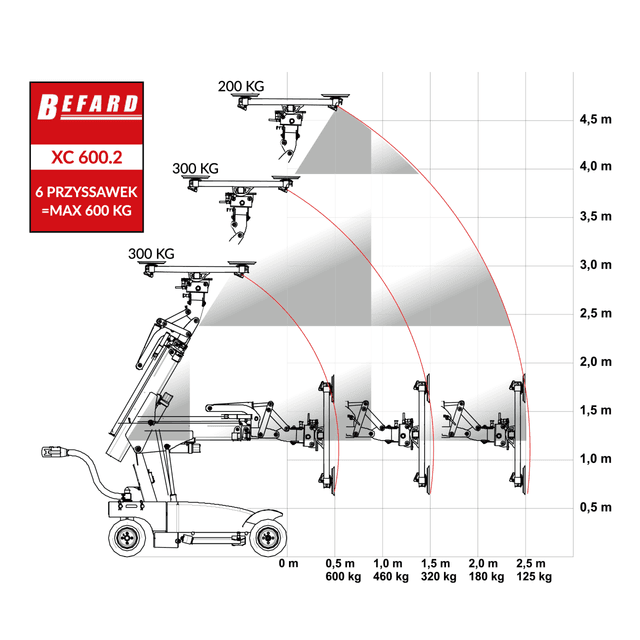

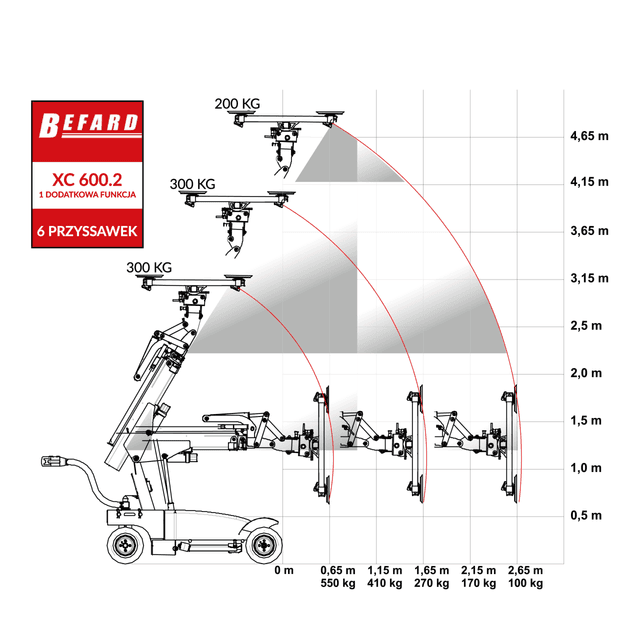

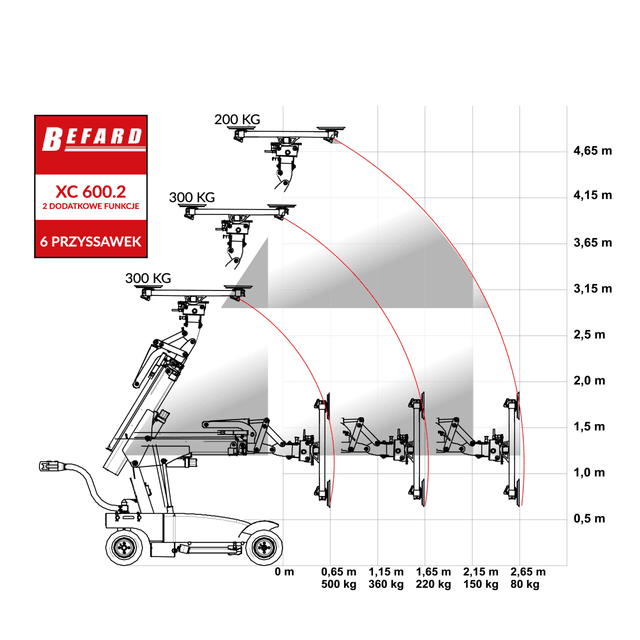

Diagram z wykresem udźwigu manipulatora XC600.2

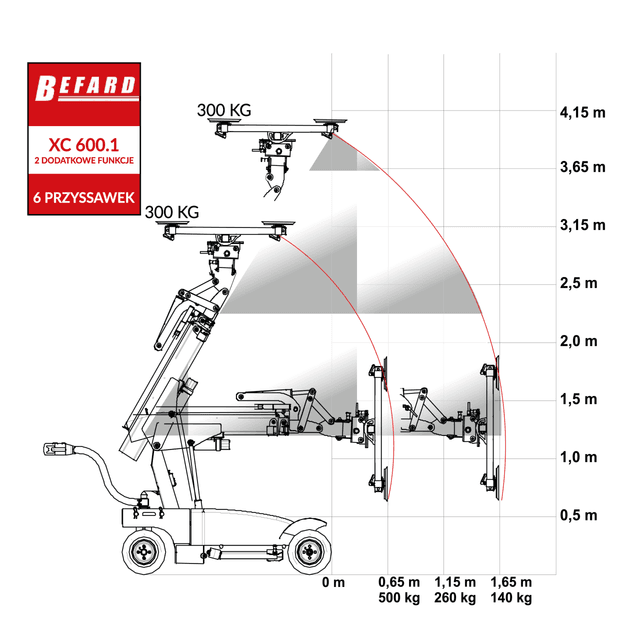

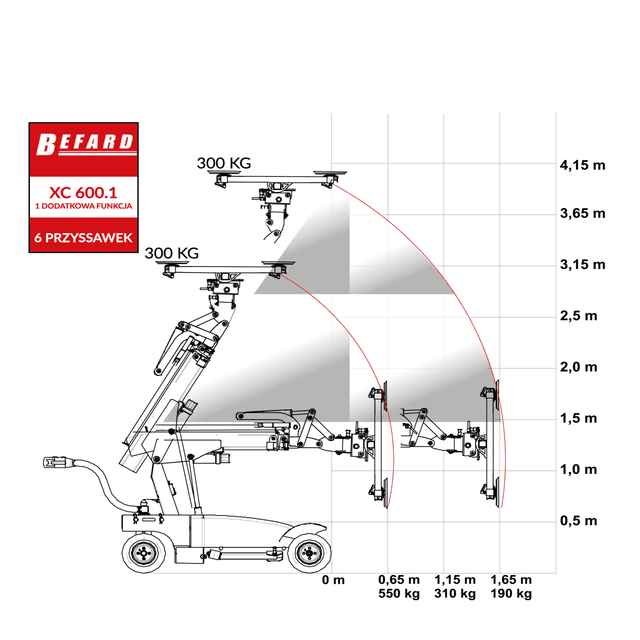

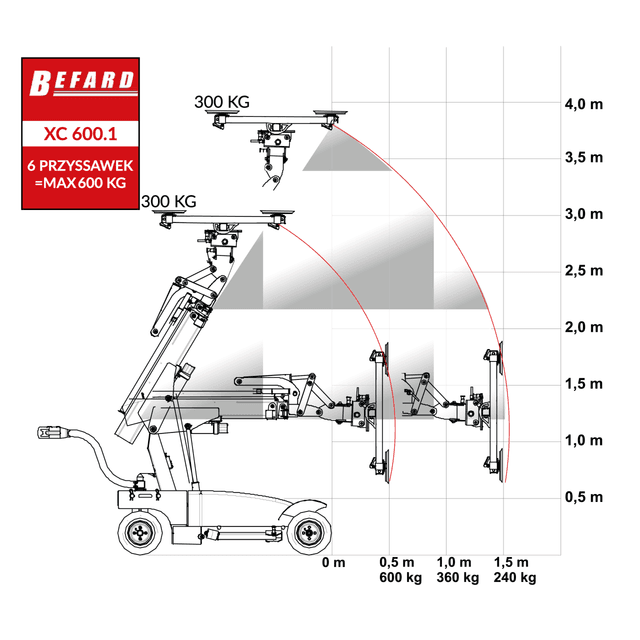

Diagram udźwigu robota montażowego do szkła BEFARD XC600.1
