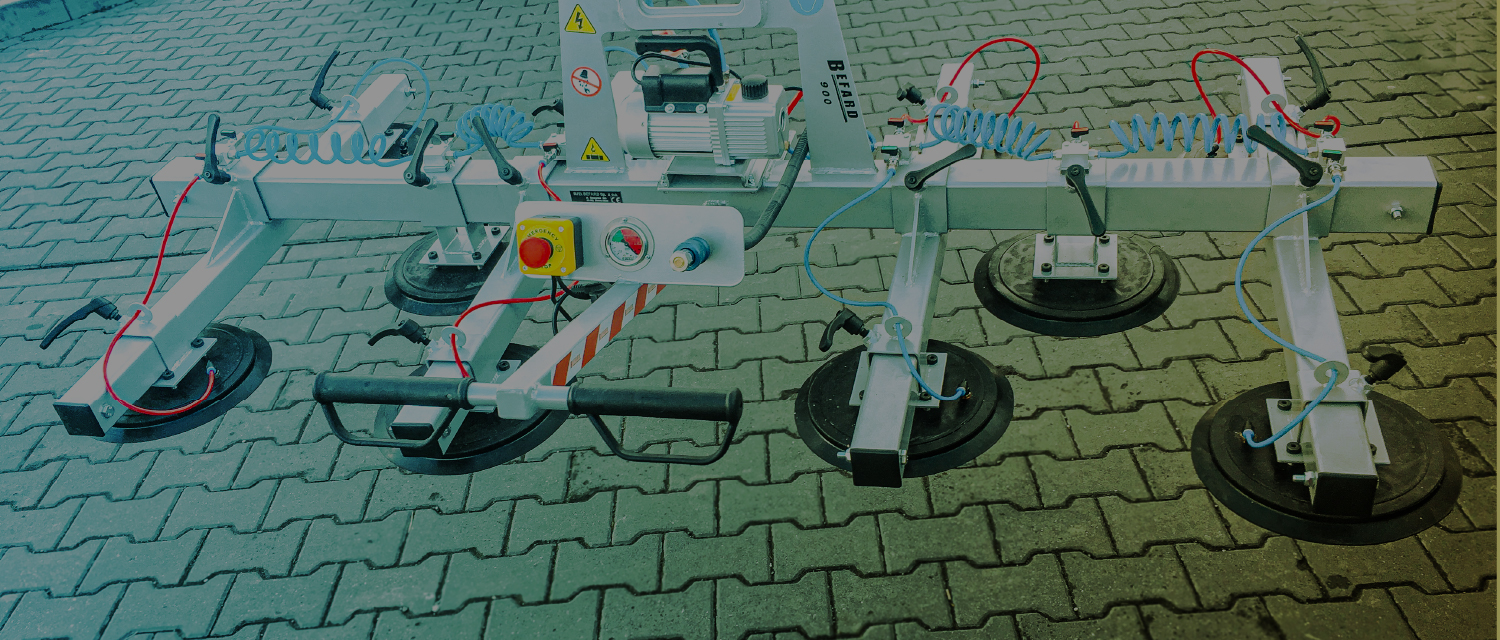

BEFARD XS 900

Designed for horizontal work. Hoisting capacity max. 900 kg. Number of suction cups: 10 pc.

The BEFARD XS is a vacuum device installed on the hook of any lifting device. The BEFARD XS 900 model allows to grip loads with a maximum weight of 900 kg.

Power supply from the mains
Horizontal working is available
Gripping of any material sheets
Quick fastening and removal of cargo
Reduced costs and increased safety
9 x Ø 310 mm suction cups (manual distance adjustment)

Specification:

 BEFARD XS 900
Number of suction cups 10 pieces
Size of suction cups Ø 310 mm
Vacuum system single circuit
Min/max vacuum -0,6 / -0,8 bar
Power supply from the mains
Hoist capacity 900 kg

The device meets the requirements of the Machinery Directive 2006/42/EC and Directive 2014/30/EU

All BEFARD devices are covered by a 12-month warranty, which can be extended to 36 months.

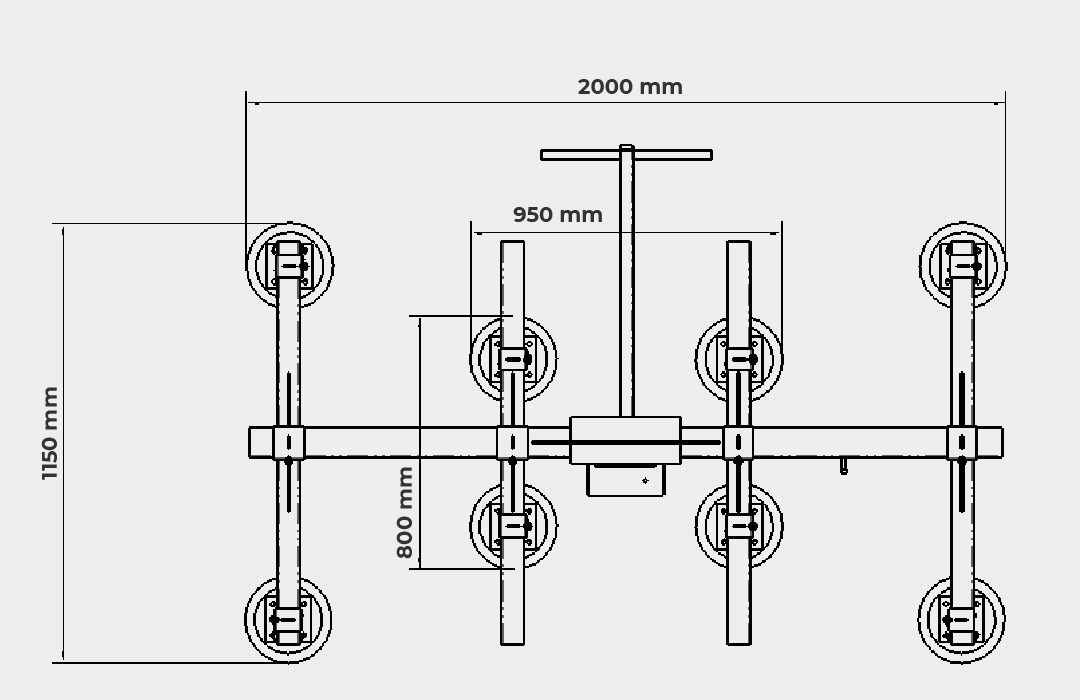

BEFARD XS 900 Technical drawings IMG 01
