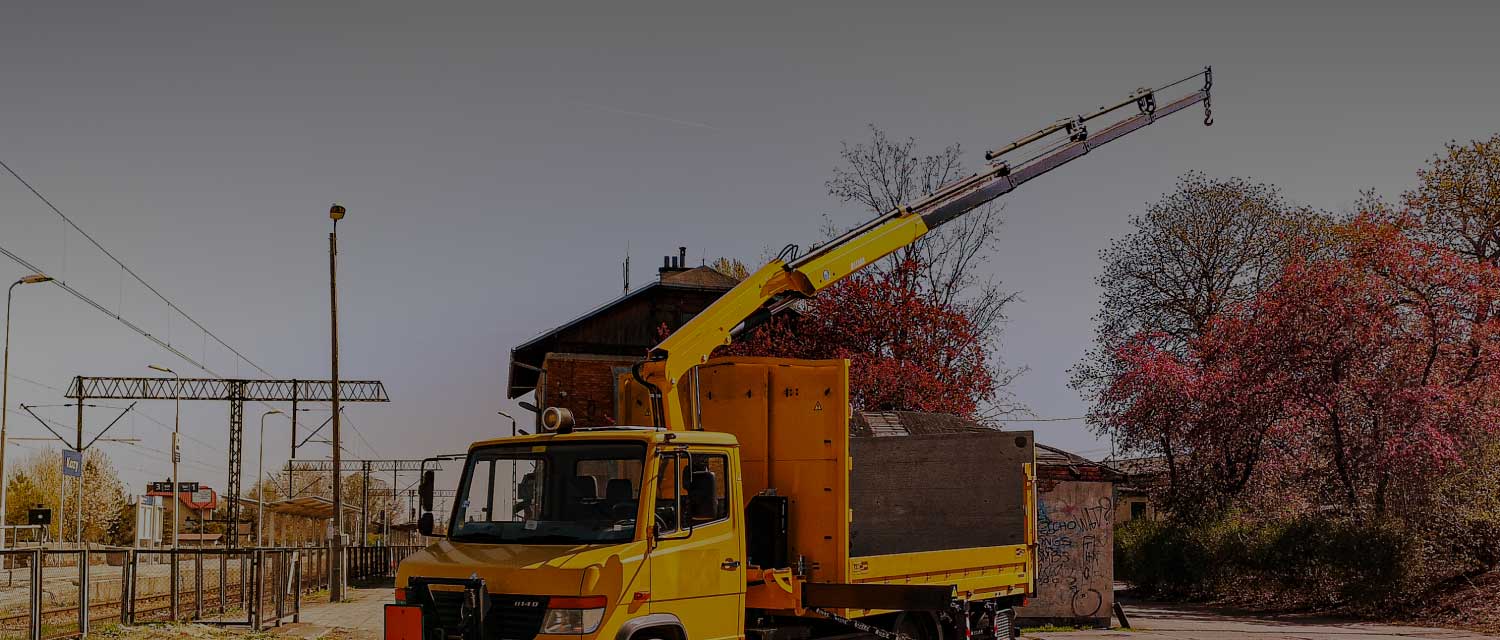

BEFARD XF is a series of double-boom loader cranes designed to be mounted on light trucks such as: Iveco 50c15, Renault Mascot and smaller HGV trucks such as Mercedes Atego, Iveco Eurocargo and others. Depending on the specific configuration, BEFARD XF cranes can be equipped with one, two, three or even four hydraulic extensions. The increased number of extensions enables the machine to work over longer distances.
Each BEFARD XF crane can be retrofitted with a wide range of different working attachments, such as:
- bulk material buckets,
- hydraulic and electric winches,
- hydraulic rotators,
- digging buckets,
- multi-purpose buckets,
- crane grab buckets,
- multi-purpose grabs and grippers.
The CE version meets the essential requirements of the Machinery Directive 2006/42/CE and Directive 2014/30/EU STOP safety switch Monoblock distributor Double-action locks for extension cylinders Reinforced hydraulic hoses Hydraulically lowered (up and down) supports on both sides Spring protections to protect the support beams against uncontrolled sliding out 5,4 t hook One side crane control Sliding sleeves made of bronze Radio controlled (optional) Specification:
BEFARD XF 9502 9502 A 9502 B 9502 C Lifting torque 9,1 tm 8,8 tm 8,5 tm 8,3 tm Maximum hoist capacity 4440 kg 4330 kg 4220 kg 4110 kg Hydraulic extension 5900 mm 7900 mm 9950 mm 12000 mm Maximum reach with manual extension 12000 mm
optional14050 mm
optional14050 mm
optional14100 mm
optionalHeight of the crane 2200 mm 2200 mm 2200 mm 2200 mm Transport width 2300 mm 2300 mm 2300 mm 2300 mm Foot extension 5400 mm 5400 mm 5400 mm 5400 mm Slewing angle 180°-390° 180°-390° 180°-390° 180°-390° Swivel torque 17,7 kNm (29 MPa) 17,7 kNm (29 MPa) 17,7 kNm (29 MPa) 17,7 kNm (29 MPa) Extension upward elevation angle 70° +16° 70° +16° 70° +16° 70° +16° Downward drop angle 65° 65° 65° 65° Working pressure 290 bar 290 bar 290 bar 290 bar Pump operating pressure 350 bar 350 bar 350 bar 350 bar Flow pump 25 l/min
required25 l/min
required25 l/min
required25 l/min
requiredWeight 1130 kg 1230 kg 1330 kg 1430 kg The device meets the requirements of the Machinery Directive 2006/42/EC and Directive 2014/30/EU
All BEFARD devices are covered by a 12-month warranty.
The warranty will not be valid if the crane uses a power supply other than that of the Binotto manufacturer (excluding electric and diesel power units).
