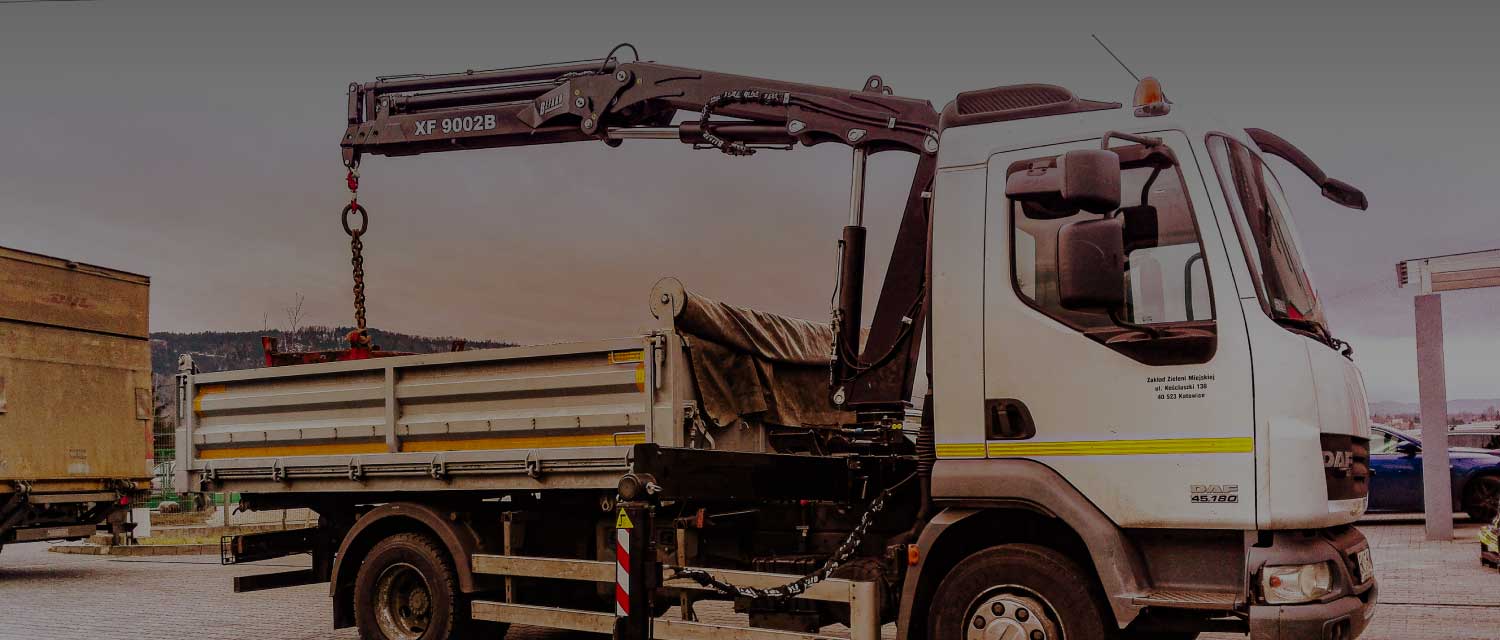

BEFARD XF is a series of double-boom loader cranes designed to be mounted on light trucks such as: Iveco 50c15, Renault Mascot and smaller HGV trucks such as Mercedes Atego, Iveco Eurocargo and others. Depending on the specific configuration, BEFARD XF cranes can be equipped with one, two, three or even four hydraulic extensions. The increased number of extensions enables the machine to work over longer distances.
Each BEFARD XF crane can be retrofitted with a wide range of different working attachments, such as:
- bulk material buckets,
- hydraulic and electric winches,
- hydraulic rotators,
- digging buckets,
- multi-purpose buckets,
- crane grab buckets,
- multi-purpose grabs and grippers.
The CE version meets the essential requirements of the Machinery Directive 2006/42/CE and Directive 2014/30/EU STOP safety switch Monoblock distributor Double-action locks for extension cylinders Reinforced hydraulic hoses Hydraulically lowered (up and down) supports on both sides Spring protections to protect the support beams against uncontrolled sliding out 5,4 t hook One side crane control Sliding sleeves made of bronze Radio controlled (optional) Specification:
BEFARD XF 9002 9002 A 9002 B 9002 C Moment únosnosti 8,5 tm 8,4 tm 8,4 tm 8,2 tm Maximálna nosnosť 4110 kg 3980 kg 3980 kg 3900 kg Hydraulický posuv 5400 mm 7250 mm 7250 mm 9100 mm Maximálny rozsah s manuálnym výsuvom 10900 mm
optional12600 mm
optional12600 mm
optional12650 mm
optionalVýška žeriavu 1970 mm 1970 mm 1970 mm 1970 mm Prepravná šírka 2200 mm 2200 mm 2200 mm 2225 mm Výsuv podpery 5400 mm 5400 mm 5400 mm 5400 mm Uhol natočenia 180°-390° 180°-390° 180°-390° 180°-390° Moment otáčania 17,7 kNm (32 MPa) 17,7 kNm (32 MPa) 17,7 kNm (32 MPa) 17,7 kNm (32 MPa) Uhol zdvihu posuvu 70° +16° 70° +16° 70° +16° 70° +16° Uhol sklonu nadol 65° 65° 65° 65° Pracovný tlak 275 bar 275 bar 275 bar 275 bar Čerpadlo pracovný tlak 350 bar 350 bar 350 bar 350 bar Prietokové čerpadlo 25 l/min
požadovaný25 l/min
požadovaný25 l/min
požadovaný25 l/min
požadovanýHmotnosť 980 kg 1050 kg 1130 kg 1200 kg The device meets the requirements of the Machinery Directive 2006/42/EC and Directive 2014/30/EU
All BEFARD devices are covered by a 12-month warranty.
The warranty will not be valid if the crane uses a power supply other than that of the Binotto manufacturer (excluding electric and diesel power units).
