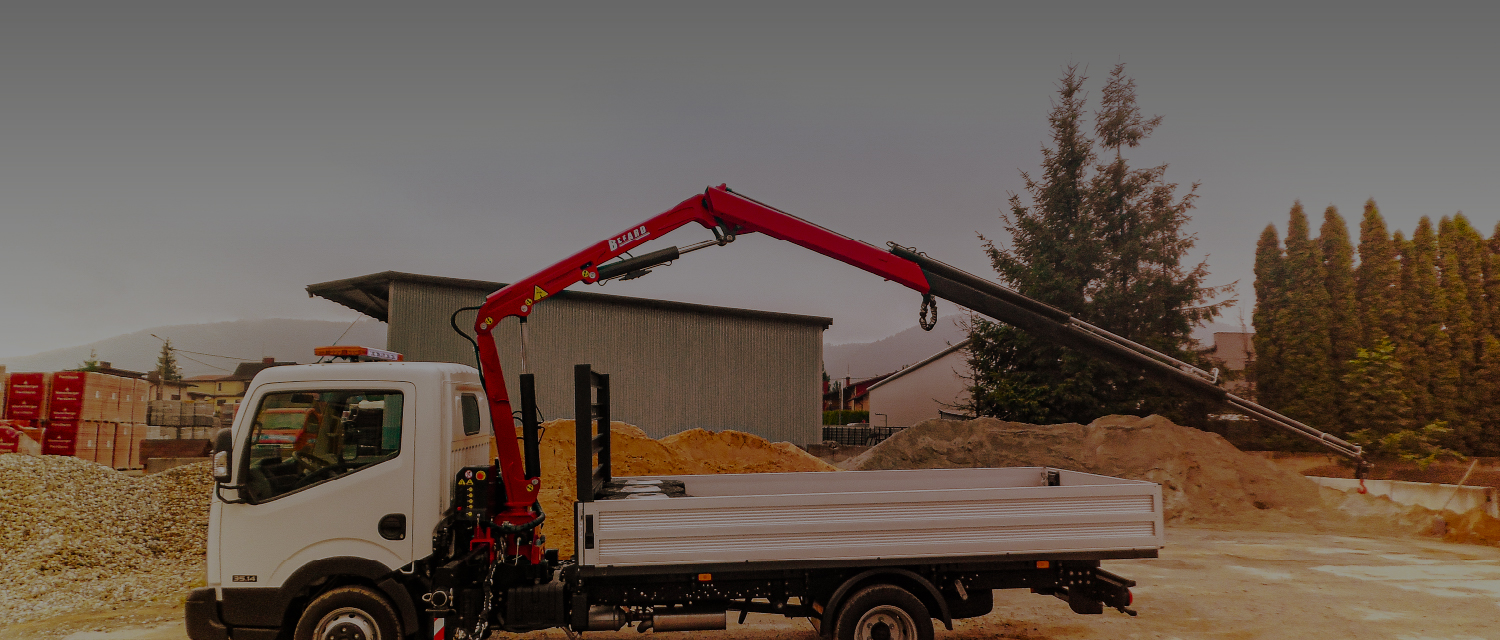

BEFARD XF is a series of double-boom loader cranes designed to be mounted on light trucks such as: Iveco 50c15, Renault Mascot and smaller HGV trucks such as Mercedes Atego, Iveco Eurocargo and others. Depending on the specific configuration, BEFARD XF cranes can be equipped with one, two, three or even four hydraulic extensions. The increased number of extensions enables the machine to work over longer distances.
Each BEFARD XF crane can be retrofitted with a wide range of different working attachments, such as:
- bulk material buckets,
- hydraulic and electric winches,
- hydraulic rotators,
- digging buckets,
- multi-purpose buckets,
- crane grab buckets,
- multi-purpose grabs and grippers.
The CE version meets the essential requirements of the Machinery Directive 2006/42/CE and Directive 2014/30/EU STOP safety switch Double-action locks for extension cylinders Reinforced hydraulic hoses Hydraulically lowered (up and down) supports on both sides Spring protections to protect the support beams against uncontrolled sliding out 2 t hook Sliding sleeves made of bronze Radio controlled Specification:
BEFARD XF 3602 3602 A 3602 B 3602 C Lifting torque 37,5 kNm 35,5 kNm 33 kNm 32 kNm Maximum hoist capacity 1700 kg 1650 kg 1600 kg 1600 kg Hydraulic extension 4850 mm 6400 mm 8000 mm 9600 mm Maximum reach with manual extension 8000 mm 9600 mm 9600 mm - Height of the crane 1700 mm 1700 mm 1700 mm 1700 mm Transport width 1850 mm 1900 mm 2000 mm 2050 mm Foot extension 4100 mm 4100 mm 4100 mm 2050 mm Slewing angle 180°-360° 180°-360° 180°-360° 180°-360° Swivel torque 5,4 kNm (18 MPa) 5,4 kNm (18 MPa) 5,4 kNm (18 MPa) 5,4 kNm (18 MPa) Extension upward elevation angle 82° 82° 82° 82° Downward drop angle 45° 45° 45° 45° Working pressure 270 bar 270 bar 270 bar 270 bar Pump operating pressure 280 bar
recommended280 bar
recommended280 bar
recommended280 bar
recommendedFlow pump 16 l/min
recommended16 l/min
recommended16 l/min
recommended16 l/min
recommendedWeight 520 kg 550 kg 585 kg 610 kg The recommended pump flow, given in the card, may change depending on the power supply and the specification of the device that will be mounted to the crane. In standard applications, this is the maximum value
The device meets the requirements of the Machinery Directive 2006/42/EC and Directive 2014/30/EU
All BEFARD devices are covered by a 12-month warranty.
The warranty will not be valid if the crane uses a power supply other than that of the Binotto manufacturer (excluding electric and diesel power units).
