BEFARD XM 800

Mini cranes on tracked chassis for indoor and outdoor use Maximum hoist capacity: 800 kg.

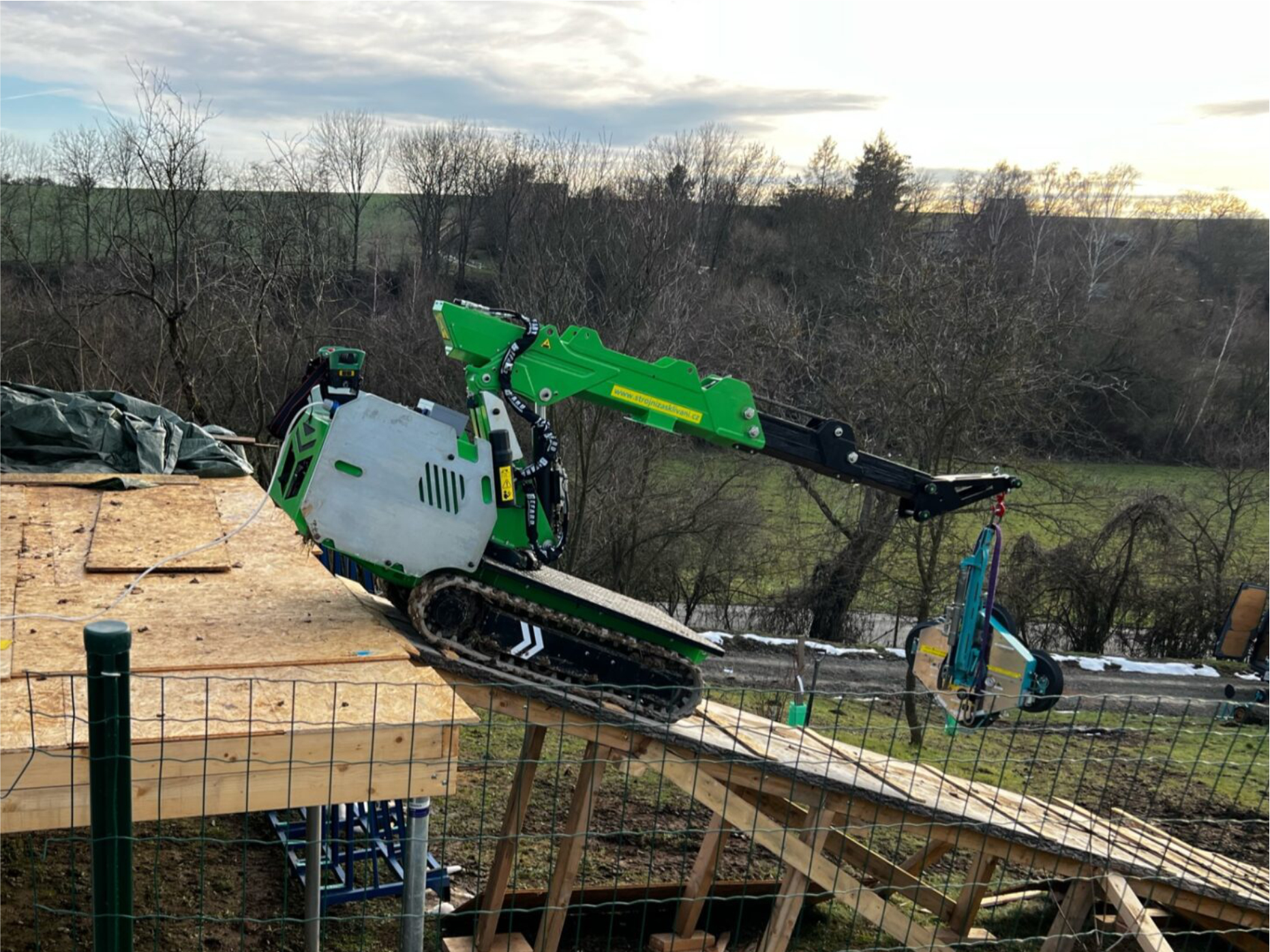

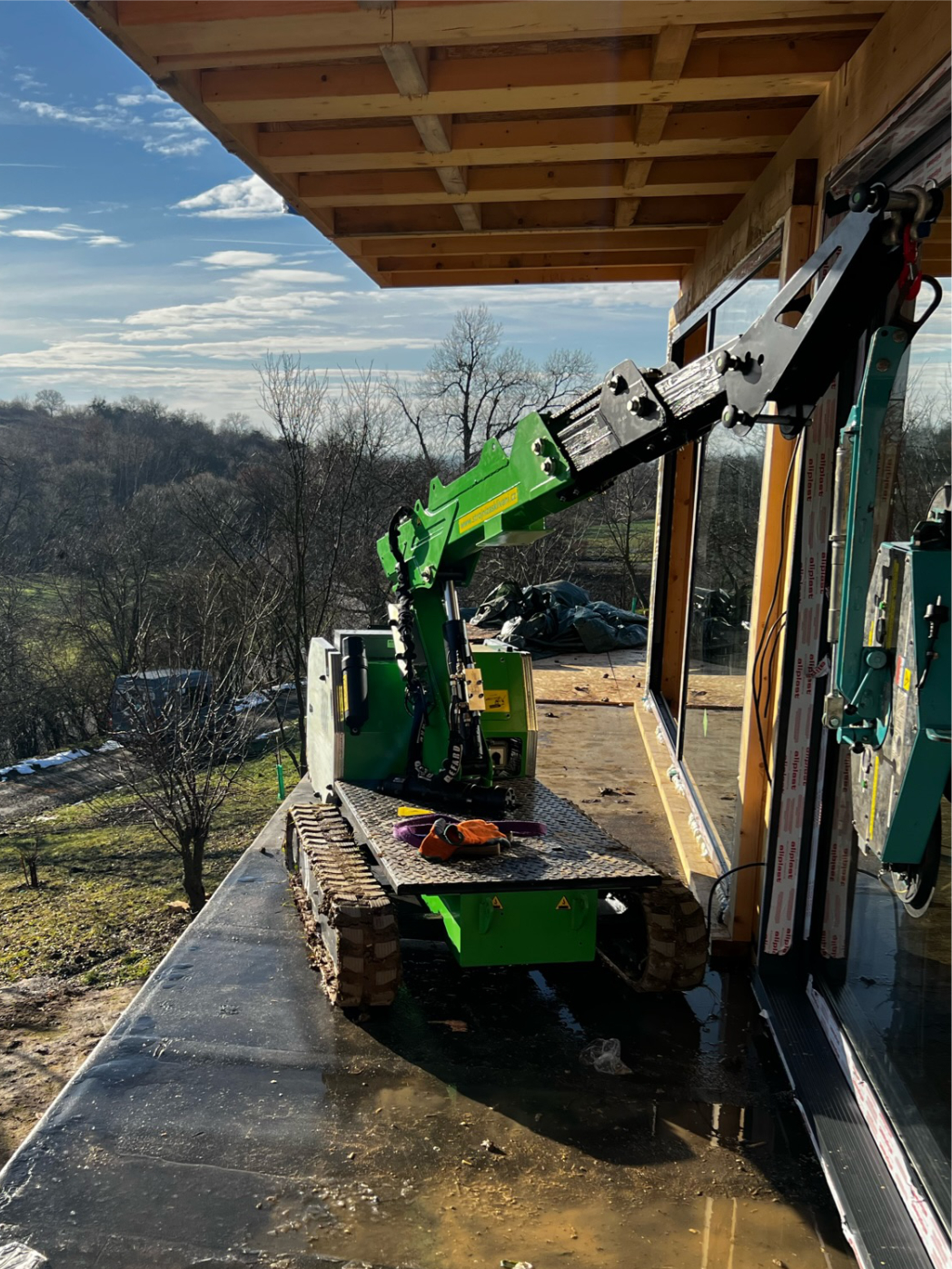

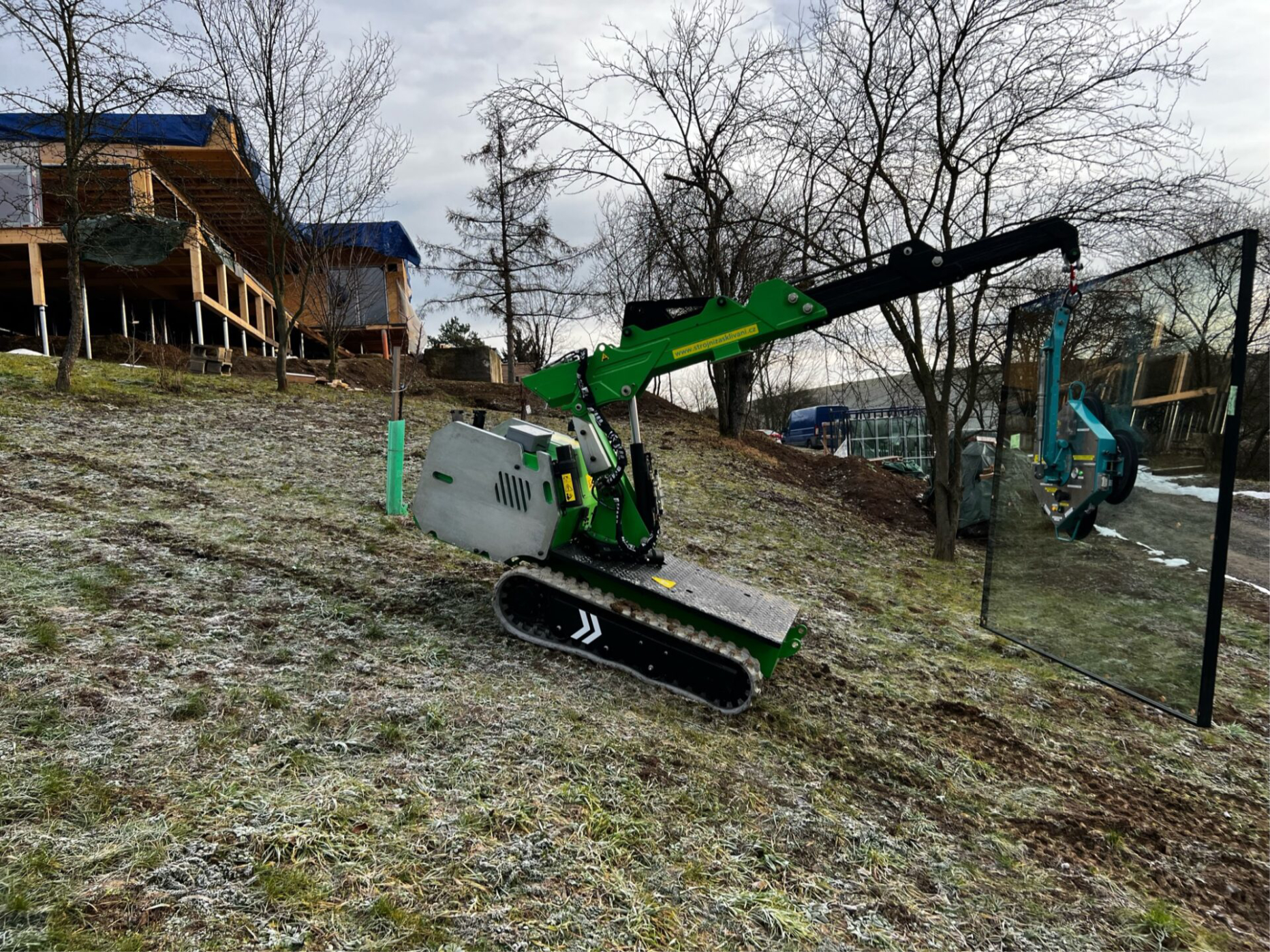

PICK and CARRY tracked mini crane with column rotation function BEFARD XM 800 radio-controlled with non-marking tracks that allow you to work indoors and outdoors, e.g. in production halls. The use of a tracked chassis enables work in difficult construction conditions.

 The unit can be retrofitted with any XP and XR series vacuum suction cup, hydraulic winch, search hook and LED lamp.

Download the  data sheet of device:

pdfBEFARD_XM_800_mini_crane_on_tracked_chassis.pdf1.85 MB

Specification:

 BEFARD XM 800
Radio control both driving and working of crane including start-stop engine
Power supply fuel, gasoline or lithium-ion batteries (optional also on-grid 230V/110V)
Maximum hoist capacity (as shown in the diagram) 800 kg
Anti-overload system yes
Hydraulic extensions
Maximum vertical outreach above
optional equipment
6,17 m
Maximum vertical outreach above 4,6 m
Maximum horizontal outreach
optional equipment
5,0 m
Maximum horizontal outreach 3,5 m
Height in the transport position 145 cm
Width of device 78 cm
Tracked chassis non-marking, extendable chassis (78-110 cm)
Rotating column rotation left and right 25° (total 50°)

The device meets the requirements of the Machinery Directive 2006/42/EC and Directive 2014/30/EU.

DIAGRAM UDZWIGU WERSJA STANDARDDIAGRAM UDZWIGU Z HAKIEM SZPERAJACYM

DIAGRAM UDZWIGU Z PRZEDLUZENIEM WYSUWUDIAGRAM UDZWIGU Z PRZEDLUZENIEM WYSUWU HAK SZPERAJACY

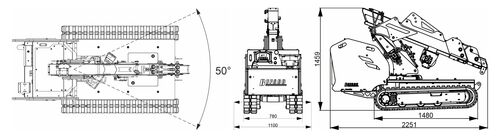

thumb Naklejki grupa

BEFARD XM 800.2BEFARD XM 800XM 800 zuraw na gasienicachBEFARD mini zuraw na podwoziu gasienicowymBEFARD XM 800 pick and carryBEFARD pick and carry
