| Power options TB 30002 |
Available Options: 3-in-1 version: Diesel engine, mains operation (230 V or 400 V), or lithium-ion battery (27 kWh) Battery-only version: Lithium-ion battery (39 kWh) |
| Maximum Lifting Capacity (per load chart) | 10,000 kg |
| Overload Protection System | Yes |
| Telescopic Extensions | 5 × hydraulic + 4 × hydraulic (JIB) |

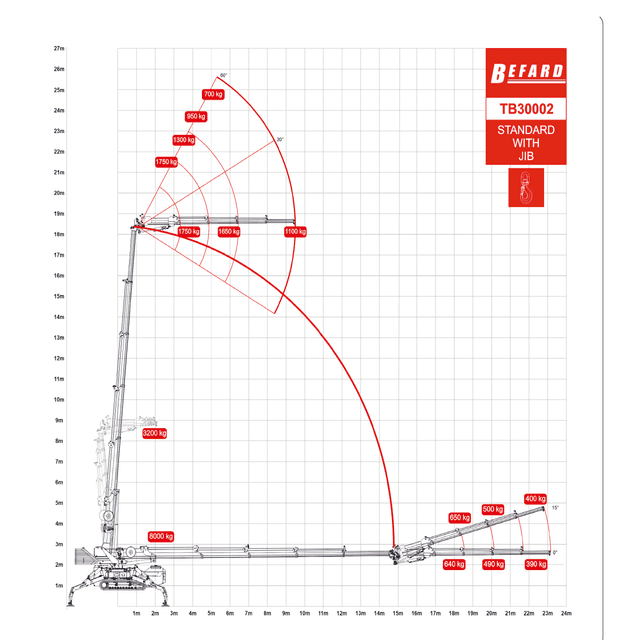

| Maximum Vertical Reach with JIB + Options | 27.2 m |
| Maximum Horizontal Reach with JIB and Options | 23.2 m |

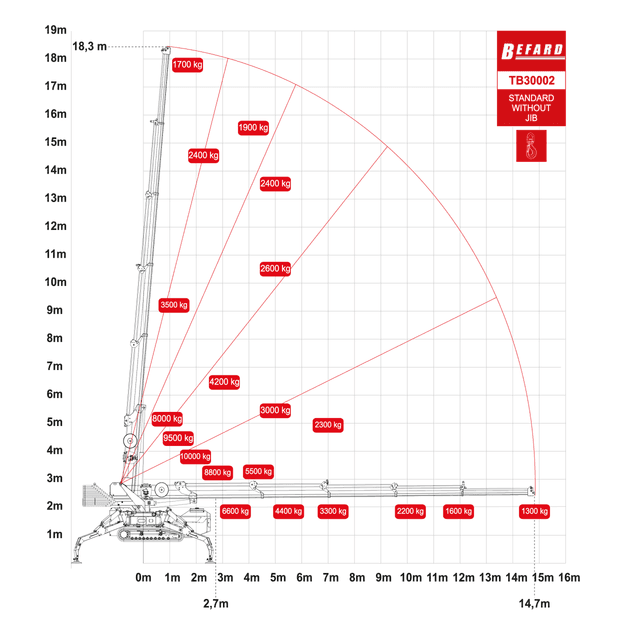

| Main boom (no JIB) vertical | 18.3 m |
| Main boom (no JIB) horizontal | 14.7 m |
| Outriggers | Automatically opened, lowered, and extended |
| Height | 2.12 m |
| Width | 1.28 m |
| Length | 4.21 m |
| Weight | ~ 10,000 kg |
Standard equipment
| Radio remote | Drive, crane, outrigger lowering |
| Electronic monitoring | Working-range & outrigger visualisation |
| Pick & carry hook | +0,5m reach |
| Main-boom searcher hook | +1 m reach |
| Sheave block for main boom | Winch work w/o JIB |
| JIB searcher hook | 6 positions, +0.5 m |
| Manual JIB to Fly-JIB link | +1m |
| JIB Boom Block | Main boom hook increases reach +1 m |
| Hydraulic JIB Hook | For use with winch when JIB is installed |
| 2000 kg Winch | Hydraulic, with rope length selectable between 70–130 m |
| LED Work Lights: | Powered directly from the machine |
